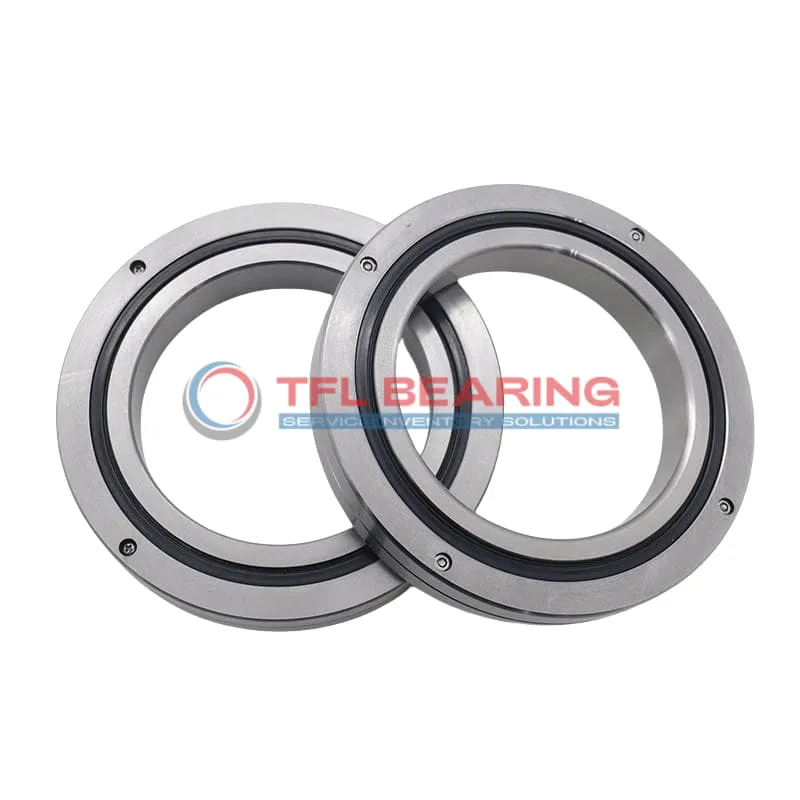

CRBC Crossed Roller Bearings CRB15025UU

CRBC Crossed Roller Bearings CRB15025UU

The CRB15025UU is a crossed roller bearing with a 150mm bore and 210mm outer diameter, designed for combined loads. Its compact 25mm width and steel construction make it sturdy yet space-efficient.

With a basic load rating of 76.8 kN, it handles heavy loads smoothly, while the double seals keep contaminants out. The bearing operates in temperatures from 0°C to 110°C, suitable for various environments.

The press-fit shaft mount ensures secure installation, and its ABEC5 precision (upgradable to ABEC7/9) offers reliable performance. Weighing 3.16kg, it’s robust for industrial use.

Ideal for robotics, medical equipment, or rotary tables where precision and durability are key. Compliant with RoHS and REACH standards for safe operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRB15025UU
  • Brand TFL
  • Size 150 mm x 210 mm x 25 mm
  • Bore Dia 150 mm
  • Outer Dia 210 mm
  • Width 25 mm
  • R(min) 1.5 mm
  • Shoulder Height Ds(max) 164 mm
  • Shoulder Height Dh(min) 194 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 76.8 kN
  • Basic Load Rating Co 128 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.16 Kg

Features

How Does CRB15025UU Bearing Handle Combined Loads?

CRB15025UU Bearing is built with a single-row crossed roller design, ideal for handling combined loads efficiently.
Its steel rings and rollers provide a basic load rating of 76.8 kN, ensuring strength and durability.

The double-seal construction protects against contaminants, making it suitable for demanding environments.
With a temperature range of 0-230°F, CRB15025UU Bearing performs reliably in various conditions.

The press-fit shaft mount simplifies installation, reducing setup time and effort.
Its ABEC5 rating (with options for ABEC7/9) ensures precision for high-performance applications.

Application

Industrial Uses of CRB15025UU Bearing
CRB15025UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The double seal helps keep contaminants out, ensuring long service life in dusty workshop conditions.

Where Is CRB15025UU Bearing Used?
You’ll often find CRB15025UU Bearing in robotic arms, where its compact 25mm width saves space while handling combined loads. The press-fit mounting makes installation straightforward for automation engineers.

Built for Heavy-Duty Use: CRB15025UU Bearing
CRB15025UU Bearing handles heavy loads in conveyor systems, with its steel construction standing up to continuous operation. The ABEC5 precision rating ensures smooth movement for material handling equipment.

Medical vs Industrial: Where CRB15025UU Bearing Excels
In medical scanners, CRB15025UU Bearing offers precise movement thanks to its crossed roller arrangement. For industrial uses, the 150mm bore size makes it suitable for larger rotating assemblies.

Perfect Fit for Automation: CRB15025UU Bearing
CRB15025UU Bearing works well in 3D printers, providing accurate linear motion control. The temperature range up to 230°F allows reliable performance in various operating conditions.
