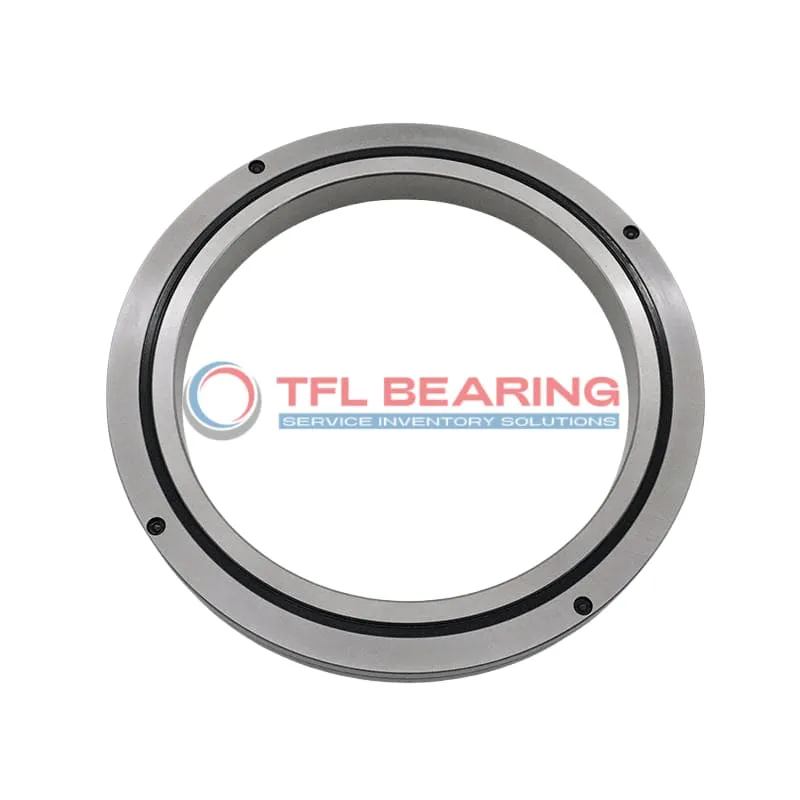

CRBC Crossed Roller Bearings CRB10020

CRBC Crossed Roller Bearings CRB10020

The CRB10020 is a crossed roller bearing with a 100mm bore and 150mm outer diameter, compact at just 20mm wide. Made from sturdy steel, it handles combined loads up to 33.1 kN, making it a reliable choice for precision applications.

Its single-row design with open construction allows for easy lubrication, ensuring smooth operation. The bearing operates well in temperatures ranging from 0°C to 110°C, suitable for various industrial environments.

With a press-fit shaft mount, it stays securely in place during use. The ABEC5 rating (also available in ABEC7/9) ensures high precision, ideal for robotics or CNC machinery.

Weighing 1.45kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable option for demanding setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRB10020
  • Brand TFL
  • Size 100 mm x 150 mm x 20 mm
  • Bore Dia 100 mm
  • Outer Dia 150 mm
  • Width 20 mm
  • R(min) 1 mm
  • Shoulder Height Ds(max) 113 mm
  • Shoulder Height Dh(min) 133 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 33.1 kN
  • Basic Load Rating Co 50.9 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.45 Kg

Features

Performance Features of CRB10020 Bearing

CRB10020 Bearing features a crossed roller design, ideal for handling combined loads with precision.
Its steel rings and rollers provide a basic load rating of 33.1 kN, ensuring reliable performance.

The compact 20 mm width and 1 mm chamfer allow for easy integration into tight spaces.
With a temperature range of 0-230°F, CRB10020 Bearing operates effectively in various conditions.

CRB10020 Bearing’s press-fit shaft mount simplifies installation, saving time and effort.
Its ABEC5 rating (with optional ABEC7/9) ensures smooth operation for high-precision applications.

Application

Industrial Uses of CRB10020 Bearing
CRB10020 Bearing is commonly used in machine tools, where its crossed roller design handles combined loads with precision. The steel construction ensures durability in high-stress environments.

In robotics, CRB10020 Bearing provides smooth rotation for articulated arms, thanks to its ABEC5 precision rating. Its compact width of 20 mm makes it ideal for space-constrained applications.

For medical imaging devices, CRB10020 Bearing offers reliable performance due to its consistent load distribution. The press-fit mounting simplifies installation in sensitive equipment.

Automotive applications like steering systems benefit from CRB10020 Bearing’s ability to manage both radial and axial forces. The metric sizing ensures compatibility with various vehicle designs.

In 3D printers, CRB10020 Bearing ensures accurate movement of print heads, supported by its high basic load rating. The open design allows for easy lubrication maintenance.
