Needle Roller And Cage Assemblies K80X88X30

Needle Roller And Cage Assemblies K80X88X30

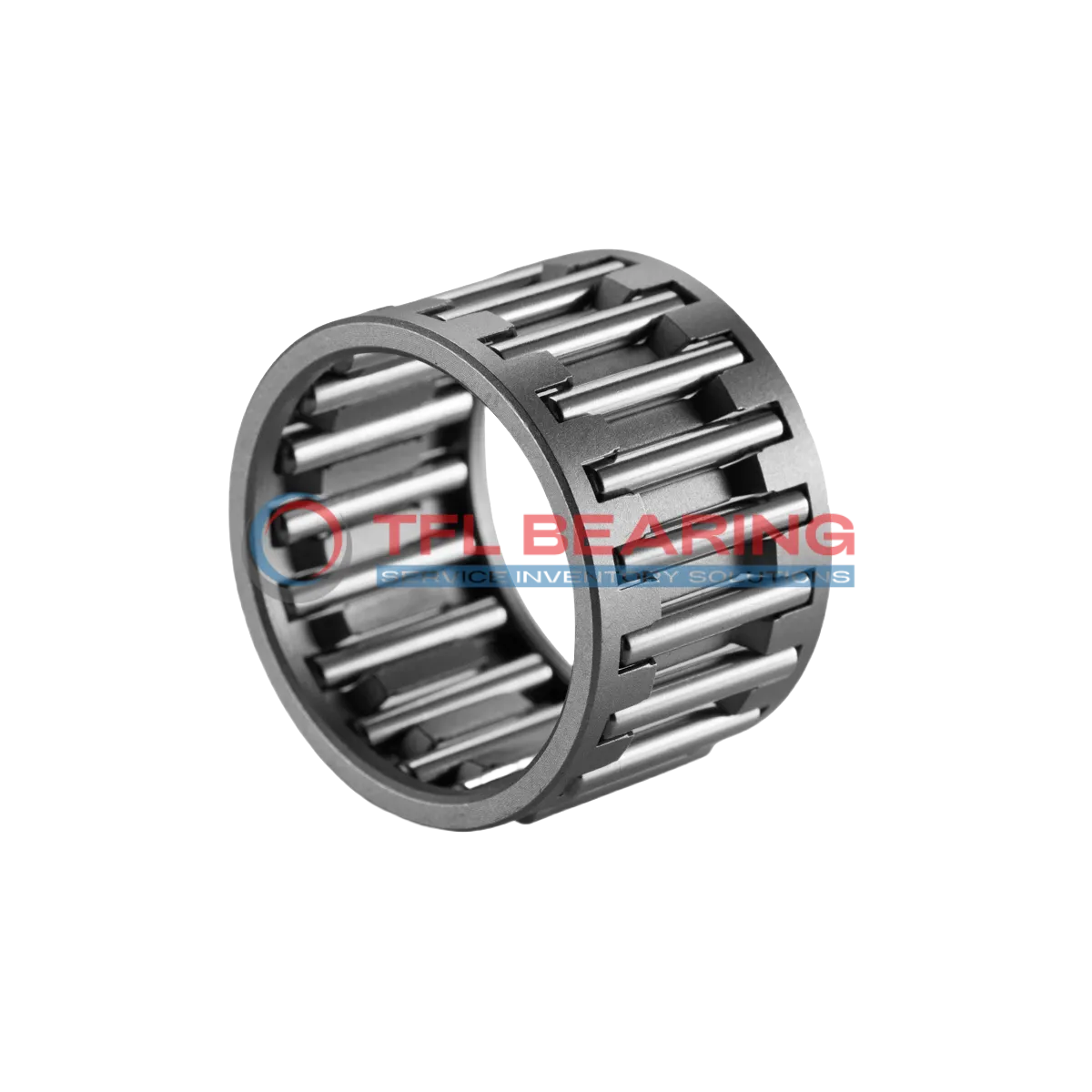

The K80X88X30 is a needle roller and cage assembly with an 80mm bore and 88mm outer diameter, built from sturdy steel. It handles radial loads up to 15975 lbf and operates smoothly at speeds up to 5800 RPM.
Its single-row design with a steel cage offers reliable performance in compact spaces. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like transmissions or industrial equipment where space is limited but high load capacity is needed.
Weighing just 138g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K80X88X30
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 80 mm
  • Outer Dia 88 mm
  • Width 30 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 15975 lbf
  • Static Radial Load 39600 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 5800 rpm
  • Weight 138 g
Needle Roller And Cage Assemblies K80X88X30 dimension drawing
Download DWG Download PDF

Features

Why Choose K80X88X30 Bearing for Precision Tasks?
K80X88X30 Bearing features a steel cage and needles, ensuring high precision and durability in demanding applications.
Its dynamic radial load capacity of 15975 lbf makes it suitable for heavy-duty operations.
The compact design of K80X88X30 Bearing allows for efficient space utilisation without compromising performance.
With a maximum speed of 5800 rpm, it delivers reliable operation in high-speed environments.
K80X88X30 Bearing operates within a temperature range of -30° to 110°C, adapting to various working conditions.
Its single-row construction ensures smooth and consistent performance over time.

Application

Key Fields for K80X88X30 Bearing
K80X88X30 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, K80X88X30 Bearing fits well in transmission systems, providing smooth rotation under heavy radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K80X88X30 Bearing offers reliable performance in robotic arms and conveyor systems. The high-speed capability up to 5800 rpm ensures efficiency in continuous operations.
Medical devices like imaging equipment benefit from K80X88X30 Bearing’s precision and stability. The steel needles and cage provide long-lasting performance in critical applications.
In household appliances, K80X88X30 Bearing can be found in washing machines and power tools. Its robust design handles frequent use without compromising performance.
