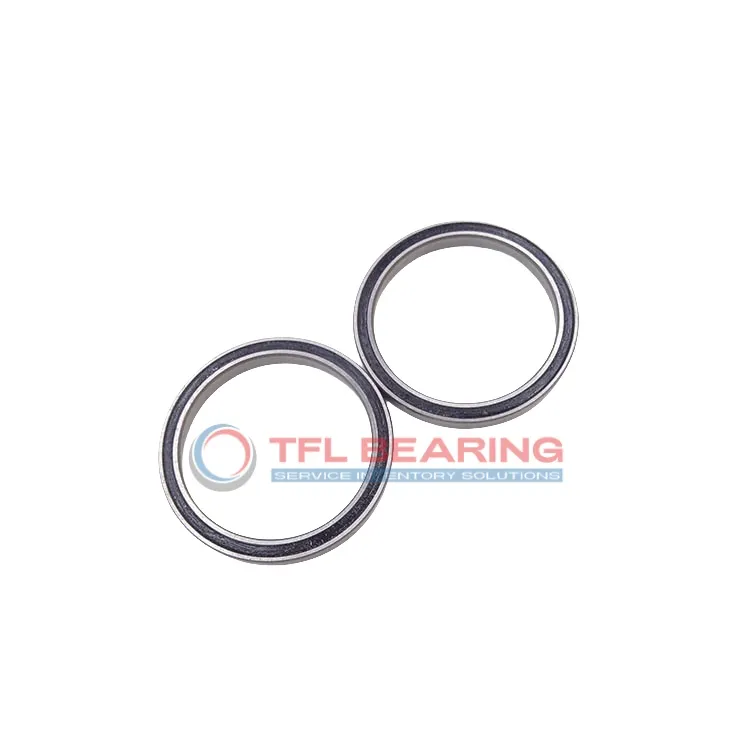

Constant Section (CS) Bearings XC045CP0

Constant Section (CS) Bearings XC045CP0

The XC045CP0 is a slim, open-type ball bearing measuring 4.5″ in bore and 5.25″ in outer diameter, with a compact width of just 0.375″. Made from chrome steel with a brass cage, it’s built for radial loads up to 1143 lbf.

Its thin-section design makes it ideal for space-constrained applications, while the ABEC-1 tolerance ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, offering a practical replacement option. Perfect for use in machinery where slim profiles and radial load handling are key.

Weighing only 0.48 lbs, it’s lightweight yet durable. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number XC045CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 4.5"
  • Bore Dia Tolerance -0.0008"– 0"
  • Outer Dia 5.25"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.375"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Open Bearings
  • Series KC 3/8" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 4.777"
  • Internal Diameter On Outer Ring (Small Side Face) 4.973"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1143 lbf
  • Static Radial Load 2340 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 2418 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.48 lbs
  • price（$） 101.99
Constant Section (CS) Bearings XC045CP0 dimension drawing
Download DWG Download PDF

Features

How Does XC045CP0 Bearing Reduce Friction?

XC045CP0 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The brass cage maintains proper ball alignment, enhancing efficiency and reducing wear over time.
With a dynamic radial load capacity of 1143 lbf, it handles moderate loads reliably.
Its ABEC-1 tolerance class ensures consistent performance in precision applications.

Application

Common Applications of XC045CP0 Bearing
XC045CP0 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery where its thin section design saves space without compromising performance. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

In aerospace applications, XC045CP0 Bearing provides reliable radial load support in control systems and instrumentation. Its chrome steel construction offers durability while maintaining lightweight properties, crucial for aircraft components.

For medical imaging devices, XC045CP0 Bearing’s brass cage and precise tolerances ensure smooth, quiet operation. The ABEC-1 tolerance class makes it suitable for equipment where consistent rotation is essential.

In packaging machinery, XC045CP0 Bearing handles radial loads efficiently, contributing to smoother conveyor operations. Its inch sizing makes it compatible with a variety of North American industrial equipment.

XC045CP0 Bearing also finds use in semiconductor manufacturing equipment, where its thin profile and reliability are valued. The temperature range of -30°C to 110°C ensures performance in varied environments.
