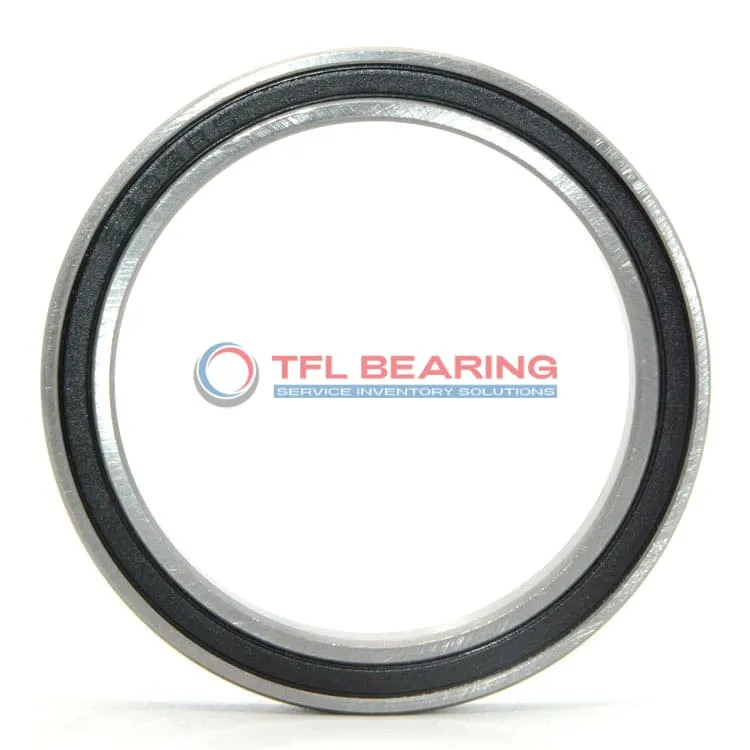

Constant Section (CS) Bearings WB035CP0

Constant Section (CS) Bearings WB035CP0

The WB035CP0 is a slim, sealed ball bearing measuring 3.5″ in bore and 4.125″ in outer diameter, with a compact width of just 0.3125″. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

This bearing handles radial loads up to 767 lbf and is pre-lubricated for smooth operation. Its sealed design keeps dirt out and maintains lubrication, making it low-maintenance.

With an ABEC-1 tolerance class, it provides reliable performance for general applications. The thin section design saves space without sacrificing strength.

Ideal for use in machinery where space is limited, such as robotics or medical equipment. It’s interchangeable with KAYDON bearings, offering flexibility for replacements. Works in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number WB035CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 3.5"
  • Bore Dia Tolerance -0.0008"– 0"
  • Outer Dia 4.125"
  • Outer Dia Tolerance -0.0006"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 3.699"
  • Internal Diameter On Outer Ring (Small Side Face) 3.925"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 767 lbf
  • Static Radial Load 1540 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1743 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.27 lbs
  • price（$） 330.56
Constant Section (CS) Bearings WB035CP0 dimension drawing
Download DWG Download PDF

Features

Why Choose WB035CP0 Bearing for Precision Tasks?

WB035CP0 Bearing features a stainless steel construction, ensuring resistance to corrosion and wear.
Its sealed design keeps contaminants out, making it ideal for precision applications.
With a dynamic radial load capacity of 767 lbf, it handles demanding radial loads efficiently.
The ABEC-1 tolerance class ensures consistent performance in various operating conditions.

Application

Common Applications of WB035CP0 Bearing
WB035CP0 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery where its slim design saves space without compromising performance. The sealed construction keeps contaminants out, ensuring long service life.

In medical imaging devices, WB035CP0 Bearing’s stainless steel build offers corrosion resistance, crucial for maintaining hygiene and reliability. Its ABEC-1 tolerance provides smooth rotation, essential for accurate diagnostics.

For aerospace applications, WB035CP0 Bearing handles radial loads in control systems, where its lightweight design and durability are key. The inch sizing makes it compatible with many North American aircraft components.

Where Is WB035CP0 Bearing Used?
You’ll often find WB035CP0 Bearing in packaging machines, where its thin section design fits into tight spaces while handling moderate radial loads. The sealed type also protects against dust and debris in busy production lines.

In laboratory equipment, WB035CP0 Bearing’s stainless steel materials prevent contamination, making it ideal for sensitive environments. Its consistent performance ensures reliable operation in centrifuges and other precision instruments.

Built for Heavy-Duty Use: WB035CP0 Bearing
WB035CP0 Bearing works well in conveyor systems, where its robust construction handles continuous radial loads. The lubricated design reduces friction, extending maintenance intervals in demanding industrial settings.

For food processing machinery, WB035CP0 Bearing’s sealed and stainless steel features meet hygiene standards. Its slim profile fits into compact designs, perfect for mixers and sorting equipment.

Automotive vs Aerospace: Applications of WB035CP0 Bearing
In automotive steering systems, WB035CP0 Bearing provides smooth rotation with its precise ABEC-1 tolerance. The inch measurements ensure easy integration into various vehicle models.

For aerospace actuators, WB035CP0 Bearing’s lightweight and durable build supports reliable performance. Its corrosion-resistant materials withstand harsh environmental conditions.
