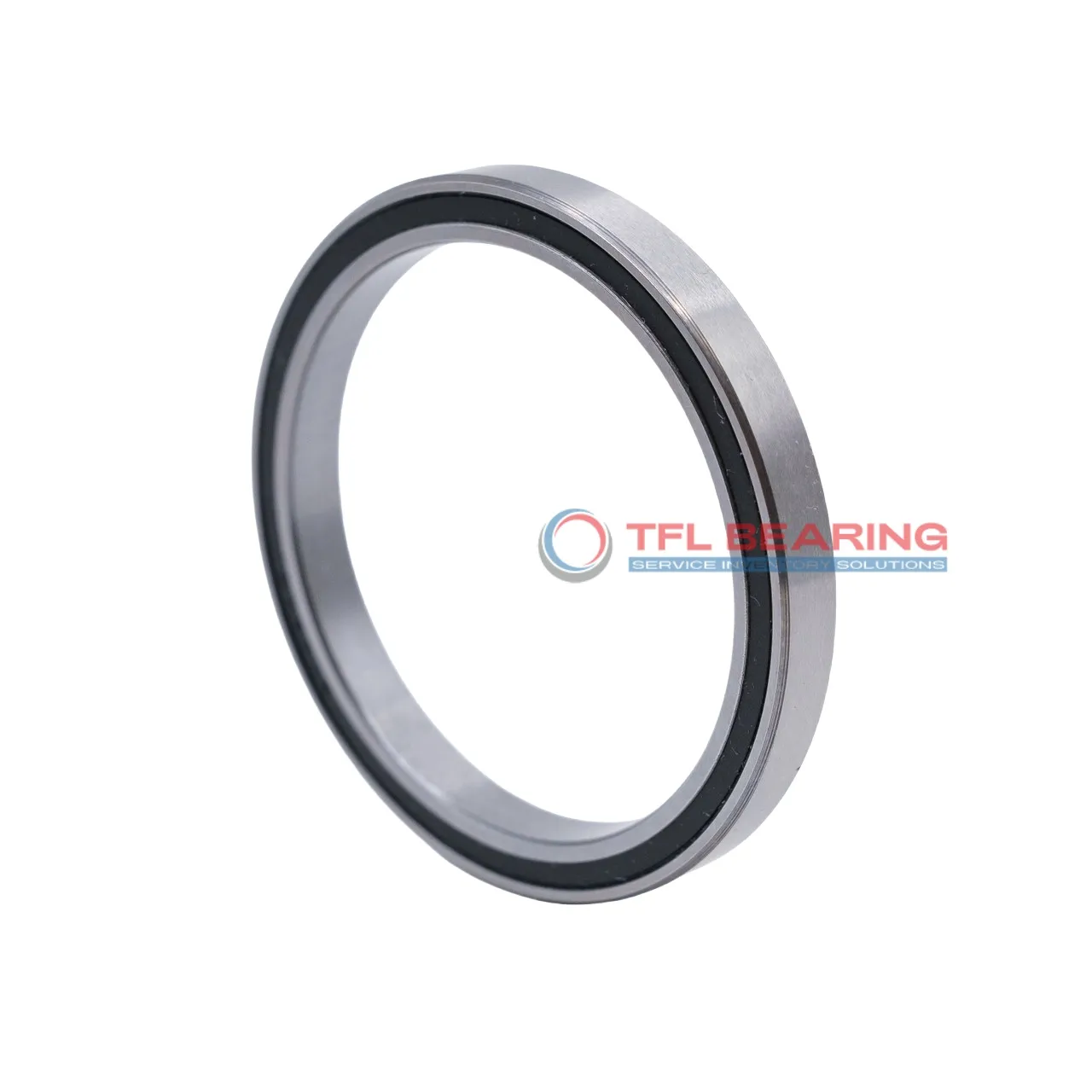

Constant Section (CS) Bearings WB025CP0

Constant Section (CS) Bearings WB025CP0

The WB025CP0 is a slim, sealed ball bearing measuring 2.5″ in bore and 3.125″ in outer diameter, with a compact width of just 0.3125″. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

This single-row bearing handles radial loads up to 644 lbf and is pre-lubricated for smooth operation. Its sealed design keeps contaminants out while maintaining performance in temperatures from -30°C to 110°C.

With ABEC-1 tolerance and minimal radial clearance, it provides reliable precision for light-duty applications. The thin-section design saves space without sacrificing strength.

Ideal for use in small machinery or medical equipment where compact size matters. Weighing only 0.19 lbs, it’s easy to handle and install. Compliant with RoHS standards for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number WB025CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 2.5"
  • Bore Dia Tolerance -0.0006"– 0"
  • Outer Dia 3.125"
  • Outer Dia Tolerance -0.0005"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 2.699"
  • Internal Diameter On Outer Ring (Small Side Face) 2.925"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 644 lbf
  • Static Radial Load 1140 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1549 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.19 lbs
  • price（$） 480
Constant Section (CS) Bearings WB025CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of WB025CP0 Bearing

WB025CP0 Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion and wear.
Its dynamic radial load capacity of 644 lbf ensures reliable performance in various applications.
The sealed design keeps contaminants out, making it suitable for dusty or humid environments.
With a temperature range of -30°C to 110°C, it performs well in diverse conditions.

Application

Industrial Uses of WB025CP0 Bearing
WB025CP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin-section design saves space without compromising performance. The sealed construction helps keep contaminants out, ensuring longer service life.

Where Is WB025CP0 Bearing Used?
You’ll often find WB025CP0 Bearing in medical imaging devices, where its stainless steel construction resists corrosion and maintains smooth operation. Its ABEC-1 tolerance makes it reliable for applications requiring consistent precision.

Built for Heavy-Duty Use: WB025CP0 Bearing
WB025CP0 Bearing handles radial loads effortlessly in conveyor systems, thanks to its dynamic load capacity of 644 lbf. The inch sizing makes it a go-to choice for North American machinery designs.

Automotive vs Aerospace: Applications of WB025CP0 Bearing
In automotive steering systems, WB025CP0 Bearing provides smooth rotation, while in aerospace, its lightweight design is ideal for instrumentation panels. The stainless steel materials ensure durability in both environments.

Perfect Fit for Automation: WB025CP0 Bearing
WB025CP0 Bearing works well in 3D printers and CNC machines, where its slim profile and sealed design reduce maintenance needs. The lubricated balls ensure quiet operation even during prolonged use.
