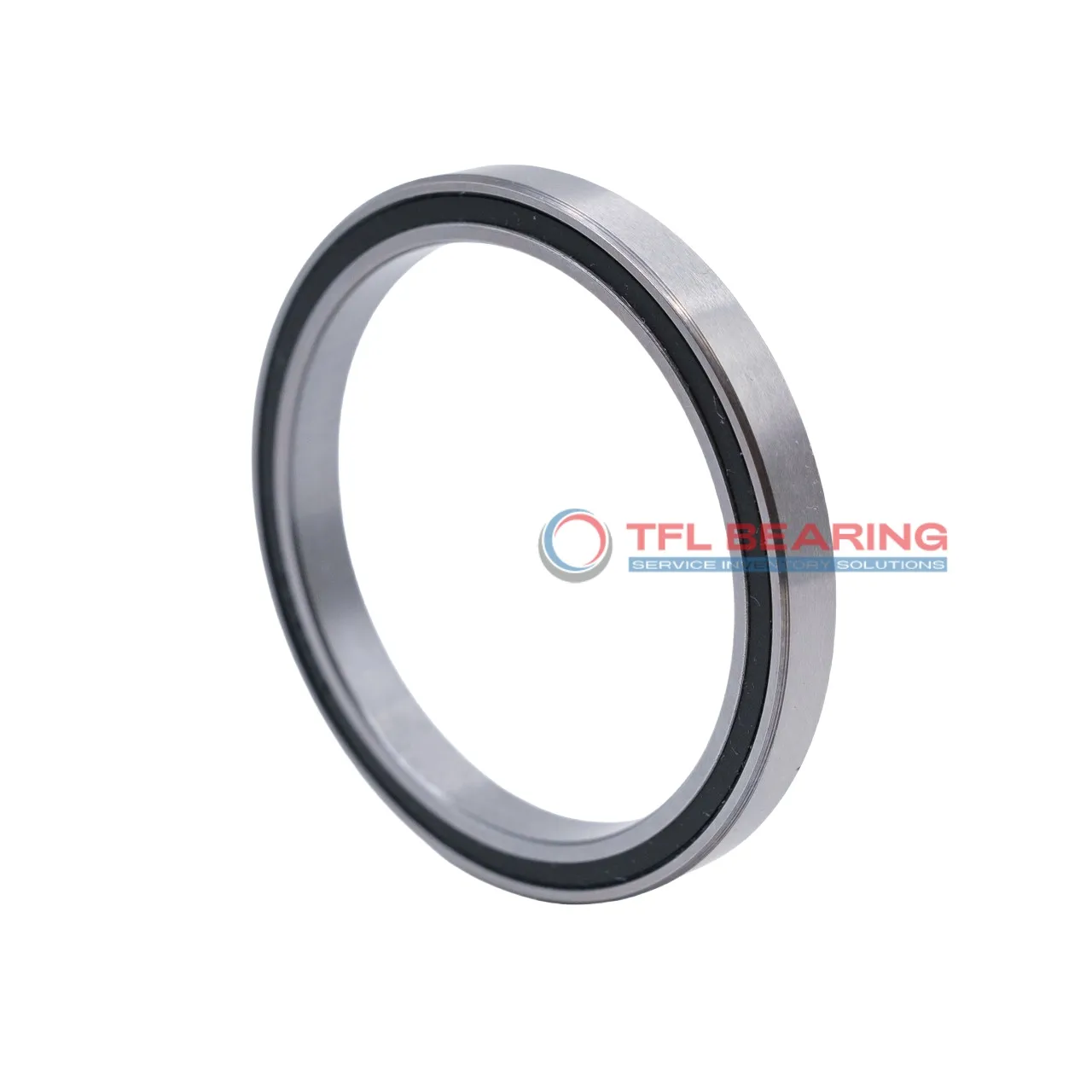

Constant Section (CS) Bearings WA020CP0

Constant Section (CS) Bearings WA020CP0

How Is WA020CP0 Bearing Engineered for Reliability?

WA020CP0 Bearing features a sealed design, protecting it from dust and moisture in various environments.
Its stainless steel construction ensures resistance to corrosion, making it suitable for long-term use.

The thin-section design of WA020CP0 Bearing allows for space-saving installations without compromising strength.
With a dynamic radial load capacity of 393 lbf, it handles moderate loads efficiently.

WA020CP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class ensures consistent performance in precision applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number WA020CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 2"
  • Bore Dia Tolerance -0.0006"– 0"
  • Outer Dia 2.5"
  • Outer Dia Tolerance -0.0005"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series WA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 2.148"
  • Internal Diameter On Outer Ring (Small Side Face) 2.356"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 393 lbf
  • Static Radial Load 680 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1012 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.1 lbs
  • price（$） 189.4
Constant Section (CS) Bearings WA020CP0 dimension drawing
Download DWG Download PDF

Features

Where Is WA020CP0 Bearing Used?
WA020CP0 Bearing is commonly found in robotics, especially in compact robotic arms where its thin section design saves space without sacrificing performance. The sealed construction keeps out dust and debris, making it ideal for cleanroom environments.

In aerospace applications, WA020CP0 Bearing provides reliable radial load support in control systems and instrumentation. Its stainless steel construction ensures corrosion resistance, even in challenging conditions.

For medical devices like surgical tools, WA020CP0 Bearing offers smooth, precise movement due to its ABEC-1 tolerance. The lubricated design reduces friction, ensuring quiet operation during delicate procedures.

In consumer electronics, WA020CP0 Bearing is used in high-precision components like camera gimbals. Its lightweight design and durability make it a practical choice for portable devices.

Application

Where Is WA020CP0 Bearing Used?
WA020CP0 Bearing is commonly found in robotics, especially in compact robotic arms where its thin section design saves space without sacrificing performance. The sealed construction keeps out dust and debris, making it ideal for cleanroom environments.

In aerospace applications, WA020CP0 Bearing provides reliable radial load support in control systems and instrumentation. Its stainless steel construction ensures corrosion resistance, even in challenging conditions.

For medical devices like surgical tools, WA020CP0 Bearing offers smooth, precise movement due to its ABEC-1 tolerance. The lubricated design reduces friction, ensuring quiet operation during delicate procedures.

In consumer electronics, WA020CP0 Bearing is used in high-precision components like camera gimbals. Its lightweight design and durability make it a practical choice for portable devices.
