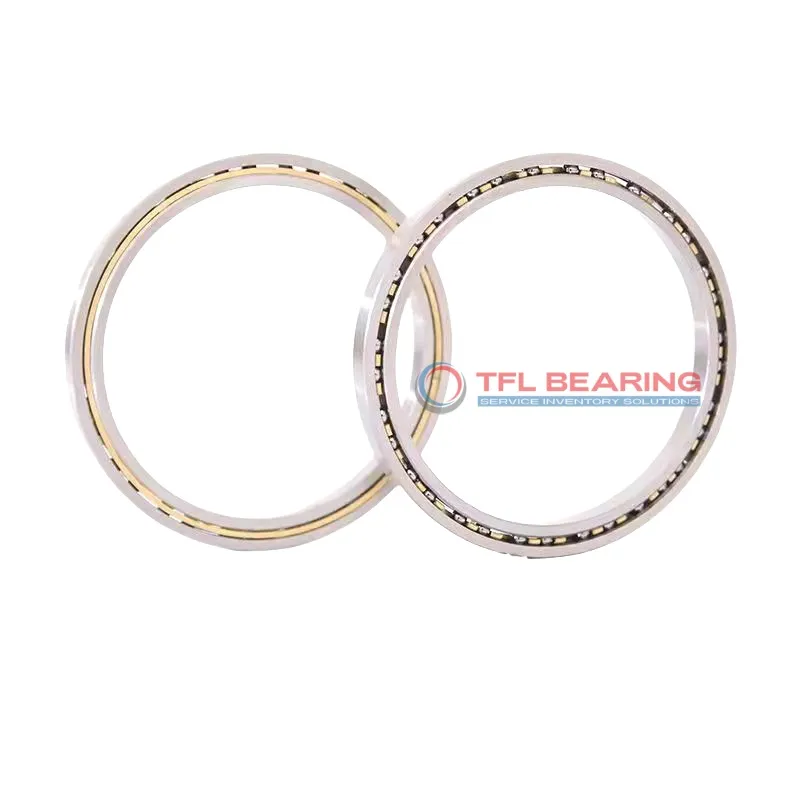

Constant Section (CS) Bearings SG140CP0

Constant Section (CS) Bearings SG140CP0

The SG140CP0 is a slim stainless steel bearing with a 14″ bore and 16″ outer diameter, designed for radial loads. It handles dynamic loads up to 10886 lbf and fits snugly in tight spaces with its 1″ width.

Made from durable stainless steel and brass cage, it offers smooth operation and resists corrosion. The open design allows easy lubrication, making maintenance straightforward.

This bearing is interchangeable with KAYDON models, ideal for machinery requiring precise radial support. Its ABEC-1 tolerance ensures reliable performance in applications like robotics or medical equipment.

Weighing 10.8 lbs, it operates well in temperatures from -30°C to 110°C. Compliant with RoHS standards, it’s a practical choice for industrial and precision uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SG140CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 14"
  • Bore Dia Tolerance -0.0016"– 0"
  • Outer Dia 16"
  • Outer Dia Tolerance -0.0016"– 0"
  • Width 1"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 14.742"
  • Internal Diameter On Outer Ring (Small Side Face) 15.258"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 10886 lbf
  • Static Radial Load 24620 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 10.8 lbs
  • price（$） 1109.33
Constant Section (CS) Bearings SG140CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of SG140CP0 Bearing

SG140CP0 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its brass cage ensures smooth operation by keeping the balls properly aligned during rotation.
With a dynamic radial load capacity of 10,886 lbf, it handles demanding radial loads efficiently.
The bearing operates within a temperature range of -30°C to 110°C, making it versatile for various environments.

Application

Common Applications of SG140CP0 Bearing
SG140CP0 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery where its thin-section design saves space without compromising strength. The stainless steel construction ensures it handles radial loads efficiently in demanding environments.

Where Is SG140CP0 Bearing Used?
You’ll often find SG140CP0 Bearing in medical imaging devices, where its low friction and smooth operation are essential for accurate results. Its brass cage adds durability, making it reliable for continuous use in diagnostic equipment.

Built for Heavy-Duty Use: SG140CP0 Bearing
SG140CP0 Bearing excels in conveyor systems, supporting heavy loads with its high static radial load capacity. The inch sizing makes it a straightforward replacement for compatible machinery in North American markets.

Automotive vs Aerospace: Applications of SG140CP0 Bearing
In automotive steering systems, SG140CP0 Bearing provides precise movement, while in aerospace, its lightweight design is ideal for control mechanisms. The ABEC-1 tolerance ensures consistent performance across both sectors.

Perfect Fit for Automation: SG140CP0 Bearing
SG140CP0 Bearing is a go-to choice for 3D printers, where its slim profile and smooth rotation enhance print accuracy. The lubricated design reduces maintenance needs, keeping downtime to a minimum.
