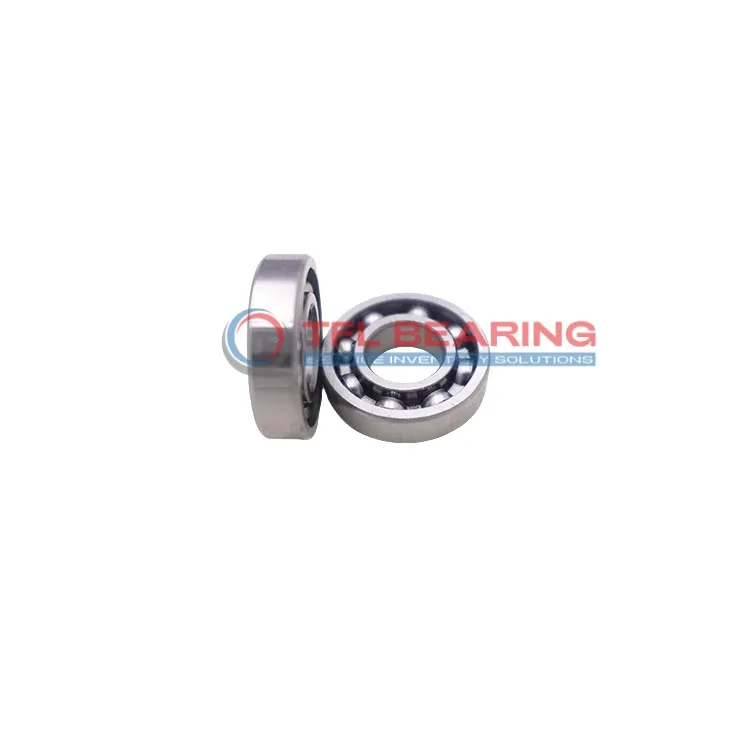

Stainless Steel Deep Groove Ball Bearings D/W R1810

Stainless Steel Deep Groove Ball Bearings D/W R1810

The D/W R1810 is a compact stainless steel deep groove ball bearing, measuring 0.31252″ in bore diameter and 0.5″ in outer diameter. Its single-row design and open seal make it simple to maintain while handling radial loads up to 70 lbf.

With a maximum speed of 63,000 RPM, it spins smoothly and efficiently. The all-stainless steel construction ensures corrosion resistance and durability in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It’s well-suited for small machinery or instruments where space is limited but performance is key.

Weighing just 0.0014kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R1810
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 0.31252"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.5"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.15618"
  • Width Tolerance -0.005" to 0"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 70 lbf
  • Static Radial Load 32 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 63000 rpm
  • Weight 0.0014 kg
Stainless Steel Deep Groove Ball Bearings D/W R1810 dimension drawing
Download DWG Download PDF

Features

Why Choose D/W R1810 Bearing for Precision Tasks?

D/W R1810 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its precise dimensions and tight tolerances ensure smooth operation in radial load applications.
With a dynamic radial load capacity of 70 lbf, it performs reliably in demanding conditions.
The open design allows for easy maintenance, while the stainless steel cage enhances durability.
Suitable for high-speed applications, it reaches up to 63,000 rpm without compromising performance.

Application

Common Applications of D/W R1810 Bearing
D/W R1810 Bearing is widely used in small industrial equipment, such as precision instruments and miniature motors, where its stainless steel construction offers good corrosion resistance. The compact inch size makes it suitable for tight spaces in various machinery.

In automotive applications, D/W R1810 Bearing can be found in components like fuel pumps and small electric motors, providing reliable radial load support. Its open design allows for easy lubrication and maintenance in these critical systems.

For medical devices, D/W R1810 Bearing’s stainless steel material ensures hygiene and durability in equipment like dental tools and lab instruments. The high-speed capability also makes it a dependable choice for precision medical applications.

In consumer electronics, D/W R1810 Bearing is often used in small fans and printers, where its quiet operation and long lifespan are appreciated. The lightweight design further enhances its suitability for portable devices.

Automation systems benefit from D/W R1810 Bearing in robotic arms and small actuators, where smooth motion and reliability are essential. The single-row construction provides consistent performance in these dynamic applications.
