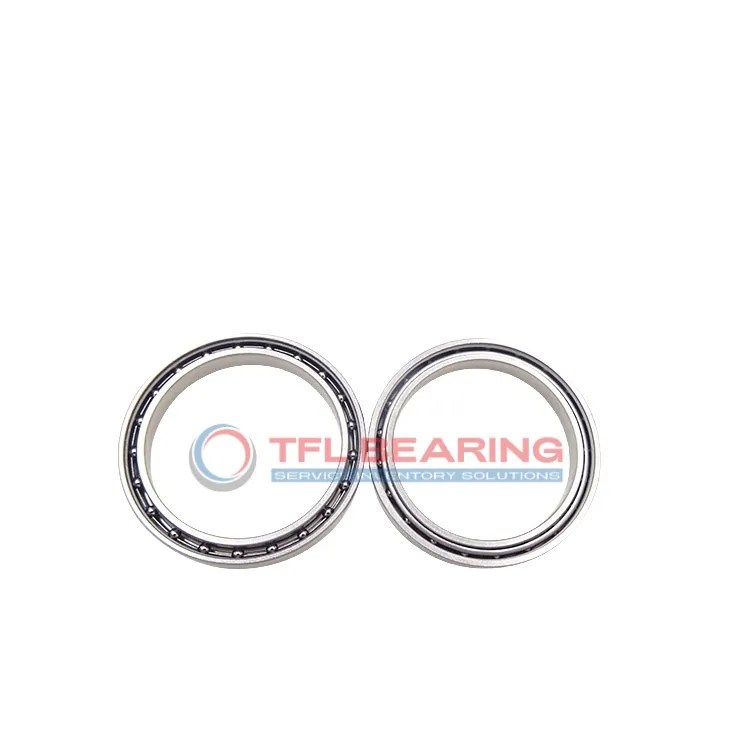

Constant Section (CS) Bearings SD060XP0

Constant Section (CS) Bearings SD060XP0

The SD060XP0 is a slim stainless steel bearing measuring 6″ by 7″ with a width of just 0.5″. Made from durable stainless steel, it handles radial loads up to 2855 lbf and thrust loads up to 4490 lbf.

Its open design and brass cage ensure smooth operation, while the ABEC-1 tolerance class offers reliable precision. The bearing works well in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications requiring slim profiles, such as robotics or medical equipment.

Weighing 1.16 lbs, it’s lightweight yet sturdy. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SD060XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 6"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 7"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SD 1/2" x 1/2"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 6.370"
  • Internal Diameter On Outer Ring (Small Side Face) 6.630"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 2855 lbf
  • Static Radial Load 4450 lbf
  • Static Thrust Load 11120 lbf
  • Static Moment 14450 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 6 lbf
  • Dynamic Thrust Load 4490 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.16 lbs
  • price（$） 275.2
Constant Section (CS) Bearings SD060XP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of SD060XP0 Bearing

SD060XP0 Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion and wear.
Its four-point contact design ensures reliable handling of both radial and thrust loads, making it versatile for various applications.
The brass cage maintains ball alignment, enhancing smooth operation and longevity.
With a dynamic radial load capacity of 2855 lbf, it performs well under demanding conditions.
The bearing operates efficiently within a temperature range of -30°C to 110°C, suitable for diverse environments.

Application

Industrial Uses of SD060XP0 Bearing
SD060XP0 Bearing is commonly used in industrial machinery, especially in applications where space is limited but high load capacity is needed. Its thin-section design makes it ideal for conveyor systems and robotic arms.

In automation, SD060XP0 Bearing provides smooth rotation for precision equipment like CNC machines. The stainless steel construction ensures durability even in demanding environments.

For medical devices, SD060XP0 Bearing offers reliable performance in imaging equipment and lab instruments. The brass cage adds stability, making it suitable for high-precision tasks.

Where Is SD060XP0 Bearing Used?
SD060XP0 Bearing fits well in automotive applications, such as steering systems, where its four-point contact design handles varied loads efficiently. The inch sizing ensures compatibility with many US-made vehicles.

In consumer electronics, SD060XP0 Bearing can be found in printers and scanners, where its compact size and smooth operation are beneficial. The open seal allows for easy maintenance in these devices.
