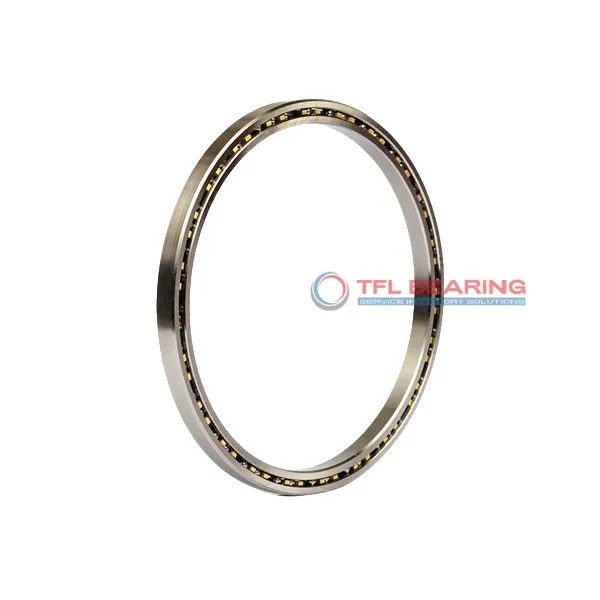

Constant Section (CS) Bearings SD055XP0

Constant Section (CS) Bearings SD055XP0

The SD055XP0 is a slim stainless steel bearing measuring 5.5″ by 6.5″ with a width of just 0.5″, making it a compact yet sturdy choice for tight spaces. Its four-point contact design handles both radial and thrust loads effectively, with a dynamic radial load capacity of 2725 lbf.

Made from durable stainless steel with a brass cage, it offers reliable performance in temperatures ranging from -30°C to 110°C. The open seal design allows for easy lubrication, ensuring smooth operation over time.

This bearing is interchangeable with KAYDON models, providing a versatile replacement option. Ideal for applications requiring precision and slim profiles, such as robotics or medical equipment.

Weighing 1.06 lbs, it balances lightweight construction with robust load-bearing capabilities. Compliant with RoHS standards, it’s a safe and practical choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SD055XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 6.5"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SD 1/2" x 1/2"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.870"
  • Internal Diameter On Outer Ring (Small Side Face) 6.130"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 2725 lbf
  • Static Radial Load 4100 lbf
  • Static Thrust Load 10260 lbf
  • Static Moment 12310 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 6 lbf
  • Dynamic Thrust Load 4260 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.06 lbs
  • price（$） 258.13
Constant Section (CS) Bearings SD055XP0 dimension drawing
Download DWG Download PDF

Features

How Is SD055XP0 Bearing Engineered for Reliability?

SD055XP0 Bearing features stainless steel rings and balls, ensuring excellent corrosion resistance and durability.
Its brass cage maintains proper ball alignment, reducing friction and wear during operation.

With a dynamic radial load capacity of 2725 lbf, SD055XP0 Bearing handles demanding applications effortlessly.
The ABEC-1 tolerance class ensures consistent performance and reliability in precision tasks.

SD055XP0 Bearing operates smoothly in temperatures ranging from -30°C to 110°C.
Its open design allows for easy lubrication, enhancing long-term performance.

The thin-section construction of SD055XP0 Bearing saves space without compromising strength.
It is interchangeable with KAYDON bearings, offering flexibility in various applications.

Application

Key Fields for SD055XP0 Bearing
SD055XP0 Bearing is commonly used in robotics, particularly for joints and rotating arms where its thin section design saves space without sacrificing load capacity. The stainless steel construction ensures it performs well in environments requiring corrosion resistance.

Where Is SD055XP0 Bearing Used?
You’ll find SD055XP0 Bearing in medical imaging devices, where its precise movement and low friction are essential. The brass cage adds durability, making it reliable for continuous operation.

Built for Heavy-Duty Use: SD055XP0 Bearing
SD055XP0 Bearing handles heavy loads in industrial automation, such as conveyor systems and packaging machines. Its four-point contact design distributes forces evenly, reducing wear over time.

Automotive vs Aerospace: Applications of SD055XP0 Bearing
In automotive steering systems, SD055XP0 Bearing provides smooth rotation, while in aerospace, its lightweight design is ideal for control mechanisms. The ABEC-1 tolerance ensures consistent performance in both fields.

Perfect Fit for Automation: SD055XP0 Bearing
SD055XP0 Bearing works well in 3D printers and CNC machines, where precision and repeatability matter. The lubricated design keeps it running smoothly even during long production cycles.
