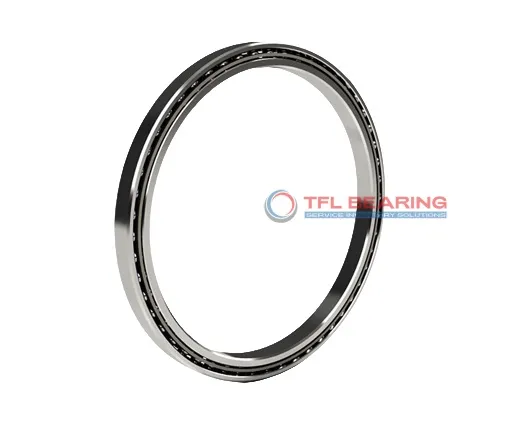

Constant Section (CS) Bearings SD050XP0

Constant Section (CS) Bearings SD050XP0

The SD050XP0 is a slim stainless steel bearing measuring 5″ by 6″ with a 0.5″ width, designed for four-point contact loads. It handles dynamic radial loads up to 2592 lbf and static thrust loads up to 9410 lbf, making it versatile for various applications.

Its open design and brass cage ensure smooth operation, while the stainless steel construction offers durability. The bearing works well in temperatures from -30°C to 110°C and is pre-lubricated for easy use.

This model is interchangeable with KAYDON bearings, ideal for precision equipment or machinery requiring slim profiles. Weighing just 1.0 lb, it’s lightweight yet robust, compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SD050XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 6"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SD 1/2" x 1/2"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.370"
  • Internal Diameter On Outer Ring (Small Side Face) 5.630"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 2592 lbf
  • Static Radial Load 3760 lbf
  • Static Thrust Load 9410 lbf
  • Static Moment 10350 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 5 lbf
  • Dynamic Thrust Load 4020 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.0 lbs
  • price（$） 243.13
Constant Section (CS) Bearings SD050XP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of SD050XP0 Bearing

SD050XP0 Bearing is constructed with stainless steel rings and balls, offering excellent resistance to corrosion.
Its brass cage ensures smooth operation and reduces friction, enhancing overall performance.

The bearing handles dynamic radial loads up to 2592 lbf, making it suitable for various applications.
With a static thrust load capacity of 9410 lbf, it provides reliable support under heavy loads.

SD050XP0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class ensures consistent performance in precision tasks.

Application

Industrial Uses of SD050XP0 Bearing
SD050XP0 Bearing is commonly used in robotics, especially for joints requiring slim yet sturdy support. Its stainless steel construction ensures durability in repetitive movements.

In automation systems, SD050XP0 Bearing fits well in conveyor mechanisms due to its precise inch measurements. The brass cage adds smooth operation under moderate loads.

For medical imaging devices, SD050XP0 Bearing offers reliable performance with minimal maintenance. Its open design allows for easy cleaning in sterile environments.

Where Is SD050XP0 Bearing Used?
You’ll find SD050XP0 Bearing in packaging machines where space is tight but load capacity matters. The four-point contact design handles both radial and thrust forces efficiently.

Built for Heavy-Duty Use: SD050XP0 Bearing
SD050XP0 Bearing works well in aerospace applications, such as satellite mechanisms, due to its lightweight yet strong build. The temperature range suits both cold and warm conditions.

Automotive vs Aerospace: Applications of SD050XP0 Bearing
In automotive steering systems, SD050XP0 Bearing provides smooth rotation with its brass cage. For aerospace, its slim profile fits compact designs without sacrificing strength.
