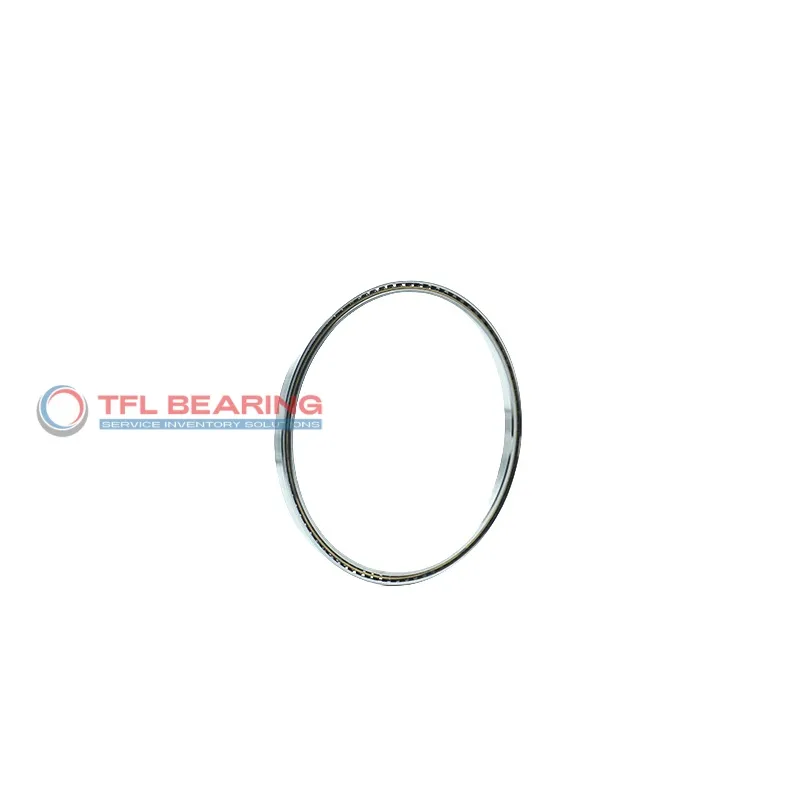

Constant Section (CS) Bearings SC300AR0

Constant Section (CS) Bearings SC300AR0

The SC300AR0 is a thin-section angular contact bearing with a 30″ bore and 30.75″ outer diameter, crafted from durable stainless steel. Its slim 0.375″ width makes it ideal for space-constrained applications while handling radial loads up to 3561 lbf.

The single-row design with a 30° contact angle ensures smooth operation under angular loads. The brass cage adds strength, and the open seal allows for easy lubrication.

This bearing suits precision equipment like robotics or medical devices where low friction is key. It operates reliably in temperatures from -30°C to 110°C.

Weighing 3.02 lbs, it’s interchangeable with KAYDON models, offering a practical replacement option. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SC300AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 30"
  • Bore Dia Tolerance -0.0018"- 0"
  • Outer Dia 30.75"
  • Outer Dia Tolerance -0.0018"- 0"
  • Width 0.375"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SC 3/8" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 30.277"
  • Internal Diameter On Outer Ring (Small Side Face) 30.473"
  • Internal Diameter On Outer Ring (Large Side Face) 30.484"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 3561 lbf
  • Static Radial Load 17960 lbf
  • Static Thrust Load 10160 lbf
  • Static Moment 51850 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 3.02 lbs
  • price（$） 6530.23
Constant Section (CS) Bearings SC300AR0 dimension drawing
Download DWG Download PDF

Features

Why Choose SC300AR0 Bearing for Precision Tasks?

SC300AR0 Bearing features a 30° contact angle, ideal for handling angular contact loads with precision.
Its stainless steel construction ensures durability and resistance to corrosion in various environments.

The brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With ABEC-1 tolerance, SC300AR0 Bearing offers reliable performance for applications requiring accuracy.

SC300AR0 Bearing supports static radial loads up to 17960 lbf, making it suitable for heavy-duty tasks.
Its thin-section design saves space while maintaining strength and efficiency.

Application

Common Applications of SC300AR0 Bearing
SC300AR0 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery where its thin-section design saves space without compromising performance. The stainless steel construction ensures durability in demanding environments.

In aerospace applications, SC300AR0 Bearing provides reliable angular contact support for control systems and landing gear mechanisms. Its ABEC-1 tolerance class offers sufficient precision for these critical operations.

For medical imaging devices, SC300AR0 Bearing’s brass cage and stainless steel components ensure smooth, quiet operation essential for sensitive equipment. The open seal design allows for easy lubrication maintenance.

SC300AR0 Bearing also finds use in semiconductor manufacturing equipment, where its thin profile and high load capacity are advantageous. The inch sizing makes it compatible with many North American machinery standards.

In packaging machinery, SC300AR0 Bearing handles moderate radial and thrust loads efficiently. Its temperature range suits both indoor and mildly challenging environments.
