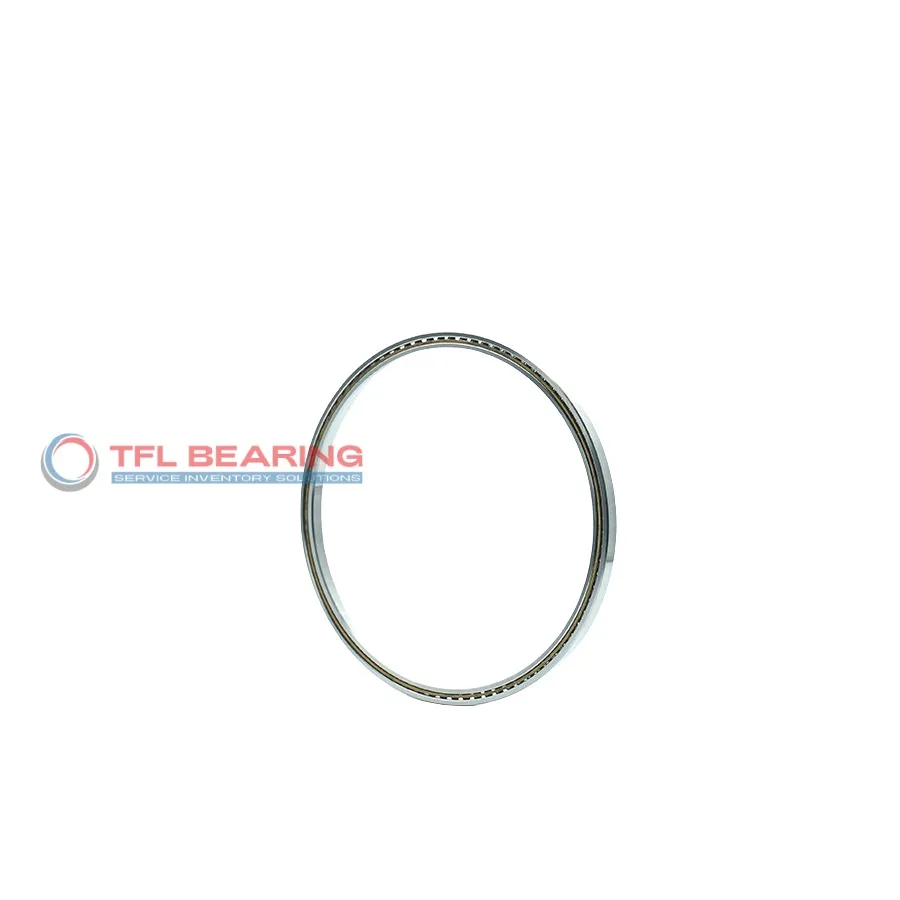

Constant Section (CS) Bearings SC110AR0

Constant Section (CS) Bearings SC110AR0

The SC110AR0 is a slim stainless steel bearing measuring 11″ by 11.75″ with a width of just 0.375″, making it ideal for tight spaces. It handles angular contact loads with a 30° contact angle and supports radial loads up to 2047 lbf.

Made from durable stainless steel and brass, it offers reliable performance in temperatures from -30°C to 110°C. Its open design allows for easy lubrication, ensuring smooth operation over time.

This bearing is interchangeable with KAYDON models, providing a versatile replacement option. Perfect for applications requiring thin-section bearings, such as robotics or precision machinery.

Weighing 1.14 lbs, it’s lightweight yet strong, meeting ABEC-1 tolerance standards for consistent performance. Compliant with RoHS regulations for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SC110AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 11"
  • Bore Dia Tolerance -0.0014"- 0"
  • Outer Dia 11.75"
  • Outer Dia Tolerance -0.0014"- 0"
  • Width 0.375"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SC 3/8" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 11.277"
  • Internal Diameter On Outer Ring (Small Side Face) 11.473"
  • Internal Diameter On Outer Ring (Large Side Face) 11.542"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 2047 lbf
  • Static Radial Load 6720 lbf
  • Static Thrust Load 5280 lbf
  • Static Moment 19390 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.14 lbs
  • price（$） 462.71
Constant Section (CS) Bearings SC110AR0 dimension drawing
Download DWG Download PDF

Features

Performance Features of SC110AR0 Bearing

SC110AR0 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its angular contact design efficiently handles both radial and thrust loads, making it versatile for various applications.
The brass cage ensures smooth operation by maintaining proper ball alignment.
With a temperature range of -30°C to 110°C, it performs reliably in diverse environments.

Application

Industrial Uses of SC110AR0 Bearing
SC110AR0 Bearing is commonly used in industrial machinery where space is limited but precision is key, such as robotic arms and packaging equipment. Its thin-section design ensures it fits snugly without compromising performance.

Where Is SC110AR0 Bearing Used?
In automation systems, SC110AR0 Bearing provides smooth rotation for components like conveyor belts and assembly line mechanisms. The stainless steel construction makes it resistant to corrosion in demanding environments.

Built for Heavy-Duty Use: SC110AR0 Bearing
SC110AR0 Bearing handles angular contact loads effortlessly, making it ideal for applications like rotary tables and indexing devices. The brass cage adds durability, ensuring long service life even under continuous operation.

Automotive vs Aerospace: Applications of SC110AR0 Bearing
In automotive settings, SC110AR0 Bearing is often found in steering systems, where its precision enhances control. For aerospace, it’s used in instrumentation panels due to its reliability and lightweight design.

Perfect Fit for Automation: SC110AR0 Bearing
SC110AR0 Bearing works seamlessly in 3D printers and CNC machines, where its thin profile and high accuracy are crucial. The open seal type allows for easy lubrication, reducing maintenance downtime.
