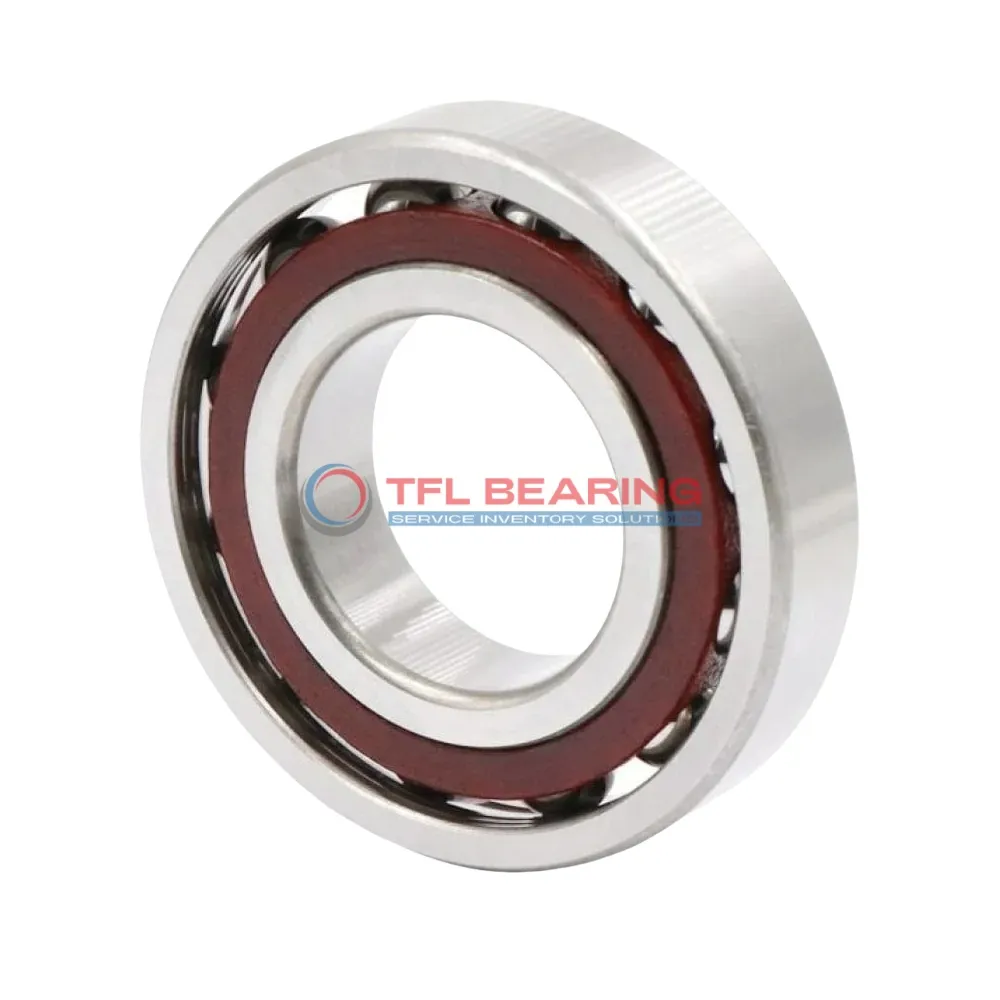

Super Precision Angular Contact Ball Bearings S7016 ACE/HCP4A

Brand: TFL Bearing Interchangeable: SKF S7016 ACE/HCP4A 80 mm × 125 mm × 22 mm Metric Sealed
Part number: S7016 ACE/HCP4A
Super Precision Angular Contact Ball Bearings S7016 ACE/HCP4A
In Stock
US$778.29 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.007mm to 0
Outer Dia125 mm
Outer Dia Tolerance-0.009mm to 0
Width22 mm
Width Tolerance-0.2mm to 0
Ball Dia11.112 mm
Performance
PreloadAvailable
Dynamic Radial Load7,312 lbf
Static Radial Load5,962 lbf
Temperature Range-30° to 110 °C
Max Speed15,500 rpm
Characteristics
Ball Qty25
Contact Angle25°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.81 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7016 ACE/HCP4A is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from durable chrome steel. Its compact 22mm width makes it suitable for tight spaces while handling radial loads up to 7312 lbf.

With a 25° contact angle and ceramic balls, it offers smooth rotation at speeds up to 15,500 RPM. The sealed design keeps lubrication in place, reducing maintenance needs.

This bearing comes preloaded and matched for precision applications, meeting P4 tolerance standards. Ideal for high-speed machinery like spindles or CNC tools where accuracy is key.

Weighing 0.81kg, it operates reliably in temperatures from -30°C to 110°C. Its phenolic cage ensures quiet, long-lasting performance.

Features

Performance Features of S7016 ACE/HCP4A Bearing

S7016 ACE/HCP4A Bearing features a 25° contact angle, optimised for handling combined radial and axial loads.
The ceramic balls and chrome steel rings enhance durability while reducing friction for smoother operation.

With a dynamic radial load capacity of 7312 lbf, it performs reliably in high-precision applications.
Its P4 tolerance class ensures exceptional accuracy, making it suitable for demanding machinery.

The sealed design and phenolic cage maintain performance in various conditions, reducing maintenance needs.
S7016 ACE/HCP4A Bearing reaches speeds up to 15,500 rpm, balancing speed and load capacity effectively.

Application

Industrial Uses of S7016 ACE/HCP4A Bearing
S7016 ACE/HCP4A Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate performance. The ceramic balls reduce friction, making it suitable for demanding industrial environments.

In automotive applications, S7016 ACE/HCP4A Bearing supports components like electric motors and transmissions, providing reliable operation under angular loads. Its sealed design helps protect against contaminants, extending service life.

For medical imaging devices, S7016 ACE/HCP4A Bearing’s phenolic cage and chrome steel rings offer durability and smooth operation. The P4 tolerance class ensures the precision needed for sensitive equipment.

Automation systems benefit from S7016 ACE/HCP4A Bearing’s matched arrangement and preload options, which enhance stability in robotic arms. Its high-speed capability makes it ideal for repetitive, precise movements.

In consumer electronics, S7016 ACE/HCP4A Bearing can be found in high-performance fans and printers, where its low friction and quiet operation are valued. The lubricated design ensures long-term reliability with minimal maintenance.
