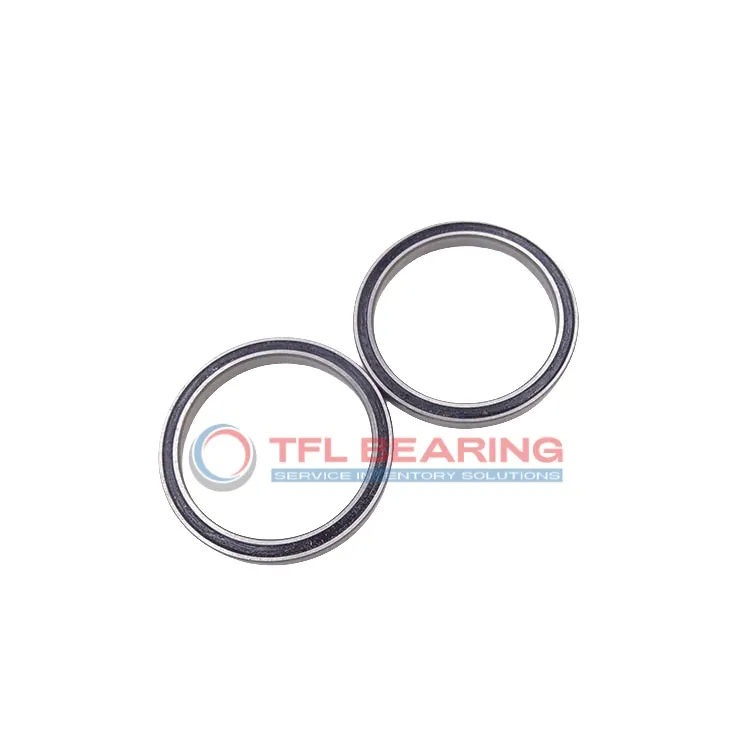

Constant Section (CS) Bearings SC047CP0

Constant Section (CS) Bearings SC047CP0

The SC047CP0 is a thin-section radial ball bearing measuring 4.75″×5.5″×0.375″, crafted from stainless steel for durability. It handles radial loads up to 1176 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design and brass cage ensure easy maintenance and reliable performance. The bearing is interchangeable with KAYDON models, making it a versatile choice for replacements.

With a slim profile of just 0.375″ width, it fits neatly into compact spaces. Ideal for applications like robotics or medical equipment where precision and space-saving are key.

Weighing only 0.5 lbs, it’s lightweight yet sturdy. Compliant with RoHS standards, it’s a safe and practical option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SC047CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 4.75"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 5.5"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.375"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SC 3/8" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.027"
  • Internal Diameter On Outer Ring (Small Side Face) 5.223"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 1176 lbf
  • Static Radial Load 2460 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.5 lbs
  • price（$） 207.02
Constant Section (CS) Bearings SC047CP0 dimension drawing
Download DWG Download PDF

Features

How Does SC047CP0 Bearing Ensure Smooth Radial Load Handling?

SC047CP0 Bearing is crafted with stainless steel rings and balls, offering reliable performance under radial loads.
Its dynamic radial load capacity of 1176 lbf makes it suitable for various applications.
The brass cage maintains ball alignment, ensuring smooth operation and reducing friction.
With a temperature range of -30°C to 110°C, it performs well in diverse environments.

Application

Key Fields for SC047CP0 Bearing
SC047CP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin section design saves space without compromising strength. The stainless steel construction ensures it handles radial loads efficiently in tight setups.

In medical imaging devices, SC047CP0 Bearing’s smooth operation and brass cage reduce friction, making it ideal for sensitive equipment like MRI scanners. Its ABEC-1 tolerance guarantees consistent performance in critical applications.

For aerospace applications, SC047CP0 Bearing’s lightweight design and corrosion-resistant materials suit components like satellite mechanisms. The inch sizing aligns with many North American aerospace standards, ensuring easy integration.

Where Is SC047CP0 Bearing Used?
SC047CP0 Bearing fits well in packaging machinery, where its thin profile and radial load capacity support high-speed conveyor systems. The open seal design allows for quick lubrication, reducing downtime.

In semiconductor manufacturing, SC047CP0 Bearing’s precision and stainless steel build prevent contamination in cleanroom environments. Its minimal radial clearance ensures accurate positioning for delicate processes.

Built for Heavy-Duty Use: SC047CP0 Bearing
SC047CP0 Bearing works reliably in construction equipment, such as compact cranes, where its brass cage withstands vibrations and shock loads. The inch measurements make it compatible with many US-made machines.

For 3D printers, SC047CP0 Bearing’s slim design and smooth rotation enhance print head accuracy. The lubricated setup ensures quiet operation, perfect for home or office use.

Automotive vs Aerospace: Applications of SC047CP0 Bearing
In automotive steering systems, SC047CP0 Bearing’s radial load capacity ensures precise control, while its corrosion resistance suits harsh conditions. The inch sizing fits most American and Japanese models.

For aerospace actuators, SC047CP0 Bearing’s lightweight and durability meet strict industry standards. The stainless steel rings and balls provide long-term reliability in high-altitude environments.
