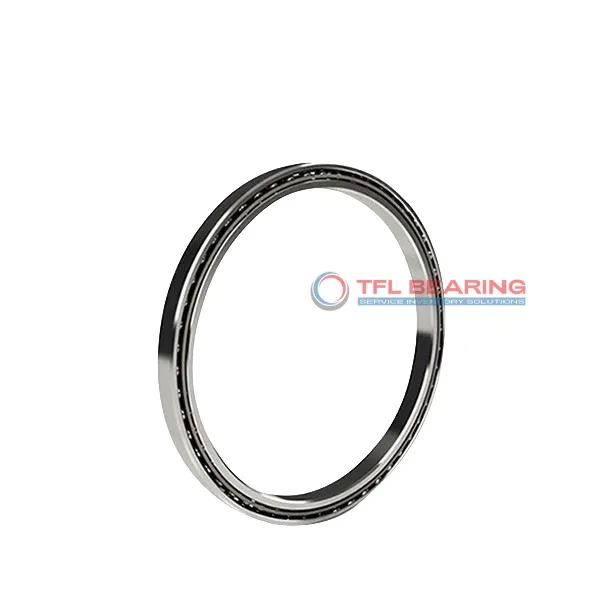

Constant Section (CS) Bearings SB025CP0

Constant Section (CS) Bearings SB025CP0

How Does SB025CP0 Bearing Reduce Friction?

SB025CP0 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its brass cage maintains proper ball alignment, enhancing efficiency and reducing wear.
The ABEC-1 tolerance class guarantees consistent performance in radial load applications.
With a dynamic radial load capacity of 644 lbf, it offers reliable performance for various uses.

Why Choose SB025CP0 Bearing for Precision Tasks?

SB025CP0 Bearing’s thin-section design allows for precise radial load handling in compact spaces.
The stainless steel construction resists corrosion, making it suitable for diverse environments.
Its open seal type simplifies maintenance while ensuring smooth operation.
With a static radial load capacity of 1140 lbf, it provides dependable support for precision applications.

Engineered for Precision: SB025CP0 Bearing

SB025CP0 Bearing is crafted with stainless steel components for durability and corrosion resistance.
The brass cage design ensures stable ball movement, reducing noise and vibration.
Its ABEC-1 tolerance class ensures consistent accuracy in radial load applications.
The bearing operates efficiently within a temperature range of -30°C to 110°C.

Steel vs Ceramic Bearings: Strengths of SB025CP0 Bearing

SB025CP0 Bearing uses stainless steel for both rings and balls, offering excellent corrosion resistance.
Its brass cage enhances durability and maintains smooth operation under radial loads.
The thin-section design makes it ideal for applications where space is limited.
With a dynamic radial load capacity of 644 lbf, it provides reliable performance in various settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SB025CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 2.5"
  • Bore Dia Tolerance -0.0006"– 0"
  • Outer Dia 3.125"
  • Outer Dia Tolerance -0.0005"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 2.731"
  • Internal Diameter On Outer Ring (Small Side Face) 2.893"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 644 lbf
  • Static Radial Load 1140 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1549 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.2 lbs
  • price（$） 97.62
Constant Section (CS) Bearings SB025CP0 dimension drawing
Download DWG Download PDF

Features

Common Applications of SB025CP0 Bearing
SB025CP0 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its thin-section design saves space without compromising performance. The stainless steel construction ensures durability in demanding environments.

Where Is SB025CP0 Bearing Used?
You’ll often find SB025CP0 Bearing in medical imaging devices, where its low friction and smooth operation are essential for accurate results. Its brass cage adds stability, making it reliable for high-precision applications.

Ideal for Precision: SB025CP0 Bearing
SB025CP0 Bearing works well in 3D printers, providing smooth motion control thanks to its tight tolerances and stainless steel components. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of SB025CP0 Bearing
In automotive systems, SB025CP0 Bearing fits well in steering mechanisms, offering reliable radial load support. For aerospace, its lightweight design and corrosion resistance make it suitable for instrumentation and control systems.

Application

Common Applications of SB025CP0 Bearing
SB025CP0 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its thin-section design saves space without compromising performance. The stainless steel construction ensures durability in demanding environments.

Where Is SB025CP0 Bearing Used?
You’ll often find SB025CP0 Bearing in medical imaging devices, where its low friction and smooth operation are essential for accurate results. Its brass cage adds stability, making it reliable for high-precision applications.

Ideal for Precision: SB025CP0 Bearing
SB025CP0 Bearing works well in 3D printers, providing smooth motion control thanks to its tight tolerances and stainless steel components. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of SB025CP0 Bearing
In automotive systems, SB025CP0 Bearing fits well in steering mechanisms, offering reliable radial load support. For aerospace, its lightweight design and corrosion resistance make it suitable for instrumentation and control systems.
