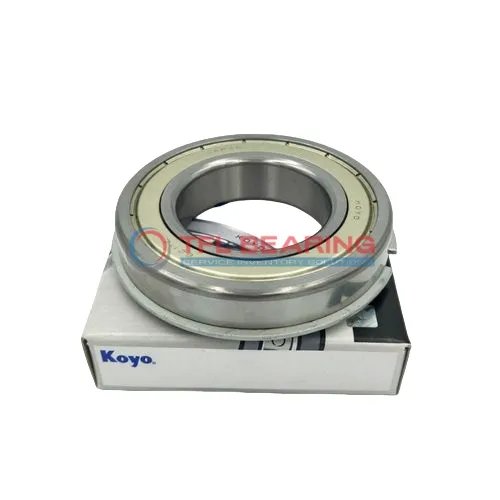

Snap Ring Groove Ball Bearings 6215-ZNRJEM/C3

Snap Ring Groove Ball Bearings 6215-ZNRJEM/C3

The 6215-ZNRJEM/C3 is a shielded snap ring groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 15152 lbf and operates smoothly at speeds up to 4800 RPM.

Its snap ring design ensures secure fitting, while the C3 radial clearance allows for thermal expansion in various conditions. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where secure mounting is essential.

Weighing 1170g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215-ZNRJEM/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 139.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 15152 lbf
  • Static Radial Load 10858 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 1170 g
  • Price（$） 38
Snap Ring Groove Ball Bearings 6215-ZNRJEM/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6215-ZNRJEM/C3 Bearing Reduce Friction?

6215-ZNRJEM/C3 Bearing features a shielded design, keeping contaminants out while minimising friction.
The chrome steel construction ensures smooth operation, even under high radial loads up to 15152 lbf.

Its snap ring groove provides secure mounting, reducing vibration and wear over time.
With a C3 radial clearance, it accommodates thermal expansion without compromising performance.

The single-row ball design balances load distribution, enhancing efficiency and longevity.
Operating at temperatures from -30°C to 120°C, it suits various industrial environments.

Application

Industrial Uses of 6215-ZNRJEM/C3 Bearing
The 6215-ZNRJEM/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out.
Its snap ring feature ensures secure mounting, making it ideal for applications where vibration or axial movement might be a concern.

What Makes 6215-ZNRJEM/C3 Bearing a Preferred Choice?
In automotive applications, 6215-ZNRJEM/C3 Bearing works well in gearboxes and wheel hubs due to its high radial load capacity.
The chrome steel construction provides durability, even under demanding conditions, while the C3 clearance allows for thermal expansion.

Built for Heavy-Duty Use: 6215-ZNRJEM/C3 Bearing
For automation systems, 6215-ZNRJEM/C3 Bearing is a reliable choice for conveyor rollers and robotic arms.
The shielded seals reduce maintenance needs, and the snap ring simplifies installation in tight spaces.

Light-Duty vs Heavy-Duty: Best Uses for 6215-ZNRJEM/C3 Bearing
In consumer electronics like washing machines, 6215-ZNRJEM/C3 Bearing handles moderate loads with ease.
For heavier industrial equipment, its dynamic radial load rating ensures long-lasting performance even in tough environments.
