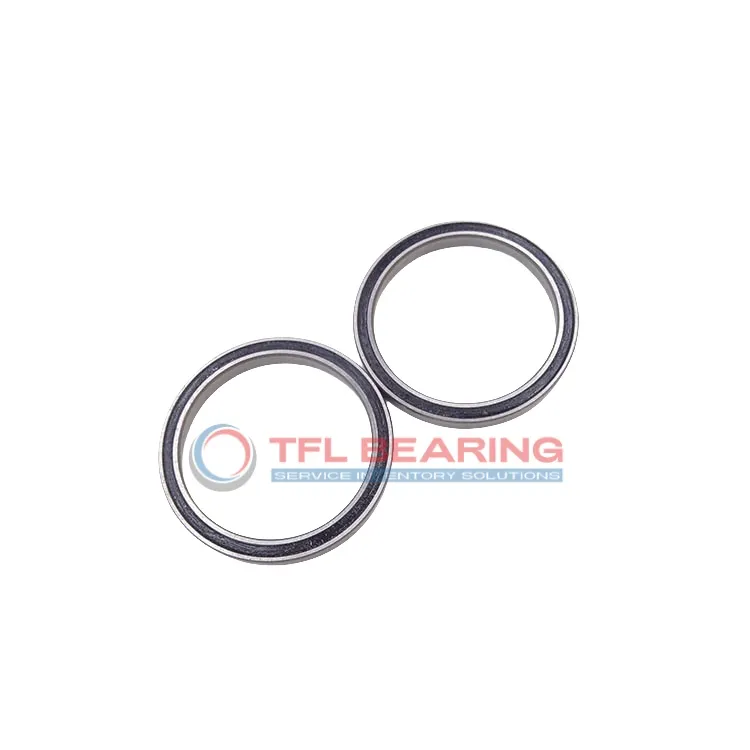

Constant Section (CS) Bearings SA047XP0

Constant Section (CS) Bearings SA047XP0

The SA047XP0 is a slim stainless steel bearing measuring 4.75″×5.25″×0.25″, designed for four-point contact loads. Its compact 0.25″ width makes it ideal for space-constrained applications while maintaining strength.

Made from durable stainless steel with a brass cage, it handles dynamic radial loads up to 834 lbf and thrust loads up to 1350 lbf. The bearing operates smoothly in temperatures from -30°C to 110°C.

Its open design allows easy lubrication, and the ABEC-1 tolerance ensures reliable performance. The thin-section construction provides flexibility without sacrificing durability.

This model is interchangeable with KAYDON bearings, offering a practical replacement option. Suitable for precision equipment, robotics, or medical devices where slim profiles and reliable performance are needed. Weighing just 0.23 lbs, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SA047XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 4.75"
  • Bore Dia Tolerance -0.0010" – 0"
  • Outer Dia 5.25"
  • Outer Dia Tolerance -0.0008" – 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 4.936"
  • Internal Diameter On Outer Ring (Small Side Face) 5.064"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 834 lbf
  • Static Radial Load 1520 lbf
  • Static Thrust Load 3790 lbf
  • Static Moment 3790 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 1 lbf
  • Dynamic Thrust Load 1350 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.23 lbs
  • price（$） 224.37
Constant Section (CS) Bearings SA047XP0 dimension drawing
Download DWG Download PDF

Features

Why Choose SA047XP0 Bearing for Precision Tasks?

SA047XP0 Bearing features a stainless steel construction, ensuring durability and resistance to corrosion.
Its four-point contact design allows it to handle both radial and thrust loads efficiently.

With a dynamic radial load capacity of 834 lbf, SA047XP0 Bearing is suitable for precision applications.
The brass cage maintains ball alignment, reducing friction and extending operational life.

SA047XP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its thin-section design makes it ideal for space-constrained installations.

Application

Common Applications of SA047XP0 Bearing
SA047XP0 Bearing is widely used in robotics, especially in articulated arms where its thin-section design saves space without compromising load capacity. The stainless steel construction ensures longevity even in high-movement applications.

In aerospace equipment, SA047XP0 Bearing provides reliable performance for control mechanisms due to its precise ABEC-1 tolerance. Its brass cage reduces friction, making it suitable for sensitive instrumentation.

For packaging machinery, SA047XP0 Bearing handles moderate radial and thrust loads efficiently. The open seal design allows for easy lubrication, extending service life in dusty environments.

Medical imaging devices benefit from SA047XP0 Bearing’s smooth operation and corrosion resistance. Its compact profile fits neatly into tight spaces within diagnostic equipment.

In semiconductor manufacturing, SA047XP0 Bearing’s low-moment characteristics ensure precision in wafer handling systems. The inch sizing simplifies integration with North American machinery standards.
