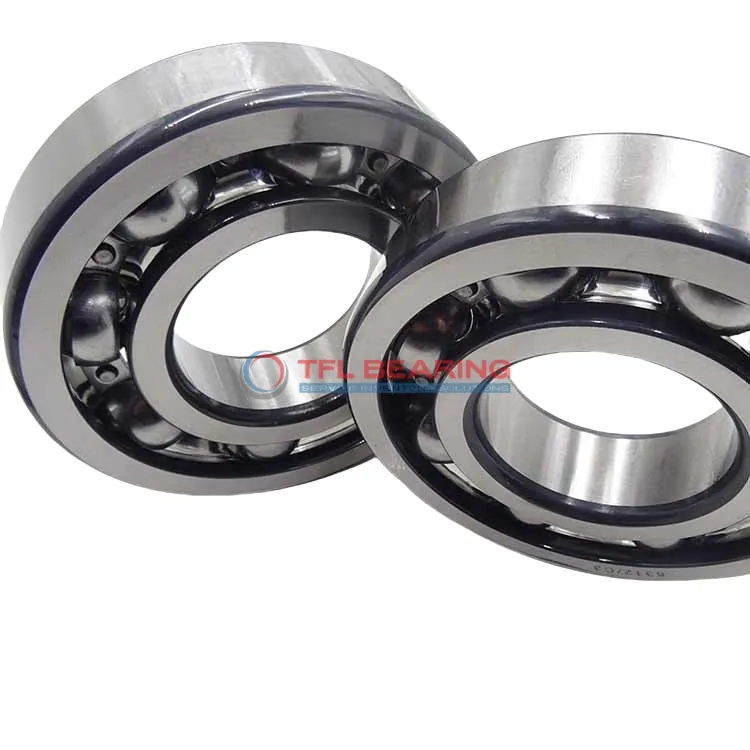

Single Row Deep Groove Ball Bearings 16060 MA

Single Row Deep Groove Ball Bearings 16060 MA

The 16060 MA is a single-row deep groove ball bearing with a 300mm bore and 460mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 64295 lbf and operates smoothly at speeds up to 1800 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are common.

Weighing 32kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16060 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 50 mm
  • Width Tolerance -0.35mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 64295 lbf
  • Static Radial Load 91048 lbf
  • Max Speed 1800 rpm
  • Weight 32000 g
  • price（$） 1102.572
Single Row Deep Groove Ball Bearings 16060 MA dimension drawing
Download DWG Download PDF

Features

How Does 16060 MA Bearing Handle Heavy Loads?

16060 MA Bearing is built with chrome steel rings and balls, offering strong resistance to heavy radial loads.
Its dynamic radial load capacity reaches 64295 lbf, ensuring reliable performance in demanding applications.
The stainless steel cage maintains ball alignment, reducing wear and extending service life.
With a maximum speed of 1,800 rpm, it balances durability and efficiency.

What Makes 16060 MA Bearing Suitable for High-Temperature Applications?

16060 MA Bearing operates smoothly in temperatures ranging from -30° to 120°C.
Its chrome steel construction ensures stability and performance even in challenging conditions.
The open design allows for efficient heat dissipation, preventing overheating.
This makes it a reliable choice for industrial applications with varying temperatures.

Engineered for Precision: 16060 MA Bearing

16060 MA Bearing features a single-row deep groove design for precise radial load handling.
The P6 tolerance class ensures high accuracy and consistent performance.
Its chrome steel components provide durability and resistance to wear.
This bearing is ideal for applications requiring both precision and reliability.

Why Choose 16060 MA Bearing for Radial Loads?

16060 MA Bearing excels in radial load applications due to its robust construction.
With a static radial load capacity of 91048 lbf, it handles heavy-duty tasks with ease.
The open seal type allows for easy maintenance and lubrication.
Its design ensures long-lasting performance in various industrial settings.

Material Composition of 16060 MA Bearing

16060 MA Bearing is crafted from high-quality chrome steel for rings and balls.
The stainless steel cage enhances durability and reduces friction.
This material combination ensures resistance to wear and corrosion.
It’s a reliable choice for demanding environments and heavy loads.

Application

Industrial Uses of 16060 MA Bearing
16060 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and gearboxes, where its robust design handles significant radial loads. The open seal type allows for easy lubrication, making it suitable for high-temperature environments.

In automotive applications, 16060 MA Bearing supports components like wheel hubs and transmissions, ensuring smooth operation under heavy stress. Its metric sizing ensures compatibility with a variety of vehicle designs, from trucks to industrial equipment.

For automation systems, 16060 MA Bearing’s stainless steel cage and chrome steel construction provide durability in robotic arms and conveyor belts. The P6 tolerance class ensures precise performance in repetitive, high-precision tasks.

Where Is 16060 MA Bearing Used?
You’ll often find 16060 MA Bearing in wind turbines, where its ability to handle dynamic radial loads is crucial for long-term reliability. The wide temperature range also makes it ideal for outdoor applications.

In construction equipment, 16060 MA Bearing is a go-to choice for cranes and excavators, thanks to its high static radial load capacity. The chrome steel rings ensure resistance to wear even in dusty or harsh conditions.

Built for Heavy-Duty Use: 16060 MA Bearing
16060 MA Bearing excels in mining machinery, where its large bore diameter and high load capacity are essential. The open design simplifies maintenance, reducing downtime in demanding operations.

For food processing equipment, 16060 MA Bearing’s compliant materials meet industry standards while handling radial loads in mixers and conveyors. The stainless steel cage adds corrosion resistance in wet or humid environments.

Light-Duty vs Heavy-Duty: Best Uses for 16060 MA Bearing
In light-duty applications like packaging machines, 16060 MA Bearing offers smooth operation with minimal maintenance. Its precision tolerances ensure consistent performance in repetitive tasks.

For heavy-duty uses such as steel mills, 16060 MA Bearing’s high dynamic radial load capacity stands out. The chrome steel construction withstands extreme conditions, making it a reliable choice for intensive operations.
