Constant Section (CS) Bearings S09003CS0

Constant Section (CS) Bearings S09003CS0

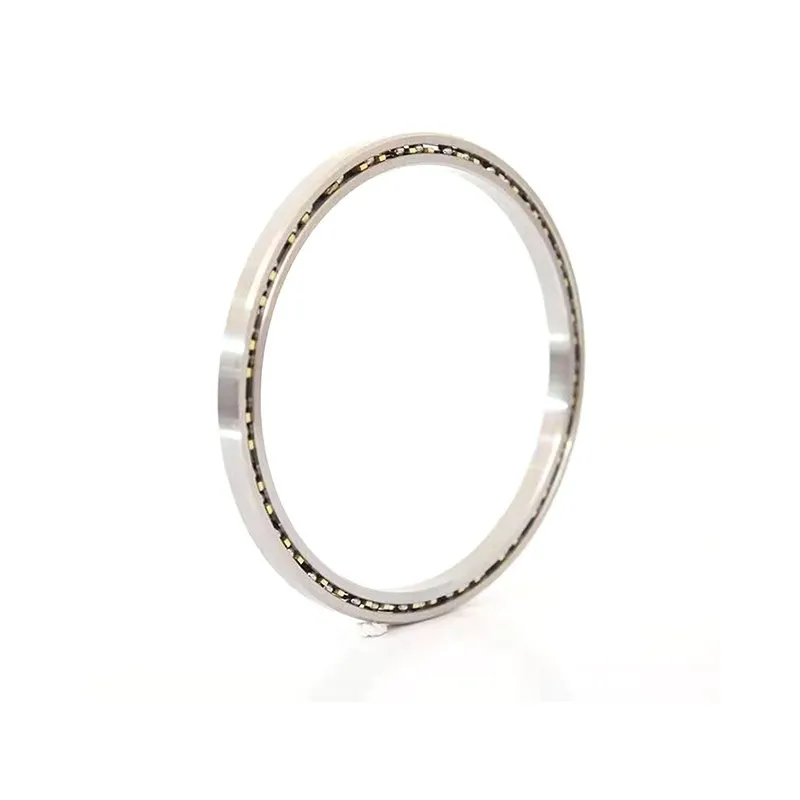

The S09003CS0 is a slim, constant-section ball bearing with a 90mm bore and 96mm outer diameter, crafted entirely from stainless steel for durability. Its ultra-thin 2.5mm width makes it perfect for tight spaces without compromising strength.

This bearing handles radial loads up to 176 lbf and operates smoothly in temperatures from -30°C to 110°C. The open design allows easy access for lubrication, ensuring long-lasting performance with minimal maintenance.

Its ABEC-1 tolerance and precise radial clearance (0.0000 – 0.0005″) provide reliable rotation for delicate applications. The all-stainless construction resists corrosion, ideal for harsh environments.

Weighing just 13g, it’s a lightweight solution for robotics, medical devices, or precision instruments where space is limited. Compliant with RoHS standards, it’s also interchangeable with KAYDON bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S09003CS0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.013mm to 0
  • Outer Dia 96 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 2.5 mm
  • Width Tolerance +.000 –.127mm
  • Thin Section Bearings Type UltraSlim Bearings
  • Series 2.5 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 92.2 mm
  • Internal Diameter On Outer Ring (Small Side Face) 93.8 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 176 lbf
  • Static Radial Load 239 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 13.0 g
  • price（$） 256.43

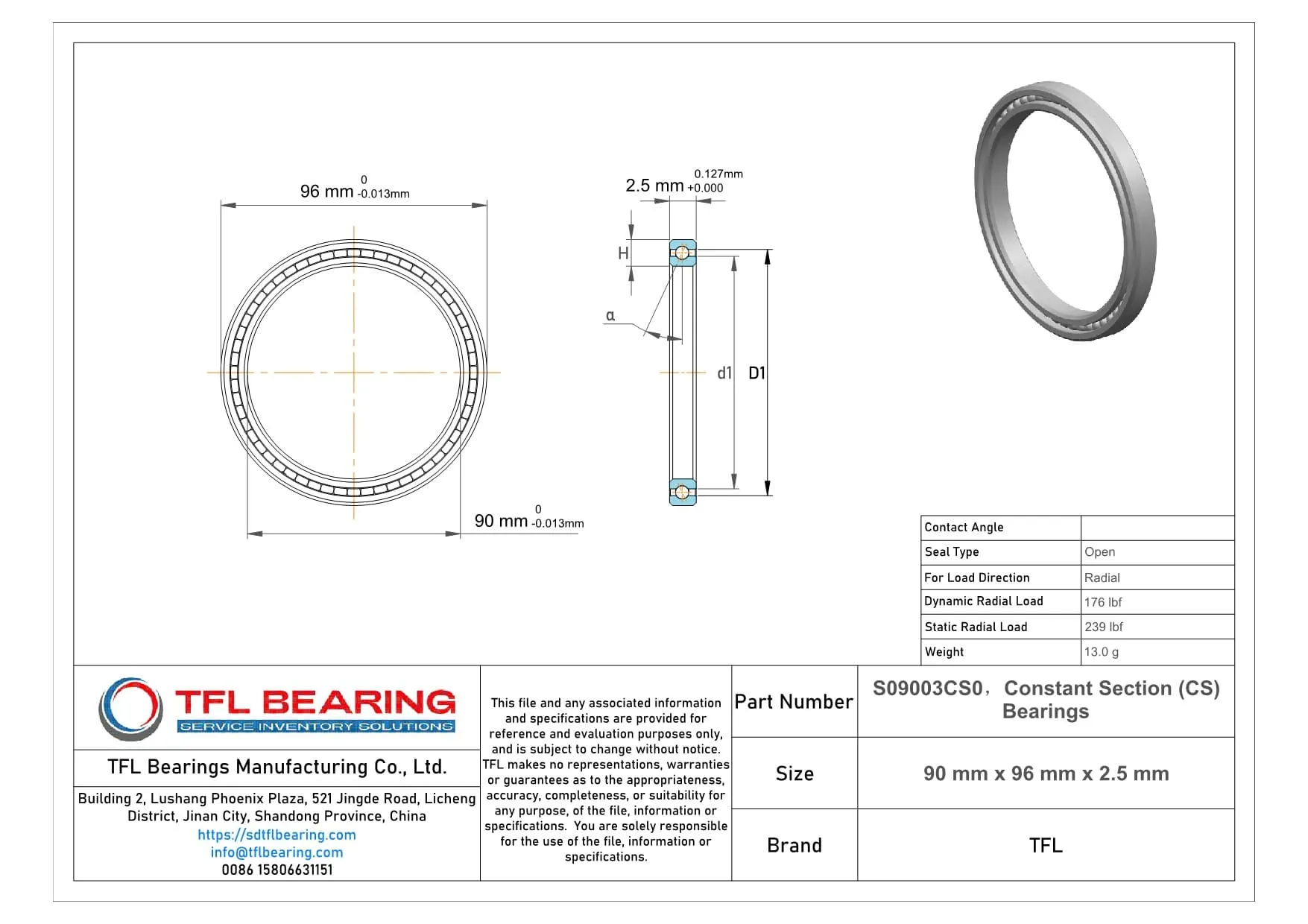

Constant Section (CS) Bearings S09003CS0 dimension drawing
Download DWG Download PDF

Features

How Does S09003CS0 Bearing Ensure Smooth Operation?

S09003CS0 Bearing features a single-row ball design, optimised for radial load applications with a dynamic radial load capacity of 176 lbf.
Its ultra-slim 2.5 mm width makes it ideal for space-constrained installations without compromising performance.

The stainless steel construction of S09003CS0 Bearing resists corrosion, ensuring durability in various environments.
With ABEC-1 tolerance class, it provides reliable precision for smooth and consistent operation.

S09003CS0 Bearing operates efficiently within a temperature range of -30°C to 110°C, suitable for diverse industrial conditions.
Its lightweight design at just 13.0 g reduces overall system weight while maintaining strength.

Application

Practical Applications of S09003CS0 Bearing
S09003CS0 Bearing is commonly used in robotics, especially in compact joints where its ultra-slim design saves space without compromising performance. The stainless steel construction ensures durability in high-movement applications.

In medical imaging devices, S09003CS0 Bearing provides smooth rotation for precise positioning, thanks to its low radial clearance. Its lightweight design also reduces strain on sensitive components.

For automation systems, S09003CS0 Bearing fits well in conveyor guides and linear actuators, where thin sections are needed. The open seal allows for easy lubrication, extending service life in continuous operations.

Consumer electronics like printers benefit from S09003CS0 Bearing’s quiet operation and minimal friction. The metric sizing ensures compatibility with various international device standards.

In aerospace applications, S09003CS0 Bearing’s temperature resistance makes it suitable for instrumentation panels. Its stainless steel materials resist corrosion in demanding environments.
