Constant Section (CS) Bearings NG300CP0

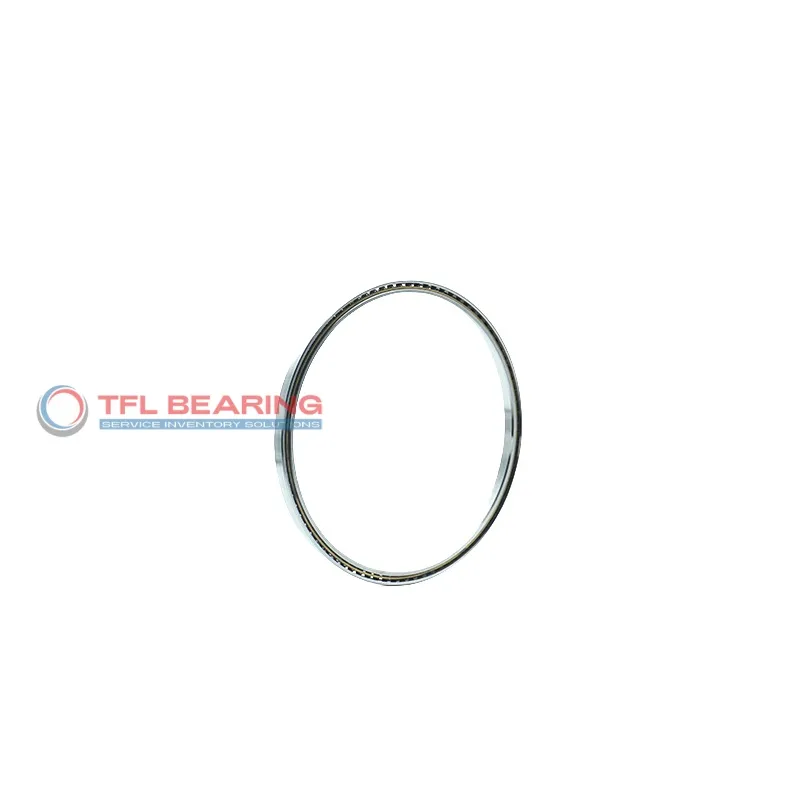

Constant Section (CS) Bearings NG300CP0

The NG300CP0 is a constant section ball bearing with a 30″ bore and 32″ outer diameter, featuring a slim 1″ width. Made from chrome steel with a brass cage, it’s built for radial loads up to 15963 lbf.

Its open design and chromium plating provide durability and easy maintenance. The bearing operates smoothly in temperatures from -30°C to 110°C, making it suitable for various environments.

This model is interchangeable with KAYDON bearings, offering a reliable replacement option. Ideal for applications requiring thin-section bearings, such as robotics or precision machinery.

Weighing 23.3 lbs, it’s robust yet lightweight for its size. Compliant with RoHS standards, it’s a safe and dependable choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NG300CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 30"
  • Bore Dia Tolerance -0.0030"– 0"
  • Outer Dia 32"
  • Outer Dia Tolerance -0.0030"– 0"
  • Width 1"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 30.742"
  • Internal Diameter On Outer Ring (Small Side Face) 31.258"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 15963 lbf
  • Static Radial Load 50890 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 19519 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 23.3 lbs
  • price（$） 1392.01
Constant Section (CS) Bearings NG300CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of NG300CP0 Bearing

NG300CP0 Bearing features a chrome steel construction, ensuring durability and resistance to wear.
Its ABEC-1 tolerance class provides reliable precision for radial load applications.

The brass cage maintains ball alignment, reducing friction and extending service life.
With a dynamic radial load capacity of 15,963 lbf, it handles demanding conditions effortlessly.

NG300CP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its chromium plating enhances corrosion resistance, making it suitable for various environments.

Application

Industrial Uses of NG300CP0 Bearing
NG300CP0 Bearing is commonly used in large industrial machinery, such as rotary tables and turntables, where its thin-section design saves space without compromising load capacity. The chromium plating offers extra protection against corrosion in harsh environments.

Where Is NG300CP0 Bearing Used?
You’ll often find NG300CP0 Bearing in robotics, particularly in articulated arms that require smooth, precise rotation. Its brass cage ensures quiet operation, making it ideal for applications where noise reduction matters.

Built for Heavy-Duty Use: NG300CP0 Bearing
NG300CP0 Bearing handles radial loads effortlessly in construction equipment like cranes, thanks to its high dynamic load rating. The inch sizing makes it a straightforward replacement for compatible models in North American machinery.

Automotive vs Aerospace: Applications of NG300CP0 Bearing
In automotive testing rigs, NG300CP0 Bearing provides reliable performance under constant radial stress. For aerospace applications, its lightweight yet robust construction suits auxiliary systems where precision and durability are key.

Perfect Fit for Automation: NG300CP0 Bearing
NG300CP0 Bearing works well in automated packaging lines, where its consistent performance keeps production running smoothly. The open seal design allows for easy relubrication, extending service life in high-cycle operations.
