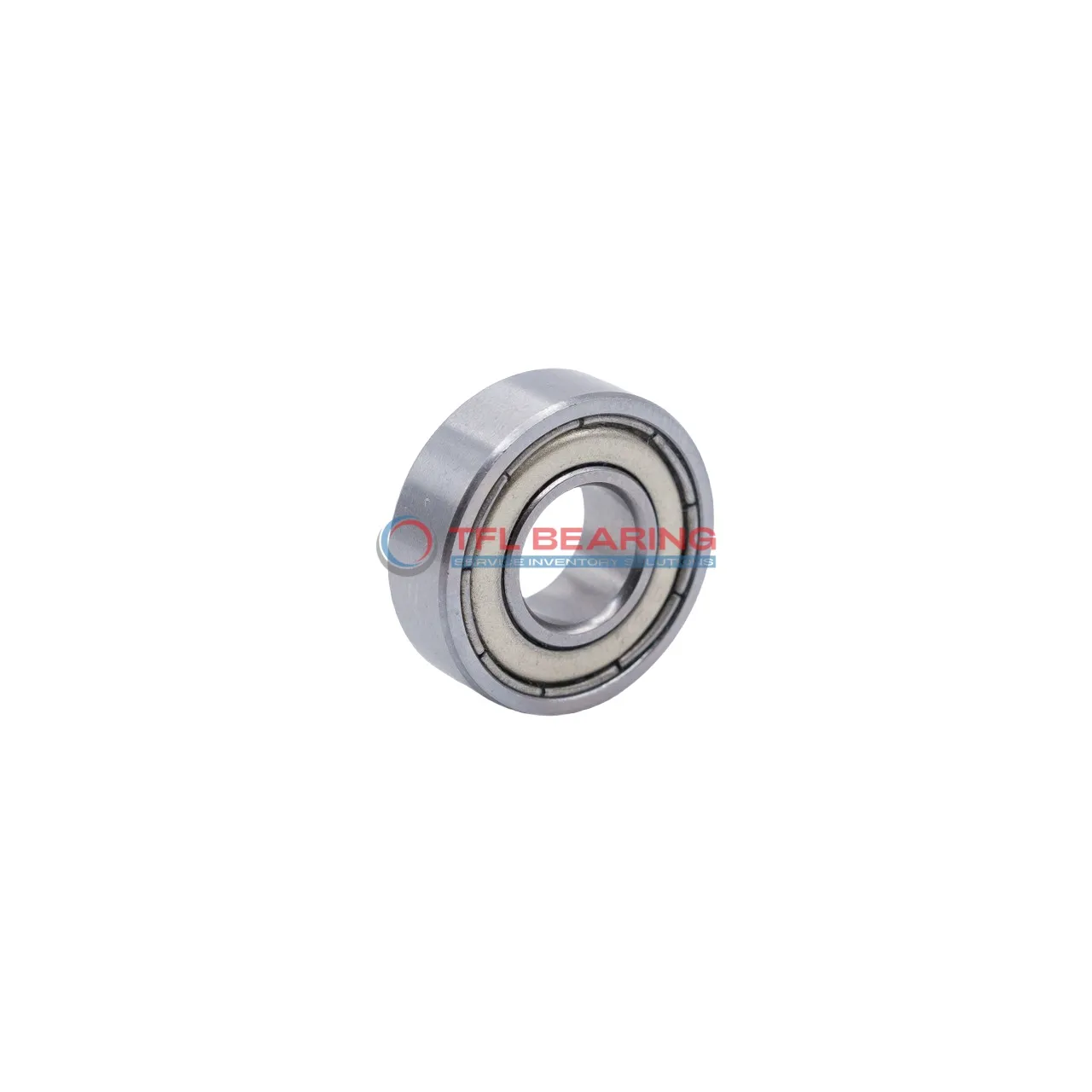

Single Row Deep Groove Ball Bearings 627-2Z/LT

Single Row Deep Groove Ball Bearings 627-2Z/LT

The 627-2Z/LT is a compact single row deep groove ball bearing with a 7mm bore and 22mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 629 lbf and spins efficiently at speeds up to 30,000 RPM.

Its shielded design keeps dirt out while maintaining smooth operation, and the chrome steel cage adds durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical alternative for replacements. It’s well-suited for small motors or appliances where space is limited but performance is key.

Weighing just 12.7g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and reliable choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 627-2Z/LT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 629 lbf
  • Static Radial Load 248 lbf
  • Max Speed 30000 rpm
  • Weight 12.7 g
Single Row Deep Groove Ball Bearings 627-2Z/LT dimension drawing
Download DWG Download PDF

Features

Performance Features of 627-2Z/LT Bearing

627-2Z/LT Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 629 lbf, making it suitable for various applications.

The shielded design of 627-2Z/LT Bearing protects against contaminants, ensuring smooth operation.
With a maximum speed of 30,000 rpm, it delivers efficient performance in high-speed conditions.

627-2Z/LT Bearing operates in temperatures from -30°C to 120°C, adapting to diverse environments.
Its compact size (7 mm×22 mm×7 mm) makes it ideal for space-constrained installations.

Application

Common Applications of 627-2Z/LT Bearing
The 627-2Z/LT Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its shielded design helps keep out dust and debris, extending the bearing’s lifespan.

In automation systems, 627-2Z/LT Bearing is a reliable choice for lightweight robotic arms and conveyor belt rollers. The compact size and radial load capacity make it suitable for tight spaces.

For consumer electronics like printers and cooling fans, 627-2Z/LT Bearing offers smooth, quiet operation. The chrome steel construction ensures durability even with continuous use.

Medical devices such as dental drills and lab equipment benefit from 627-2Z/LT Bearing’s precision and consistent performance. The ABEC 1 tolerance provides reliable accuracy for sensitive applications.

In automotive applications, 627-2Z/LT Bearing can be found in small components like window regulators and wiper motors. Its shielded design protects against contaminants in harsh environments.
