Constant Section (CS) Bearings NG160XP0

Constant Section (CS) Bearings NG160XP0

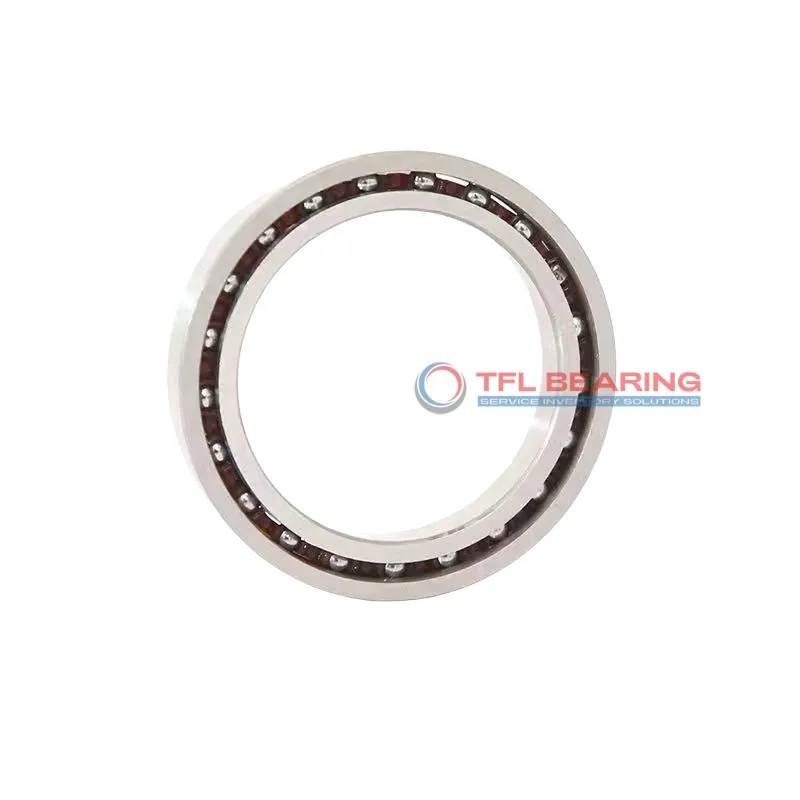

The NG160XP0 is a constant section bearing measuring 16″×18″×1″, designed for four-point contact and made from durable chrome steel. It handles dynamic radial loads up to 15425 lbf and static thrust loads up to 69770 lbf, with a temperature range of -30°C to 110°C.

Its open design and brass cage ensure smooth operation, while the chromium plating adds extra corrosion resistance. The bearing is interchangeable with KAYDON models, making it a versatile choice for replacements.

Ideal for applications requiring high moment loads, such as robotics or heavy machinery, this bearing offers reliable performance. Weighing 12.3 lbs, it’s robust yet manageable for its size. Compliant with RoHS standards, it’s a safe and practical option.

The thin section design and ABEC-1 tolerance class make it suitable for precision tasks. Its lubrication-ready construction ensures easy maintenance, extending its service life in demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NG160XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 16"
  • Bore Dia Tolerance -0.0016"– 0"
  • Outer Dia 18"
  • Outer Dia Tolerance -0.0016"– 0"
  • Width 1"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 16.742"
  • Internal Diameter On Outer Ring (Small Side Face) 17.258"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 15425 lbf
  • Static Radial Load 27910 lbf
  • Static Thrust Load 69770 lbf
  • Static Moment 237200 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 98 lbf
  • Dynamic Thrust Load 25450 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 12.3 lbs
  • price（$） 852.38
Constant Section (CS) Bearings NG160XP0 dimension drawing
Download DWG Download PDF
