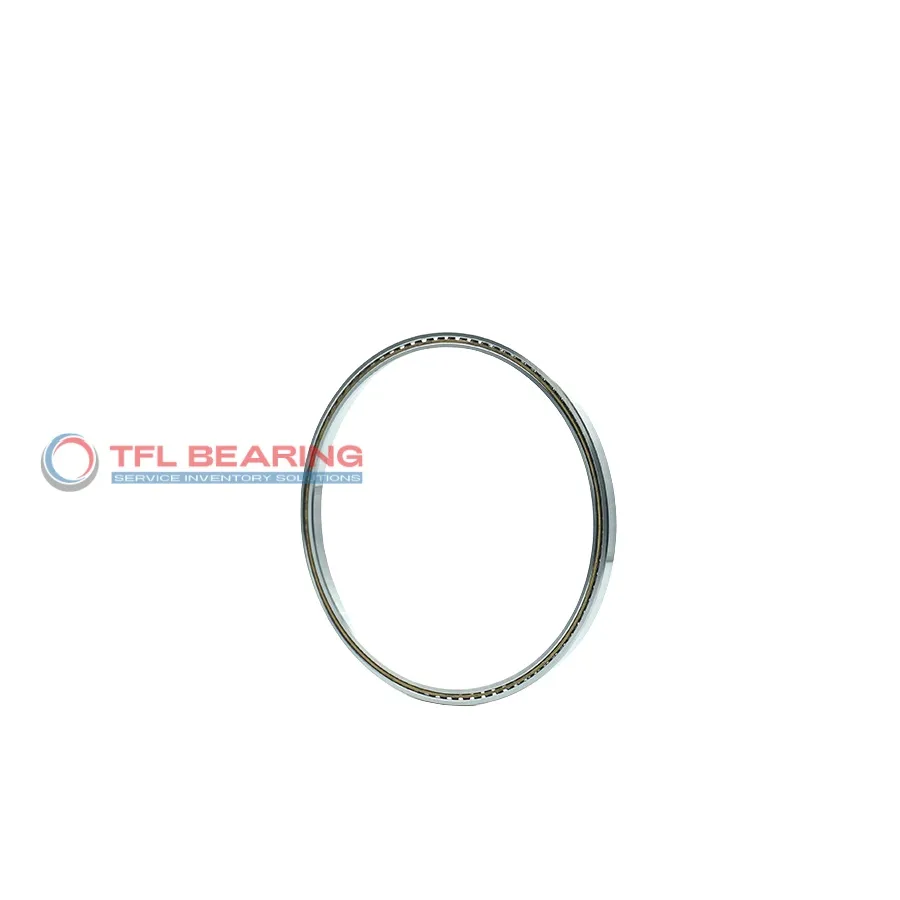

Constant Section (CS) Bearings NG100CP0

Constant Section (CS) Bearings NG100CP0

The NG100CP0 is a constant section ball bearing with a 10″ bore and 12″ outer diameter, featuring a slim 1″ width. Made from chrome steel with a brass cage, it’s designed for radial loads up to 9204 lbf.

Its open design and chromium plating make it resistant to wear, while the ABEC-1 tolerance ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, offering a practical replacement option. Ideal for applications like robotics or precision machinery where space is limited but durability is key.

Weighing 7.9 lbs, it’s lightweight yet sturdy, with a radial clearance of 0.0000 – 0.0005″. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NG100CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 10"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 12"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 10.742"
  • Internal Diameter On Outer Ring (Small Side Face) 11.258"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 9204 lbf
  • Static Radial Load 18060 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 13261 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 7.9 lbs
  • price（$） 324.78
Constant Section (CS) Bearings NG100CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of NG100CP0 Bearing

NG100CP0 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 9204 lbf, ensuring reliable performance in various applications.
The brass cage maintains ball alignment, reducing friction and enhancing durability.
With a temperature range of -30°C to 110°C, it performs well in diverse environments.

How Is NG100CP0 Bearing Engineered for Reliability?

NG100CP0 Bearing features chromium plating, providing excellent corrosion resistance and longevity.
The ABEC-1 tolerance class ensures consistent precision for smooth operation.
Its thin-section design saves space while maintaining high load capacity.
The open seal type allows for easy lubrication and maintenance.

Designed for Durability: NG100CP0 Bearing

NG100CP0 Bearing’s chrome steel construction withstands heavy radial loads up to 18060 lbf statically.
The brass cage reduces wear, extending the bearing’s service life significantly.
Its inch-based measurements make it compatible with various industrial standards.
The chromium-plated surface adds an extra layer of protection against wear.

Steel vs Ceramic Bearings: Strengths of NG100CP0 Bearing

NG100CP0 Bearing uses high-quality chrome steel for both rings and balls, balancing cost and performance.
This material choice provides excellent strength and durability for radial load applications.
The brass cage offers smooth operation and reduced noise levels.
With a width of just 1″, it delivers impressive load capacity in a compact design.

Application

Industrial Uses of NG100CP0 Bearing
NG100CP0 Bearing is commonly used in industrial machinery, especially where space is limited but radial load capacity is essential. Its thin-section design makes it ideal for applications like robotic arms and precision turntables.

Where Is NG100CP0 Bearing Used?
In automation systems, NG100CP0 Bearing ensures smooth movement in equipment like CNC machines and 3D printers. The chromium plating adds durability, making it suitable for high-use environments.

Built for Heavy-Duty Use: NG100CP0 Bearing
NG100CP0 Bearing handles radial loads efficiently in construction equipment, such as crane rotators and conveyor rollers. The brass cage provides stability, even under continuous operation.

Automotive vs Aerospace: Applications of NG100CP0 Bearing
In automotive systems, NG100CP0 Bearing supports components like steering columns, while in aerospace, it aids in actuator mechanisms. Its inch sizing ensures compatibility with various international standards.

Perfect Fit for Automation: NG100CP0 Bearing
NG100CP0 Bearing works well in automated production lines, particularly in packaging machinery. The open seal design allows for easy lubrication, extending its service life.
