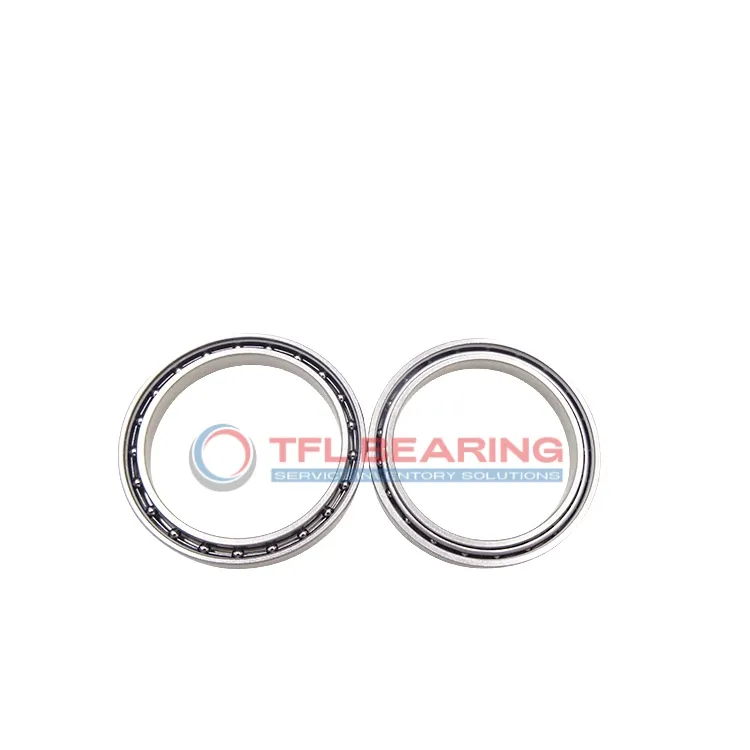

Constant Section (CS) Bearings NG055AR0

Constant Section (CS) Bearings NG055AR0

The NG055AR0 is a constant section bearing measuring 5.5″ by 7.5″ with a slim 1″ width, made from durable chrome steel. Its angular contact design handles radial loads up to 7192 lbf and static thrust loads of 16240 lbf, suitable for moderate-speed applications.

The brass cage ensures smooth operation, while the open seal allows easy lubrication. With a 30° contact angle, it manages combined loads effectively in temperatures from -30°C to 110°C.

This bearing is interchangeable with KAYDON models, offering a reliable alternative. Its chromium plating adds corrosion resistance, ideal for machinery requiring thin-section bearings.

Weighing 4.73 lbs, it’s robust yet compact for its size. Compliant with RoHS standards, it’s a practical choice for industrial equipment or precision mechanisms.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NG055AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 7.5"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 6.242"
  • Internal Diameter On Outer Ring (Small Side Face) 6.758"
  • Internal Diameter On Outer Ring (Large Side Face) 6.989"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 7192 lbf
  • Static Radial Load 12320 lbf
  • Static Thrust Load 16240 lbf
  • Static Moment 35570 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 11352 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 4.73 lbs
  • price（$） 278.64
Constant Section (CS) Bearings NG055AR0 dimension drawing
Download DWG Download PDF

Features

Performance Features of NG055AR0 Bearing

NG055AR0 Bearing is built with chrome steel rings and balls, offering strong resistance to angular contact loads.
Its dynamic radial load capacity reaches 7192 lbf, ensuring reliable performance in various applications.
The brass cage maintains ball alignment, reducing friction and extending operational life.
With a temperature range of -30°C to 110°C, it performs well in diverse environments.

Why Choose NG055AR0 Bearing for Precision Tasks?

NG055AR0 Bearing features a 30° contact angle, providing precise load distribution for angular contact applications.
The ABEC-1 tolerance class ensures consistent performance in precision tasks.
Its chromium plating enhances durability and reduces wear over time.
The open design allows for easy lubrication, maintaining smooth operation.

Designed for Durability: NG055AR0 Bearing

NG055AR0 Bearing’s chrome steel construction ensures long-lasting performance under heavy loads.
The brass cage design minimises wear, contributing to extended service life.
With a static radial load capacity of 12320 lbf, it handles demanding conditions reliably.
Its inch-based measurements make it compatible with various industrial standards.

How Does NG055AR0 Bearing Resist Wear?

NG055AR0 Bearing uses chromium-plated surfaces to reduce friction and resist wear.
The brass cage helps maintain proper ball alignment, preventing premature failure.
Its dynamic radial load rating of 7192 lbf ensures consistent performance over time.
The bearing operates smoothly within a wide temperature range, from -30°C to 110°C.

Ball vs Roller Bearings: Advantages of NG055AR0 Bearing

NG055AR0 Bearing’s ball design provides lower friction compared to roller bearings.
The 30° contact angle offers better load distribution for angular contact applications.
Its chrome steel construction ensures durability and resistance to wear.
With a static thrust load capacity of 16240 lbf, it performs well under heavy loads.

Application

Key Fields for NG055AR0 Bearing
NG055AR0 Bearing is commonly used in industrial robotics, where its angular contact design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even during rapid directional changes.

In aerospace applications, NG055AR0 Bearing’s thin section and chromium plating make it ideal for compact, high-precision systems like satellite mechanisms. Its ABEC-1 tolerance guarantees reliable performance in critical environments.

For medical imaging devices, NG055AR0 Bearing’s chrome steel construction provides durability and consistent rotation. The 30° contact angle helps maintain stability in sensitive equipment like MRI scanners.

Automotive steering systems benefit from NG055AR0 Bearing’s ability to manage moment loads. Its inch sizing makes it a straightforward replacement for many North American vehicle components.
