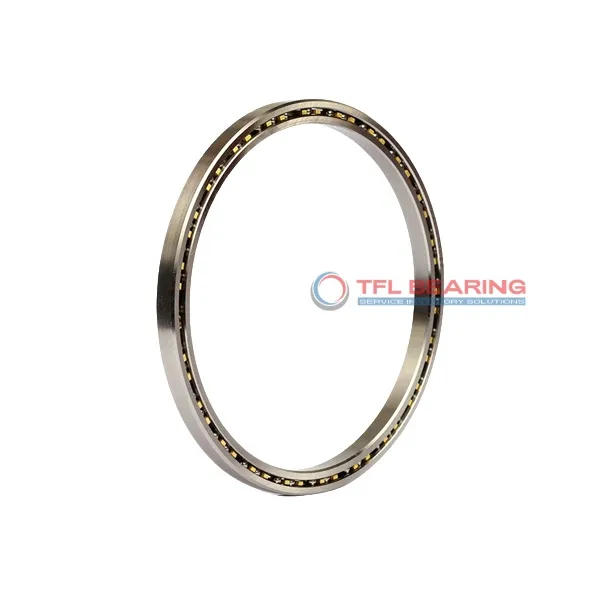

Constant Section (CS) Bearings NF050XP0

Constant Section (CS) Bearings NF050XP0

The NF050XP0 is a constant section bearing measuring 5″ by 6.5″ by 0.75″, crafted from durable chrome steel with brass cage. It handles radial loads up to 5172 lbf and thrust loads up to 7760 lbf, suitable for moderate-speed applications.

Its four-point contact design ensures stability under combined loads, while the open seal allows easy maintenance. The chromium plating adds extra corrosion resistance for harsh environments.

This bearing is interchangeable with KAYDON models, making it a practical choice for replacements. Ideal for robotics or precision machinery where space-saving thin-section bearings are needed.

Weighing 2.3 lbs, it operates in temperatures from -30°C to 110°C and meets RoHS standards. The ABEC-1 tolerance provides reliable performance for most industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NF050XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 6.5"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.75"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NF 3/4" x 3/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.555"
  • Internal Diameter On Outer Ring (Small Side Face) 5.945"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 5172 lbf
  • Static Radial Load 6490 lbf
  • Static Thrust Load 16220 lbf
  • Static Moment 18660 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 11 lbf
  • Dynamic Thrust Load 7760 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 2.3 lbs
  • price（$） 163.3
Constant Section (CS) Bearings NF050XP0 dimension drawing
Download DWG Download PDF

Features

How Does NF050XP0 Bearing Handle Heavy Loads?

NF050XP0 Bearing is built with chrome steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 5172 lbf, ensuring reliable performance in demanding applications.

The brass cage keeps the balls aligned, reducing wear and extending service life.
With a static thrust load of 16220 lbf, it balances durability and efficiency in four-point contact applications.

NF050XP0 Bearing’s chromium plating enhances corrosion resistance, making it suitable for various environments.
Its ABEC-1 tolerance class ensures consistent performance in precision tasks.

Application

Industrial Uses of NF050XP0 Bearing
NF050XP0 Bearing is commonly used in industrial automation, especially in robotic arms and precision machinery where its thin section design saves space without compromising strength. The chromium plating adds extra protection against wear in demanding environments.

Where Is NF050XP0 Bearing Used?
You’ll often find NF050XP0 Bearing in aerospace applications, such as satellite mechanisms, due to its ability to handle both radial and thrust loads efficiently. Its brass cage ensures smooth operation even under high-speed conditions.

Built for Heavy-Duty Use: NF050XP0 Bearing
NF050XP0 Bearing excels in construction equipment like cranes, where its high static moment rating provides stability under heavy loads. The ABEC-1 tolerance makes it reliable for consistent performance in rough conditions.

Automotive vs Aerospace: Applications of NF050XP0 Bearing
In automotive systems, NF050XP0 Bearing supports steering columns, while in aerospace, it’s ideal for control surfaces due to its lightweight yet robust design. The chrome steel construction ensures longevity in both fields.

Perfect Fit for Automation: NF050XP0 Bearing
NF050XP0 Bearing is a go-to choice for CNC machines and 3D printers, where precision and minimal friction are key. Its lubricated design reduces maintenance needs, making it a practical option for continuous operation.
