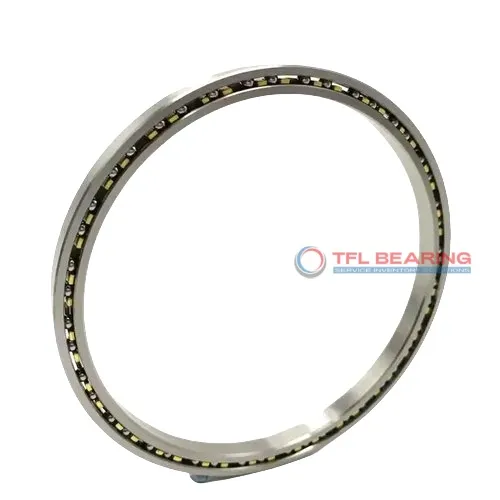

Constant Section (CS) Bearings ND075AR0

Constant Section (CS) Bearings ND075AR0

The ND075AR0 is a constant section bearing measuring 7.5″×8.5″×0.5″, designed for angular contact loads. Made from chrome steel with a brass cage, it offers a good balance of strength and smooth operation.

With a 30° contact angle, it handles radial loads up to 2536 lbf and static thrust loads of 6250 lbf. Its thin section design and chromium plating make it resistant to wear and corrosion.

The open seal allows for easy lubrication, while the ABEC-1 tolerance ensures reliable performance. Suitable for applications like rotary tables or robotics where precision and durability are key.

Weighing 1.42 lbs, it’s lightweight yet robust, and operates well in temperatures from -30°C to 110°C. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number ND075AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 7.5"
  • Bore Dia Tolerance -0.0012"– 0"
  • Outer Dia 8.5"
  • Outer Dia Tolerance -0.0012"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series ND 1/2" x 1/2"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 7.870"
  • Internal Diameter On Outer Ring (Small Side Face) 8.130"
  • Internal Diameter On Outer Ring (Large Side Face) 8.236"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2536 lbf
  • Static Radial Load 6320 lbf
  • Static Thrust Load 6250 lbf
  • Static Moment 18240 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 4608 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.42 lbs
  • price（$） 202.25

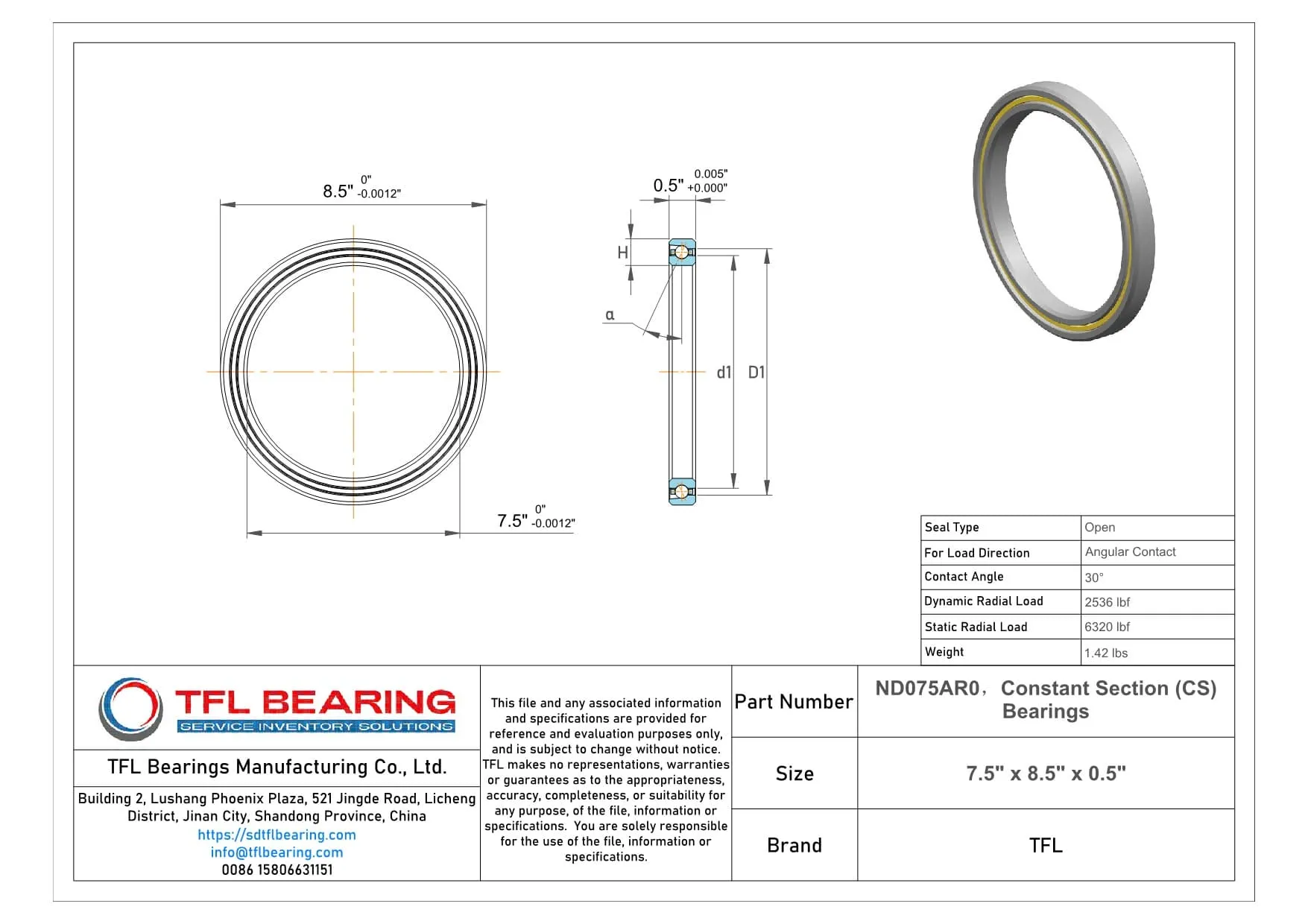

Constant Section (CS) Bearings ND075AR0 dimension drawing
Download DWG Download PDF
