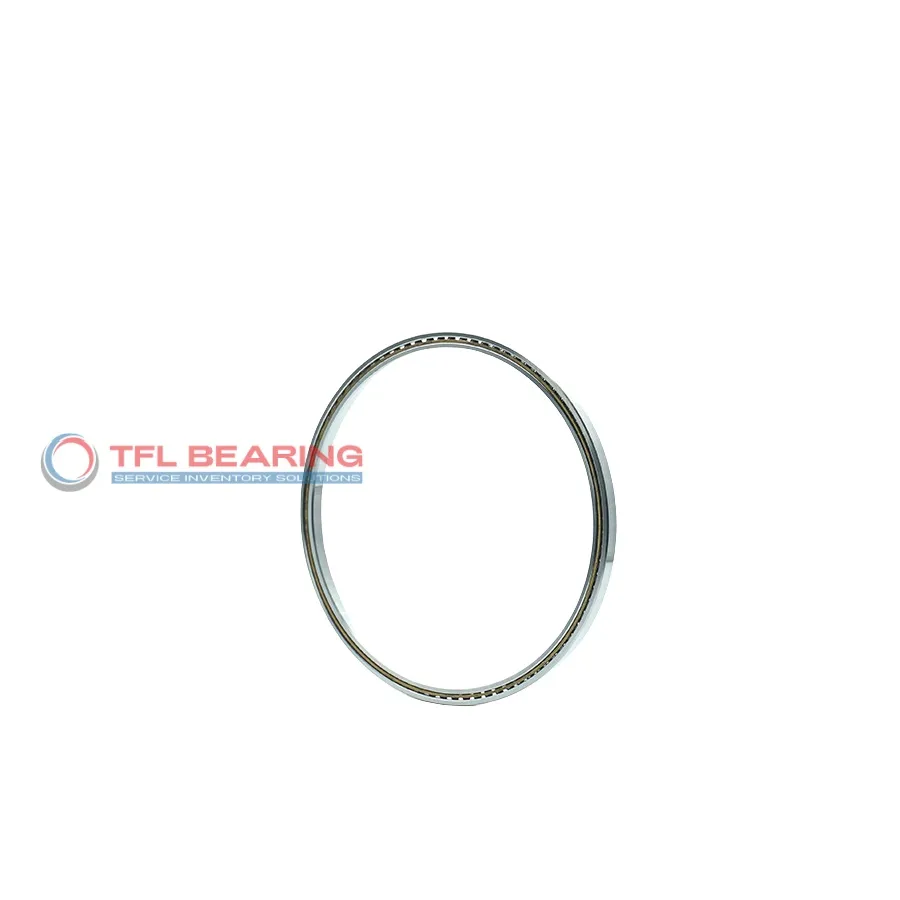

Constant Section (CS) Bearings NA110CP0

Constant Section (CS) Bearings NA110CP0

The NA110CP0 is a thin-section radial ball bearing with an 11″ bore and 11.5″ outer diameter, featuring a compact width of just 0.25″. Made from chrome steel with a brass cage, it’s designed for smooth operation and durability.

This bearing handles radial loads up to 1025 lbf and is suitable for speeds within ABEC-1 tolerance standards. Its open design allows for easy lubrication, while the chromium plating adds corrosion resistance.

The slim profile makes it ideal for space-constrained applications like robotics or precision machinery. With a temperature range of -30°C to 110°C, it performs reliably in various environments.

Weighing only 0.52 lbs, it’s lightweight yet sturdy. Compliant with RoHS standards, it’s interchangeable with KAYDON bearings for convenient replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NA110CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 11"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 11.5"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 11.186"
  • Internal Diameter On Outer Ring (Small Side Face) 11.314"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1025 lbf
  • Static Radial Load 3410 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1846 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.52 lbs
  • price（$） 192.44
Constant Section (CS) Bearings NA110CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of NA110CP0 Bearing

NA110CP0 Bearing is crafted with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 1025 lbf, making it suitable for various applications.

The brass cage ensures smooth ball movement, reducing friction and enhancing longevity.
With a temperature range of -30°C to 110°C, NA110CP0 Bearing performs well in diverse conditions.

NA110CP0 Bearing’s chromium plating provides added resistance to wear and corrosion.
Its ABEC-1 tolerance class ensures consistent performance for precision tasks.

Application

Industrial Uses of NA110CP0 Bearing
NA110CP0 Bearing is commonly used in industrial machinery where space constraints are a concern, thanks to its thin-section design. Its chrome steel construction ensures durability in applications like packaging equipment and rotary tables.

What Makes NA110CP0 Bearing a Preferred Choice?
In robotics, NA110CP0 Bearing provides smooth motion in joints and pivots due to its precise radial load handling. The brass cage adds stability, making it suitable for repetitive movements in automated systems.

Built for Heavy-Duty Use: NA110CP0 Bearing
NA110CP0 Bearing excels in conveyor systems where its ABEC-1 tolerance ensures reliable performance under consistent radial loads. The chromium plating also helps resist corrosion in harsh environments.

Automotive vs Aerospace: Applications of NA110CP0 Bearing
In automotive steering systems, NA110CP0 Bearing offers precise control with its inch sizing. For aerospace applications, its lightweight design and reliability make it a practical choice for instrumentation panels.

Where Is NA110CP0 Bearing Used?
NA110CP0 Bearing is found in medical imaging devices where its thin profile and smooth operation are essential. The open seal design allows for easy lubrication, ensuring long-term performance in critical settings.
