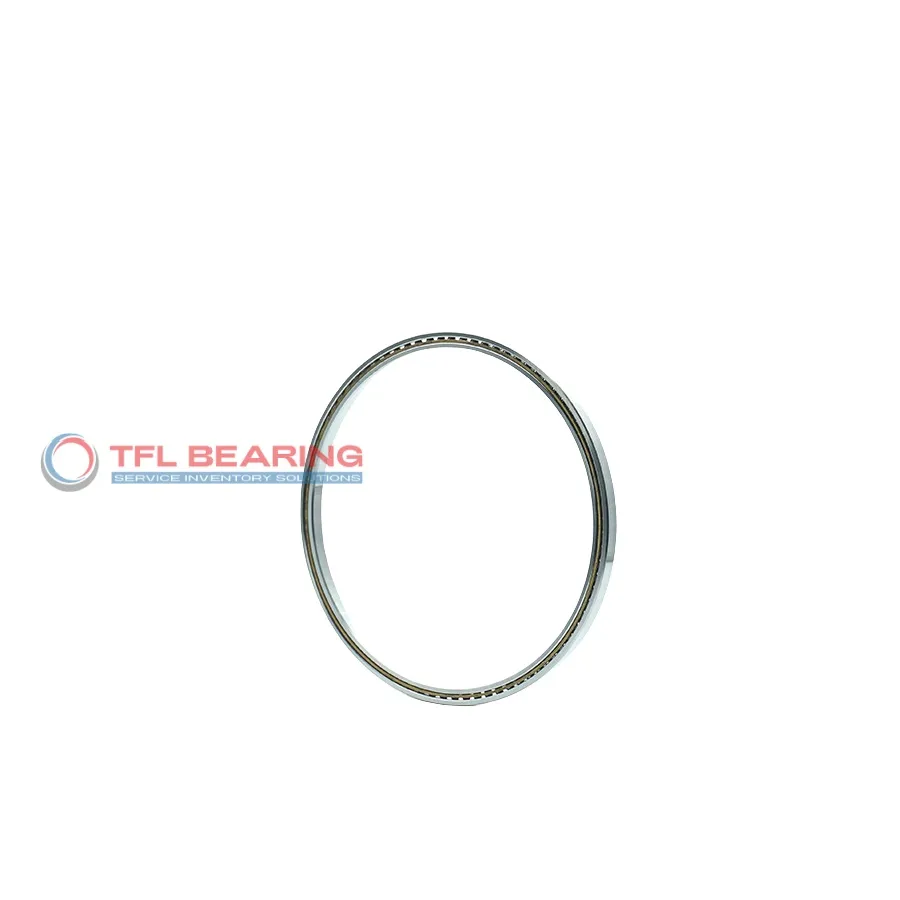

Constant Section (CS) Bearings NA100XP0

Constant Section (CS) Bearings NA100XP0

The NA100XP0 is a thin-section bearing measuring 10″ by 10.5″ with a slim 0.25″ width, made from durable chrome steel. It handles radial loads up to 1289 lbf and thrust loads up to 2180 lbf, with a temperature range of -30°C to 110°C.

Its open design and brass cage ensure smooth operation, while the chromium plating adds extra corrosion resistance. The bearing is ABEC-1 rated for reliable performance in precision applications.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for use in robotics, medical equipment, or aerospace where space is limited but performance is key.

Weighing just 0.5 lbs, it’s lightweight yet robust. Compliant with RoHS standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NA100XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 10"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 10.5"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 10.186"
  • Internal Diameter On Outer Ring (Small Side Face) 10.314"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1289 lbf
  • Static Radial Load 3110 lbf
  • Static Thrust Load 7780 lbf
  • Static Moment 15940 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 4 lbf
  • Dynamic Thrust Load 2180 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.5 lbs
  • price（$） 205.33

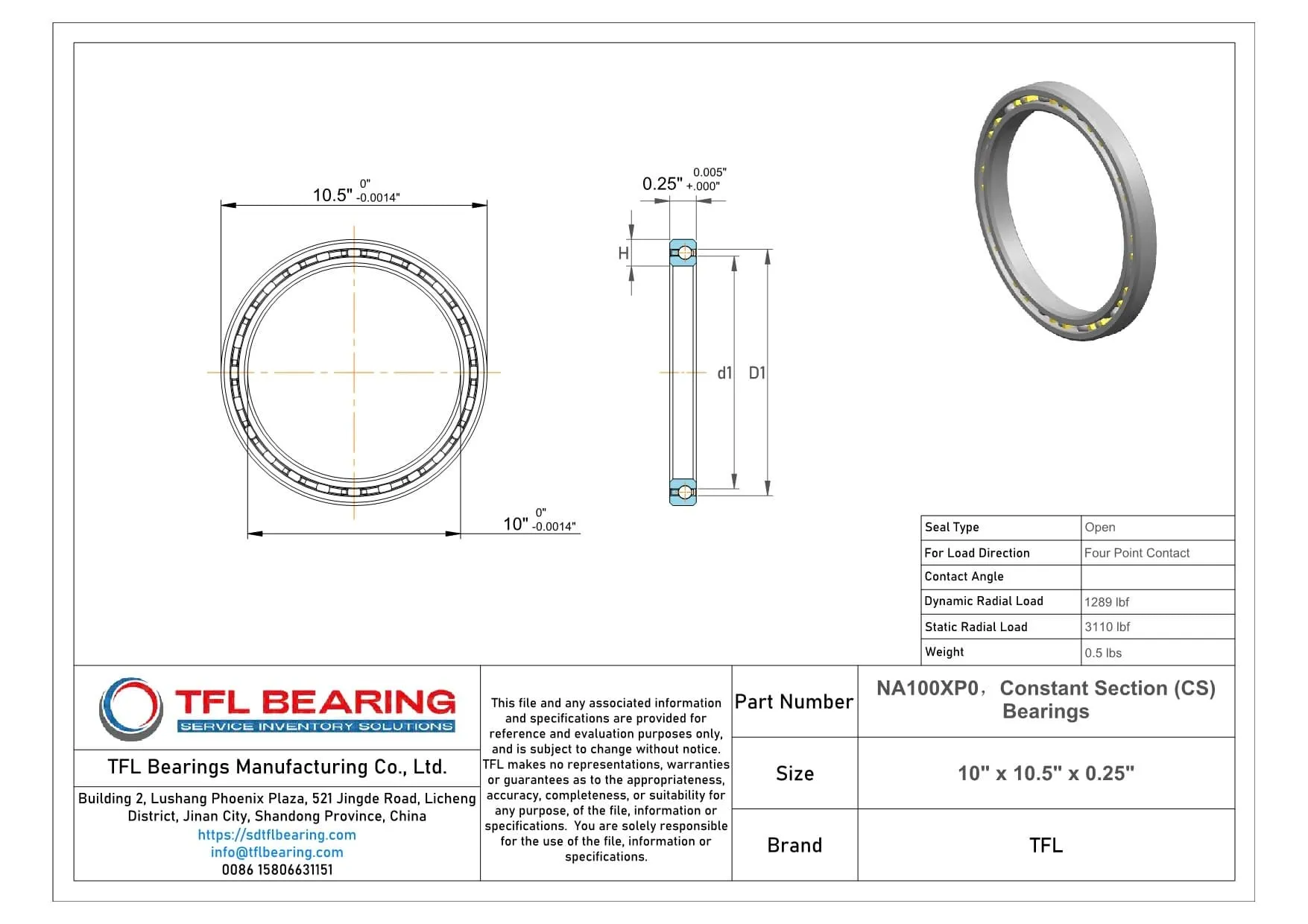

Constant Section (CS) Bearings NA100XP0 dimension drawing
Download DWG Download PDF
