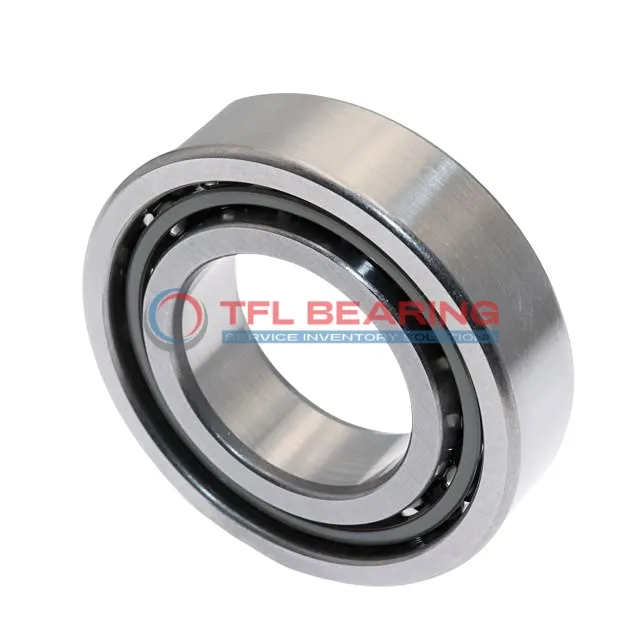

Super Precision Angular Contact Ball Bearings 7210 ACD/P4ADFB

Super Precision Angular Contact Ball Bearings 7210 ACD/P4ADFB

The 7210 ACD/P4ADFB is a super precision angular contact ball bearing with a 50mm bore and 90mm outer diameter, crafted from high-quality chrome steel. It’s designed for angular contact loads and comes in a matched set of two bearings arranged back-to-back (DF).

This bearing handles radial loads up to 15502 lbf and operates smoothly at speeds up to 46,000 RPM. Its light preload (Class B) ensures quiet and precise performance, ideal for high-accuracy applications.

The open seal design allows for easy lubrication, while the phenolic cage enhances durability. With a 25° contact angle, it’s well-suited for combined radial and axial loads.

Perfect for precision machinery like CNC spindles or high-speed tooling, where tight tolerances (P4A) are required. It works in temperatures from -30°C to 110°C and weighs just 0.92kg. Interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7210 ACD/P4ADFB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 40 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 12.7 mm
  • Ball Qty 15
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings >< DF
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 15502 lbf
  • Static Radial Load 14738 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 46000 rpm
  • Weight 0.92 kg
Super Precision Angular Contact Ball Bearings 7210 ACD/P4ADFB dimension drawing
Download DWG Download PDF

Features

How Is 7210 ACD/P4ADFB Bearing Engineered for Reliability?

7210 ACD/P4ADFB Bearing features a 25° contact angle, optimised for handling combined radial and axial loads.
The matched DF arrangement of two bearings ensures balanced load distribution and stability.

Constructed from chrome steel, 7210 ACD/P4ADFB Bearing offers excellent durability and resistance to wear.
Its phenolic cage maintains precise ball alignment, even at high speeds up to 46,000 rpm.

7210 ACD/P4ADFB Bearing operates smoothly in temperatures ranging from -30°C to 110°C.
The light preload (Class B) enhances performance while reducing vibration and noise.

With a dynamic radial load capacity of 15,502 lbf, 7210 ACD/P4ADFB Bearing delivers reliable performance.
Its P4A tolerance class guarantees exceptional precision for demanding applications.

Application

Key Fields for 7210 ACD/P4ADFB Bearing
7210 ACD/P4ADFB Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The light preload and P4A tolerance class make it suitable for applications demanding minimal vibration.

In automotive applications, 7210 ACD/P4ADFB Bearing supports gearbox systems, providing smooth power transmission under radial and axial loads. Its phenolic cage offers durability in high-speed scenarios.

For robotics, 7210 ACD/P4ADFB Bearing excels in articulated arms, where its matched arrangement enhances stability. The chrome steel construction ensures long service life even in continuous operation.

Medical imaging devices benefit from 7210 ACD/P4ADFB Bearing’s precision, ensuring quiet and reliable performance. The open design allows for easy lubrication maintenance.

In aerospace systems, 7210 ACD/P4ADFB Bearing handles both radial and thrust loads in control mechanisms. Its temperature range makes it adaptable to various operational environments.
