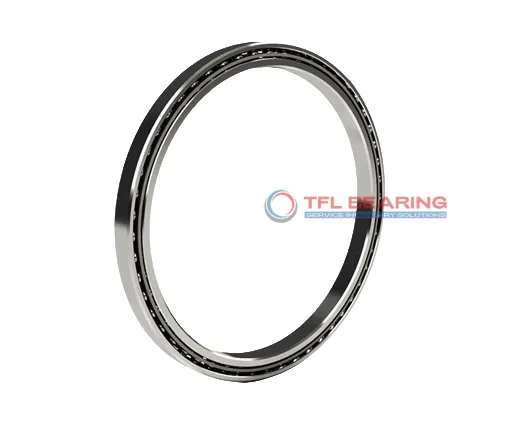

Constant Section (CS) Bearings NA047AR0

Constant Section (CS) Bearings NA047AR0

The NA047AR0 is a thin-section angular contact bearing measuring 4.75″ by 5.25″ with a slim 0.25″ width, made from durable chrome steel. It handles radial loads up to 657 lbf and static thrust loads of 1640 lbf, suitable for moderate-speed applications.

Its single-row design with a 30° contact angle ensures smooth operation, while the brass cage adds durability. The open seal type allows for easy lubrication and maintenance.

This bearing is interchangeable with KAYDON models, making it a versatile choice for replacements. Ideal for precision equipment like robotics or medical devices where space and weight are critical.

Weighing just 0.22 lbs, it’s lightweight yet robust. Compliant with RoHS standards, it operates in temperatures from -30°C to 110°C. The chromium plating offers extra corrosion resistance for long-term use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NA047AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 4.75"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 5.25"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 4.936"
  • Internal Diameter On Outer Ring (Small Side Face) 5.064"
  • Internal Diameter On Outer Ring (Large Side Face) 5.115"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 657 lbf
  • Static Radial Load 1750 lbf
  • Static Thrust Load 1640 lbf
  • Static Moment 5060 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1437 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.22 lbs
  • price（$） 141.14
Constant Section (CS) Bearings NA047AR0 dimension drawing
Download DWG Download PDF

Features

How Does NA047AR0 Bearing Handle Angular Contact Loads?

NA047AR0 Bearing features a 30° contact angle, optimised for angular contact loads and smooth operation.
Its chrome steel construction ensures durability, while the brass cage maintains ball alignment for reduced wear.

With a dynamic radial load capacity of 657 lbf, NA047AR0 Bearing performs reliably in various applications.
The ABEC-1 tolerance class guarantees consistent precision, suitable for demanding tasks.

NA047AR0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its chromium plating enhances corrosion resistance, extending service life in challenging environments.

Application

Key Fields for NA047AR0 Bearing
NA047AR0 Bearing is commonly used in robotics, particularly for joints requiring precise angular movement. Its thin-section design saves space while maintaining load capacity.

In aerospace applications, NA047AR0 Bearing helps in control mechanisms due to its consistent performance under varying pressures. The chromium plating adds extra corrosion resistance.

For optical equipment like telescope mounts, NA047AR0 Bearing provides smooth rotation with minimal friction. The brass cage ensures quiet operation, which is essential in sensitive environments.

What Makes NA047AR0 Bearing a Preferred Choice?
NA047AR0 Bearing works well in packaging machinery where quick, repetitive motions are needed. Its ABEC-1 tolerance balances precision and cost-effectiveness.

The bearing’s 30° contact angle makes it suitable for medical imaging devices requiring stable support. Chrome steel construction ensures long-term reliability in sterile environments.

Built for Heavy-Duty Use: NA047AR0 Bearing
NA047AR0 Bearing handles radial and thrust loads in industrial mixers effectively. The lubricated design reduces maintenance needs in food processing equipment.

Its compatibility with KAYDON models makes NA047AR0 Bearing a versatile replacement option. The inch sizing simplifies integration into North American machinery systems.

Automotive vs Aerospace: Applications of NA047AR0 Bearing
In automotive steering systems, NA047AR0 Bearing assists with smooth directional changes. The moment load rating ensures stability during sharp turns.

For satellite components, NA047AR0 Bearing’s temperature range (-30°C to 110°C) suits orbital conditions. The chromium plating prevents degradation in vacuum environments.
