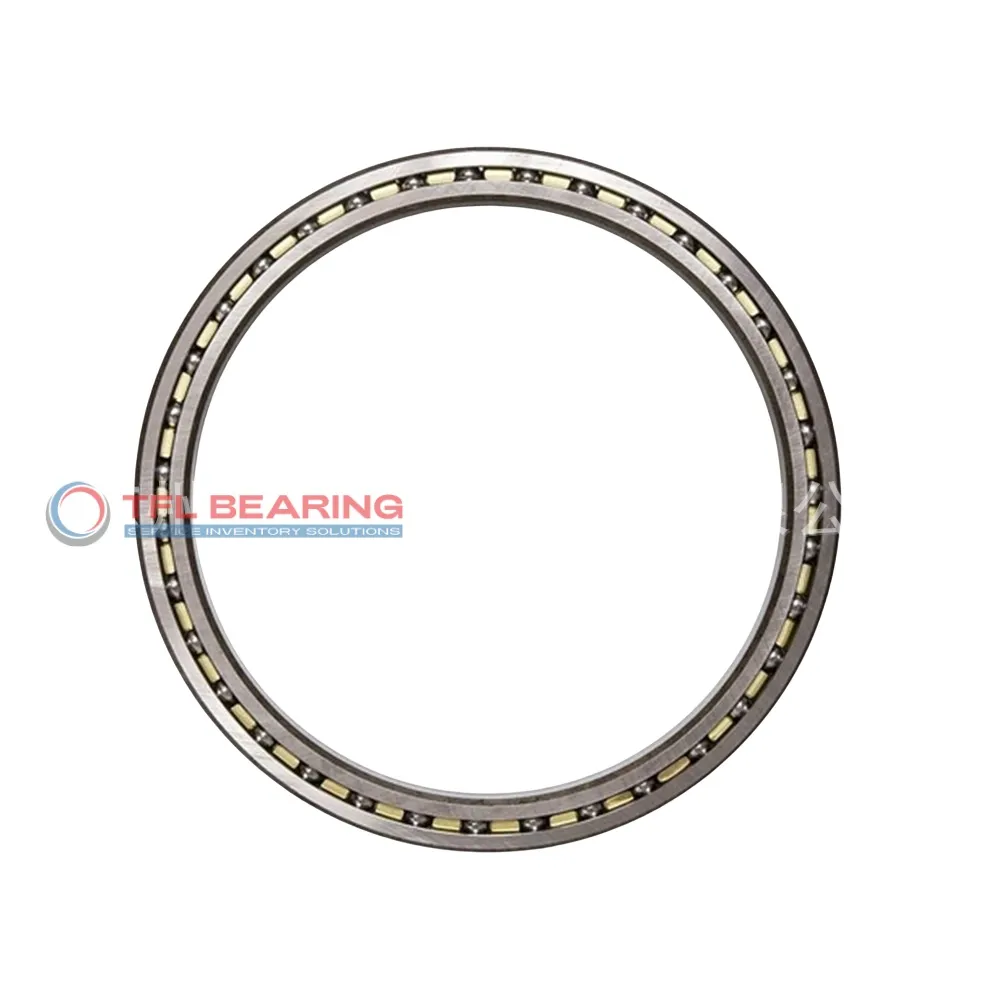

Constant Section (CS) Bearings KG065XP0

Constant Section (CS) Bearings KG065XP0

The KG065XP0 is a thin-section ball bearing measuring 6.5″ by 8.5″ by 1″, made from durable chrome steel with a brass cage. It handles radial loads up to 9713 lbf and thrust loads up to 14530 lbf, making it versatile for various applications.

Its open design allows easy lubrication, while the ABEC-1 tolerance ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, offering a practical replacement option. Ideal for use in machinery where space is limited but high load capacity is needed.

Weighing 5.4 lbs, it’s lightweight yet robust, compliant with RoHS standards for safe use. Suitable for applications requiring precise movement and durability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number KG065XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 6.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 8.5"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Open Bearings
  • Series KG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 7.242"
  • Internal Diameter On Outer Ring (Small Side Face) 7.758"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 9713 lbf
  • Static Radial Load 12040 lbf
  • Static Thrust Load 30100 lbf
  • Static Moment 45140 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 27 lbf
  • Dynamic Thrust Load 14530 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 5.4 lbs
  • price（$） 199.44
Constant Section (CS) Bearings KG065XP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of KG065XP0 Bearing

KG065XP0 Bearing is designed with chrome steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 9713 lbf, ensuring reliable performance in demanding applications.
The brass cage maintains ball alignment, reducing wear and extending service life.
With a temperature range of -30°C to 110°C, it performs well in various environments.

How Is KG065XP0 Bearing Engineered for Reliability?

KG065XP0 Bearing features a four-point contact design, providing excellent load distribution.
The chrome steel construction ensures durability and resistance to wear.
Its ABEC-1 tolerance class guarantees consistent performance in precision applications.
The open seal type allows for easy lubrication and maintenance.

Built for Durability: KG065XP0 Bearing

KG065XP0 Bearing’s thin section design saves space without compromising strength.
It handles static thrust loads up to 30100 lbf, making it suitable for heavy-duty tasks.
The brass cage enhances smooth operation and reduces friction.
With a weight of 5.4 lbs, it balances durability and ease of use.

Steel vs Ceramic Bearings: Strengths of KG065XP0 Bearing

KG065XP0 Bearing uses chrome steel for both rings and balls, ensuring robust performance.
Its dynamic moment rating of 27327 lbf makes it ideal for applications with rotational forces.
The brass cage provides stability and reduces operational noise.
With a width of just 1″, it fits into compact spaces while maintaining high load capacity.

Application

Common Applications of KG065XP0 Bearing
KG065XP0 Bearing is widely used in industrial equipment like rotary tables and indexing devices, where its four-point contact design handles combined loads efficiently. The brass cage ensures smooth rotation even in demanding conditions.

In robotics, KG065XP0 Bearing provides precise movement for robotic arms and automation systems, thanks to its thin-section construction. Its inch sizing makes it compatible with many North American machinery standards.

For medical imaging devices, KG065XP0 Bearing’s chrome steel rings offer reliable performance under radial and moment loads. The open design allows for easy lubrication, extending service life in critical applications.

KG065XP0 Bearing also fits well in aerospace components like satellite mechanisms, where its lightweight yet sturdy build meets strict industry requirements. The ABEC-1 tolerance ensures consistent operation without unnecessary complexity.
