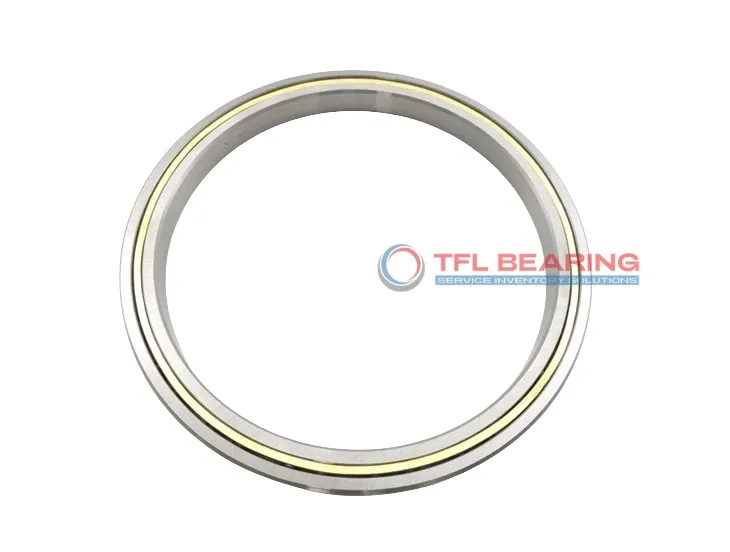

Constant Section (CS) Bearings K34013CP0

Constant Section (CS) Bearings K34013CP0

The K34013CP0 is a constant section radial ball bearing with a slim 13mm width and dimensions of 340mm by 366mm. Made from chrome steel, it handles radial loads up to 4164 lbf and fits well in tight spaces.

Its open design and brass cage ensure smooth operation, while the ABEC-1 tolerance class offers reliable precision. The bearing works in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications like robotics or medical equipment where slim profiles are needed.

Weighing 1.01kg, it’s lightweight yet sturdy. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K34013CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 340 mm
  • Bore Dia Tolerance -0.036mm to 0
  • Outer Dia 366 mm
  • Outer Dia Tolerance -0.036mm to 0
  • Width 13 mm
  • Width Tolerance +.000 –.254mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 13 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 349.7 mm
  • Internal Diameter On Outer Ring (Small Side Face) 356.3 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 4164 lbf
  • Static Radial Load 11827 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 5368 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.01 Kg
  • price（$） 369.78
Constant Section (CS) Bearings K34013CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of K34013CP0 Bearing

K34013CP0 Bearing features a thin-section design with a 13 mm width, making it ideal for space-constrained applications.
Its chrome steel rings and balls provide strong resistance to radial loads, ensuring reliable performance.

The brass cage maintains ball alignment, reducing friction and extending service life.
With a dynamic radial load capacity of 4164 lbf, it handles demanding tasks efficiently.

K34013CP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class ensures consistent performance in precision applications.

Application

Where Is K34013CP0 Bearing Used?
K34013CP0 Bearing is commonly seen in industrial automation, especially in robotic arms and precision machinery, where its thin-section design saves space without compromising load capacity. The open seal allows for easy lubrication, extending its service life in continuous operation.
In medical imaging devices, K34013CP0 Bearing’s chrome steel construction ensures smooth rotation, critical for accurate diagnostics. Its brass cage reduces friction, making it reliable for high-precision applications.
For aerospace applications, K34013CP0 Bearing handles radial loads in control systems, where its lightweight design and durability are key. The ABEC-1 tolerance ensures consistent performance under varying conditions.
