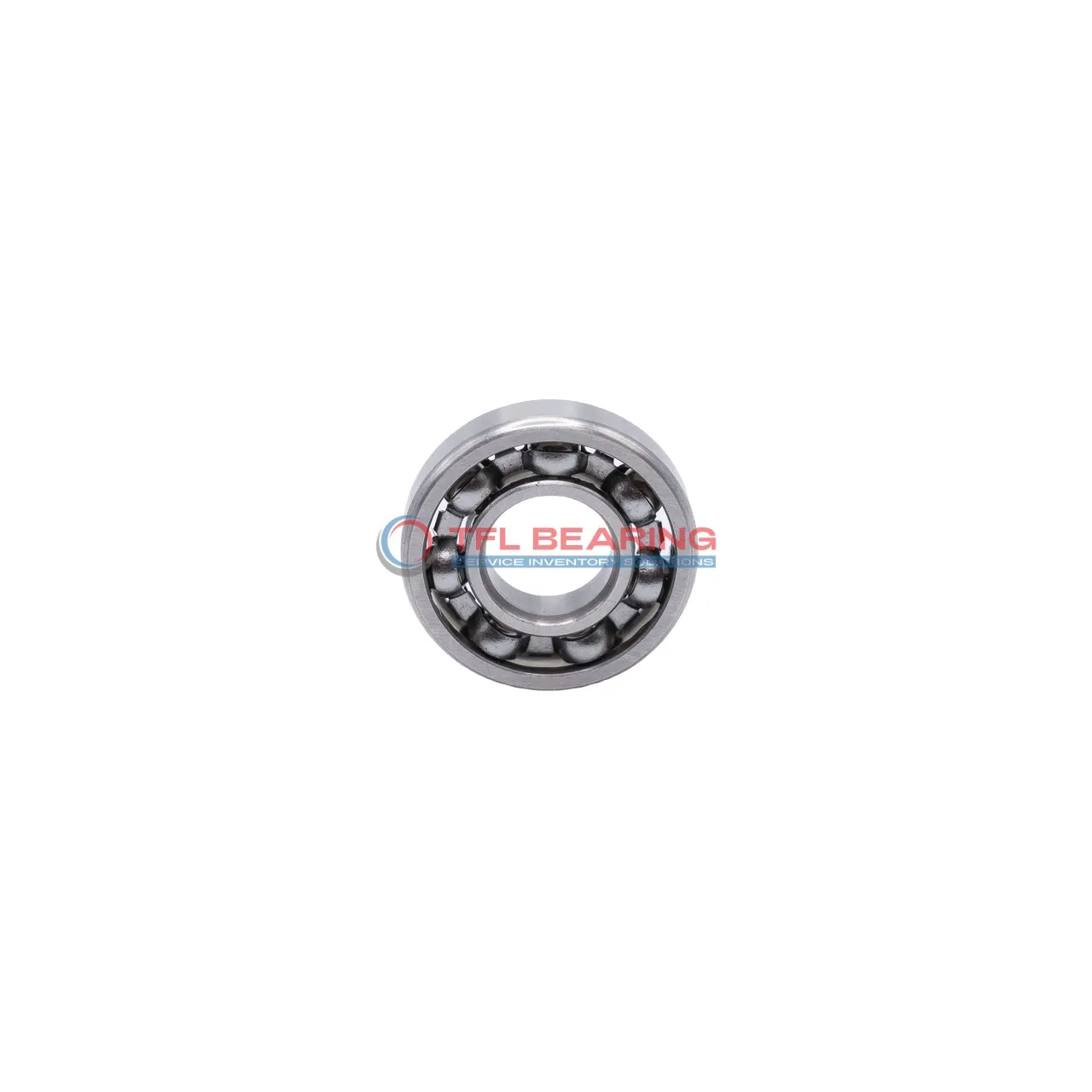

Stainless Steel Deep Groove Ball Bearings W 61710

Stainless Steel Deep Groove Ball Bearings W 61710

The W 61710 is a compact stainless steel deep groove ball bearing, measuring 50mm by 62mm by 6mm. It handles radial loads up to 344 lbf and can spin at speeds up to 13,000 RPM.

Made entirely from stainless steel, it resists corrosion and works in temperatures from -30°C to 120°C. Its open design allows for easy lubrication and maintenance.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for small machinery or applications where space is limited, like electric motors or medical devices.

Weighing just 0.033kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61710
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 344 lbf
  • Static Radial Load 344 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 0.033 kg
Stainless Steel Deep Groove Ball Bearings W 61710 dimension drawing
Download DWG Download PDF

Features

Why Choose W 61710 Bearing for Precision Tasks?

W 61710 Bearing features a stainless steel construction, offering excellent resistance to corrosion and wear.
Its compact design, with dimensions of 50 mm×62 mm×6 mm, makes it ideal for space-constrained applications.
The single-row deep groove design ensures smooth radial load handling, with a dynamic radial load capacity of 344 lbf.
With a maximum speed of 13,000 rpm, it delivers reliable performance in high-speed operations.

Application

Industrial Uses of W 61710 Bearing
W 61710 Bearing is commonly used in industrial equipment like small pumps and electric motors, where its compact size and stainless steel construction offer reliable performance. The open design allows for easy lubrication, making it suitable for environments requiring frequent maintenance.

What Makes W 61710 Bearing a Preferred Choice?
In automotive applications, W 61710 Bearing fits well in components such as alternators and small gearboxes, thanks to its radial load capacity. The metric dimensions ensure compatibility with a variety of vehicle models, both in Europe and Asia.

Perfect Fit for Automation: W 61710 Bearing
For automation systems, W 61710 Bearing works efficiently in robotic arms and conveyor belts, where its low-profile design is an advantage. The stainless steel material also resists corrosion, making it ideal for cleanroom or food processing environments.

Medical vs Industrial: Where W 61710 Bearing Excels
In medical devices, W 61710 Bearing is often found in dental tools and lab equipment, where precision and hygiene are key. Its stainless steel build ensures durability and compliance with strict industry standards.

Where to Use W 61710 Bearing
For consumer electronics like printers and small fans, W 61710 Bearing provides smooth operation with minimal noise. The lightweight design and corrosion resistance make it a practical choice for everyday devices.
