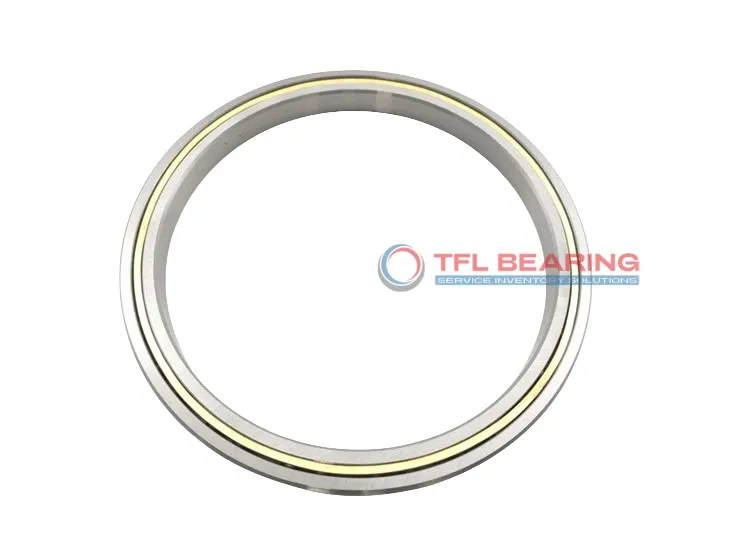

Constant Section (CS) Bearings K20020XP0

Constant Section (CS) Bearings K20020XP0

The K20020XP0 is a constant section ball bearing with a 200mm bore and 240mm outer diameter, featuring a slim 20mm width. Made from chrome steel with a brass cage, it’s built to handle both radial and thrust loads efficiently.

This bearing can manage dynamic radial loads up to 7295 lbf and static thrust loads up to 27253 lbf, making it suitable for heavy-duty applications. Its open design allows for easy lubrication and maintenance.

With a temperature range of -30°C to 110°C, it performs reliably in various environments. The ABEC-1 tolerance ensures consistent performance without being overly precise for general use.

Ideal for machinery requiring slim profile bearings, such as robotics or medical equipment. It’s interchangeable with KAYDON bearings, offering flexibility for replacements. Weighing 1.57kg, it’s lightweight yet durable for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K20020XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 200 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 20 mm
  • Width Tolerance +.000 –.254mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 20 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 215 mm
  • Internal Diameter On Outer Ring (Small Side Face) 225 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 7295 lbf
  • Static Radial Load 10901 lbf
  • Static Thrust Load 27253 lbf
  • Static Moment 1199 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 2678 lbf
  • Dynamic Thrust Load 11309 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 1.57 Kg
  • price（$） 184.3
Constant Section (CS) Bearings K20020XP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of K20020XP0 Bearing

K20020XP0 Bearing is designed with chrome steel rings and balls, ensuring strong resistance to heavy loads.
Its dynamic radial load capacity reaches 7295 lbf, making it suitable for demanding applications.

The brass cage maintains ball alignment, reducing wear and extending the bearing’s service life.
With a width of just 20 mm, K20020XP0 Bearing offers a slim profile without compromising strength.

K20020XP0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its open design allows for easy lubrication, ensuring smooth performance over time.

Application

Essential Roles of K20020XP0 Bearing
K20020XP0 Bearing is commonly used in industrial automation, especially in robotic arms and precision machinery where its thin-section design saves space without compromising load capacity. The brass cage ensures smooth rotation even under continuous operation.

In aerospace applications, K20020XP0 Bearing handles both radial and moment loads efficiently, making it suitable for aircraft control systems. Its chrome steel construction provides durability in demanding environments.

For medical imaging devices, K20020XP0 Bearing offers reliable performance due to its precise ABEC-1 tolerance. The open seal design allows for easy lubrication, extending service life in high-use scenarios.

Where Is K20020XP0 Bearing Used?
You’ll often find K20020XP0 Bearing in packaging machinery, where its four-point contact design handles varying loads with ease. The metric sizing ensures compatibility with European equipment standards.

In semiconductor manufacturing, K20020XP0 Bearing supports wafer handling systems, thanks to its low-profile design and consistent performance. The chrome steel balls reduce friction, enhancing precision.

Built for Heavy-Duty Use: K20020XP0 Bearing
K20020XP0 Bearing excels in construction equipment, particularly in crane slewing rings where its static thrust load capacity is crucial. The brass cage adds corrosion resistance in outdoor environments.

For renewable energy systems like wind turbine yaw drives, K20020XP0 Bearing provides reliable operation under dynamic loads. Its wide temperature range ensures performance in varying climates.
