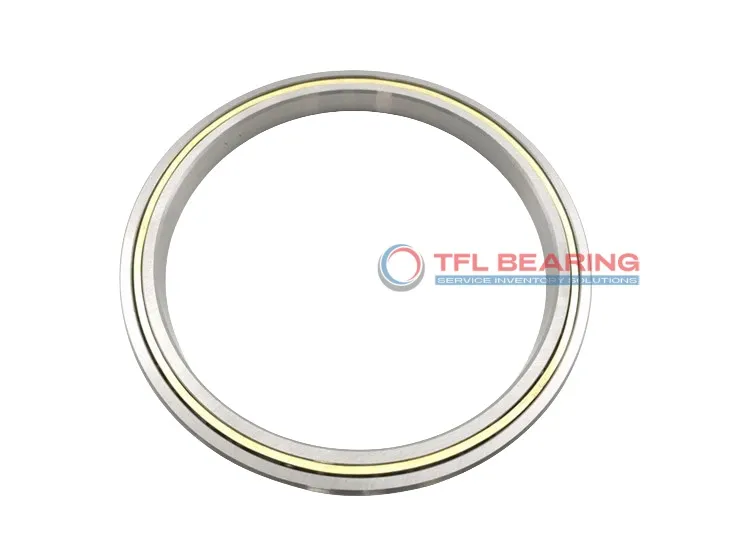

Constant Section (CS) Bearings K20013CP0

Constant Section (CS) Bearings K20013CP0

The K20013CP0 is a constant section ball bearing with a slim 13mm width, featuring a 200mm bore and 226mm outer diameter. Made from durable chrome steel, it handles radial loads up to 3111 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design and brass cage ensure reliable performance, while the ABEC-1 tolerance class offers good precision for general applications. The bearing comes pre-lubricated for easy installation and immediate use.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for use in machinery where space is limited but radial load capacity is needed, such as robotics or medical equipment.

Weighing just 0.61kg, it’s lightweight yet sturdy. Compliant with RoHS standards, it’s a safe and reliable option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K20013CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 200 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 226 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 13 mm
  • Width Tolerance +.000 –.254mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 13 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 209.7 mm
  • Internal Diameter On Outer Ring (Small Side Face) 216.3 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 3111 lbf
  • Static Radial Load 7125 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 4447 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.61 Kg
  • price（$） 132.85
Constant Section (CS) Bearings K20013CP0 dimension drawing
Download DWG Download PDF

Features

How Does K20013CP0 Bearing Ensure Smooth Radial Load Handling?

K20013CP0 Bearing features a single-row design with chrome steel rings and balls, optimised for radial load applications.

Its dynamic radial load capacity of 3111 lbf ensures reliable performance in various industrial settings.

The brass cage maintains ball alignment, reducing friction and enhancing durability.

With a temperature range of -30°C to 110°C, it performs consistently in diverse environments.

Application

Industrial Uses of K20013CP0 Bearing
K20013CP0 Bearing is commonly used in industrial machinery where space is limited but radial load support is essential, such as in robotic arms and packaging equipment. Its thin-section design makes it ideal for applications requiring compact yet robust components.

Where Is K20013CP0 Bearing Used?
In automation systems, K20013CP0 Bearing ensures smooth movement in conveyor belts and rotary tables, thanks to its precise ABEC-1 tolerance. The brass cage adds durability, making it suitable for high-cycle operations.

Built for Heavy-Duty Use: K20013CP0 Bearing
K20013CP0 Bearing handles radial loads efficiently in construction equipment like cranes and lifts, where reliability is key. Its chrome steel construction ensures long-term performance even in demanding environments.

Medical vs Industrial: Where K20013CP0 Bearing Excels
While K20013CP0 Bearing is versatile enough for medical imaging devices, it truly shines in industrial settings like CNC machines. The metric sizing ensures compatibility with a wide range of equipment.

Practical Applications of K20013CP0 Bearing
K20013CP0 Bearing is a go-to choice for aerospace applications, particularly in control mechanisms and actuators. Its lightweight design and high load capacity make it a reliable option for precision movements.
