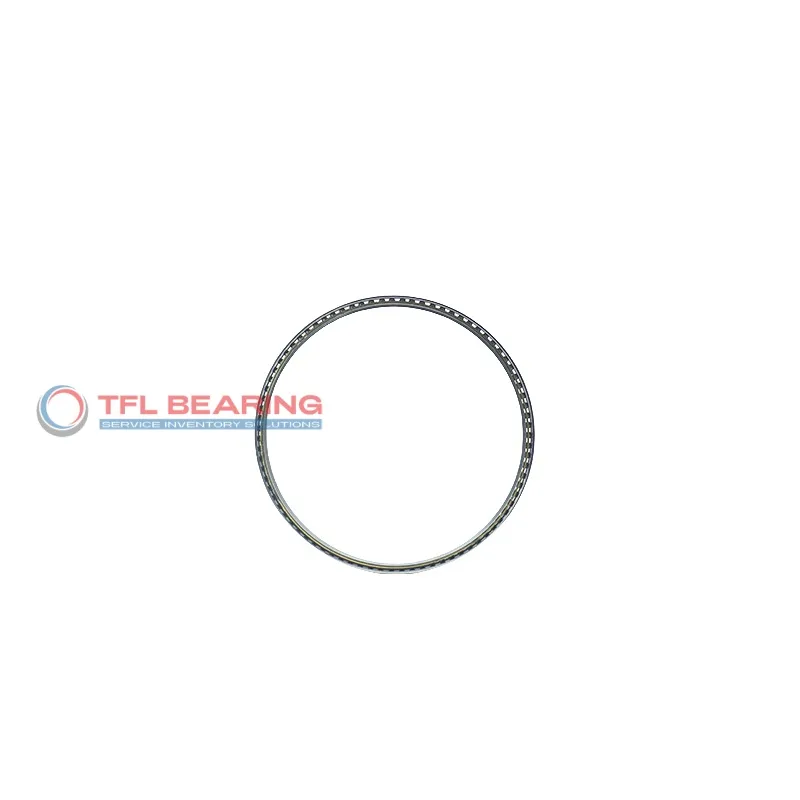

Constant Section (CS) Bearings K06008XP0

Constant Section (CS) Bearings K06008XP0

The K06008XP0 is a slim, metric ball bearing measuring 60mm by 76mm by 8mm, crafted from durable chrome steel with a brass cage. It handles radial loads up to 1115 lbf and thrust loads up to 1642 lbf, making it versatile for various applications.

Its open design allows easy lubrication, while the ABEC-1 tolerance ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, ideal for compact spaces where a thin section is needed. Suitable for robotics or precision machinery, it offers a good balance of strength and slim design.

Weighing just 0.09kg, it’s lightweight yet robust, and complies with RoHS standards for safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K06008XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 76 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 8 mm
  • Width Tolerance +.000 –.127mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 8 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 65.9 mm
  • Internal Diameter On Outer Ring (Small Side Face) 70.1 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1115 lbf
  • Static Radial Load 1446 lbf
  • Static Thrust Load 3618 lbf
  • Static Moment 49 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 127 lbf
  • Dynamic Thrust Load 1642 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.09 Kg
  • price（$） 54.88
Constant Section (CS) Bearings K06008XP0 dimension drawing
Download DWG Download PDF

Features

How Does K06008XP0 Bearing Handle Heavy Loads?

K06008XP0 Bearing features chrome steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 1115 lbf, ensuring reliable performance in demanding conditions.

The brass cage maintains ball alignment, reducing wear and extending the bearing’s lifespan.
With a static thrust load of 3618 lbf, it provides stability under varying load directions.

K06008XP0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its compact design, with a width of just 8 mm, makes it suitable for space-constrained applications.

Application

Common Applications of K06008XP0 Bearing
K06008XP0 Bearing is widely used in industrial equipment like robotic arms and CNC machines, where its slim design saves space without compromising performance. The four-point contact design handles both radial and axial loads efficiently.

Where Is K06008XP0 Bearing Used?
You’ll often find K06008XP0 Bearing in automation systems, particularly in precision gearboxes and rotary tables. Its brass cage ensures smooth operation even under moderate loads.

Built for Heavy-Duty Use: K06008XP0 Bearing
K06008XP0 Bearing works well in conveyor systems and packaging machines, thanks to its chrome steel construction. The ABEC-1 tolerance makes it reliable for consistent performance.

Automotive vs Aerospace: Applications of K06008XP0 Bearing
In automotive steering systems, K06008XP0 Bearing provides stable support for rotating components. For aerospace applications, its lightweight design is ideal for instrumentation panels.

Perfect Fit for Automation: K06008XP0 Bearing
K06008XP0 Bearing is a great choice for 3D printers and robotic actuators due to its low-profile design. The lubricated finish ensures long service life with minimal maintenance.
