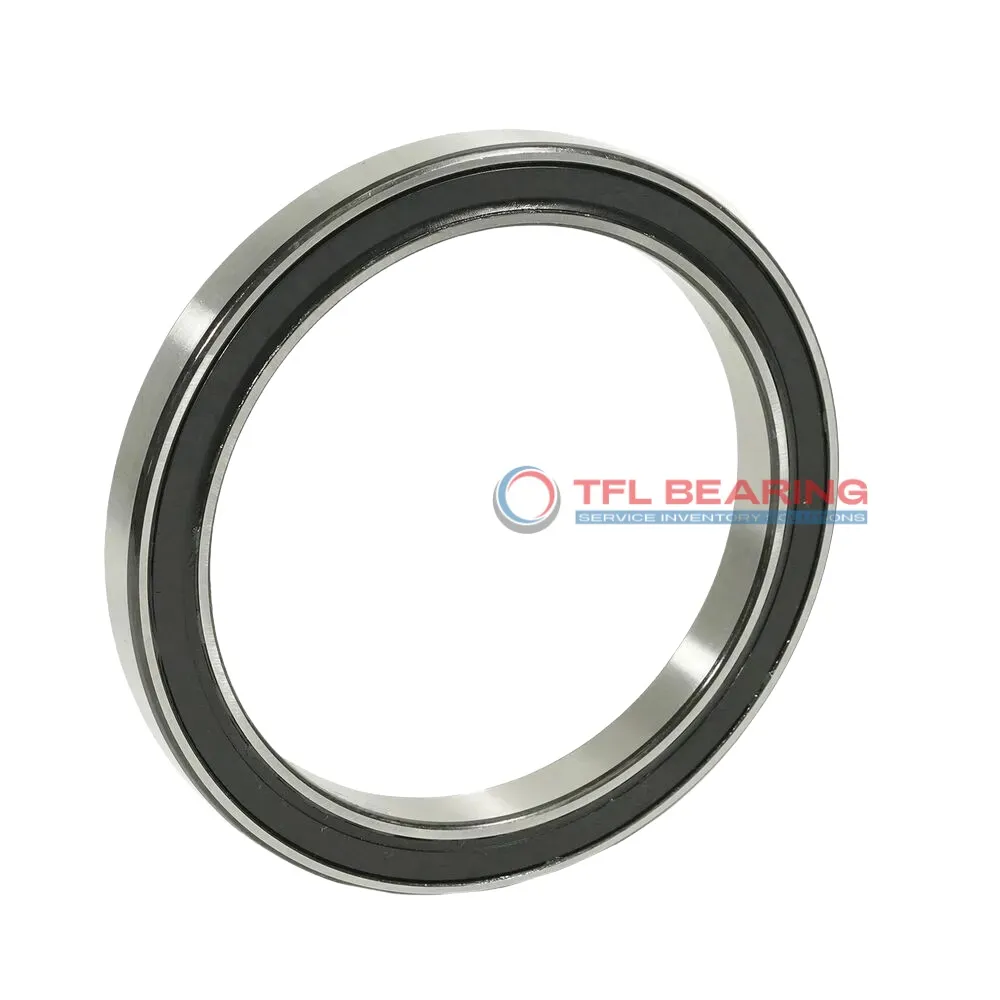

Constant Section (CS) Bearings JU120CP0

Brand: TFL Bearing Interchangeable: KAYDON JU120CP0 12" × 12.75" × 0.5" Inch Sealed
Part number: JU120CP0
Constant Section (CS) Bearings JU120CP0
In Stock
US$399.45 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia12"
Bore Dia Tolerance-0.0014"– 0"
Outer Dia12.75"
Outer Dia Tolerance-0.0014"– 0"
Width0.5"
Width Tolerance+.000 –.005"
External Diameter On Inner Ring12.150"
Internal Diameter On Outer Ring (Small Side Face)12.535"
Performance
Dynamic Radial Load1,974 lbf
Static Radial Load5,950 lbf
Temperature Range-30°C to 110 °C
Characteristics
System of MeasurementInch
Bearing TypeBall
For Load DirectionRadial
ConstructionSingle Row
Seal TypeSealed
Thin Section Bearings TypeReali-Slim Sealed Bearings
SeriesJU 1/2" x 3/8"
Tolerance ClassABEC-1
Radial Clearance0.0000 – 0.0005"
ISO Radial3,417 lbf
LubricationLubricated
Weight1.56 lbs
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
Dimension drawing · click to enlarge

Description

The JU120CP0 is a sealed, thin-section ball bearing with a 12″ bore and 12.75″ outer diameter, crafted from durable chrome steel. Its slim 0.5″ width makes it ideal for space-constrained applications while handling radial loads up to 1974 lbf.

The brass cage ensures smooth operation, and the sealed design keeps contaminants out, reducing maintenance needs. It operates reliably in temperatures from -30°C to 110°C, suitable for various industrial environments.

This bearing is interchangeable with KAYDON models, offering a practical replacement option. Perfect for machinery where a compact, lightweight design (1.56 lbs) is essential, such as robotics or precision equipment.

Compliant with RoHS standards, it comes pre-lubricated for immediate use, ensuring long service life with minimal upkeep.

Features

Performance Features of JU120CP0 Bearing

JU120CP0 Bearing is crafted with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1974 lbf, ensuring steady performance in various applications.
The brass cage maintains ball alignment, reducing friction and enhancing durability.
With a sealed design, it provides protection against dust and contaminants, extending its service life.

Application

Key Fields for JU120CP0 Bearing
JU120CP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin-section design saves space without compromising performance. The sealed construction keeps contaminants out, ensuring long service life.

Where Is JU120CP0 Bearing Used?
You’ll often find JU120CP0 Bearing in medical imaging devices, where its smooth operation and reliability are essential for accurate diagnostics. The brass cage adds durability, making it suitable for high-use medical environments.

Built for Heavy-Duty Use: JU120CP0 Bearing
In conveyor systems, JU120CP0 Bearing handles radial loads effortlessly, thanks to its chrome steel construction. Its inch sizing makes it a versatile choice for North American industrial equipment.

Automotive vs Aerospace: Applications of JU120CP0 Bearing
JU120CP0 Bearing works well in automotive steering systems, providing smooth rotation under radial loads. In aerospace, its lightweight design is ideal for instrumentation panels and control mechanisms.

Perfect Fit for Automation: JU120CP0 Bearing
JU120CP0 Bearing is a go-to for 3D printers, where its precision and thin profile ensure accurate movements. The ABEC-1 tolerance class guarantees consistent performance in repetitive tasks.
