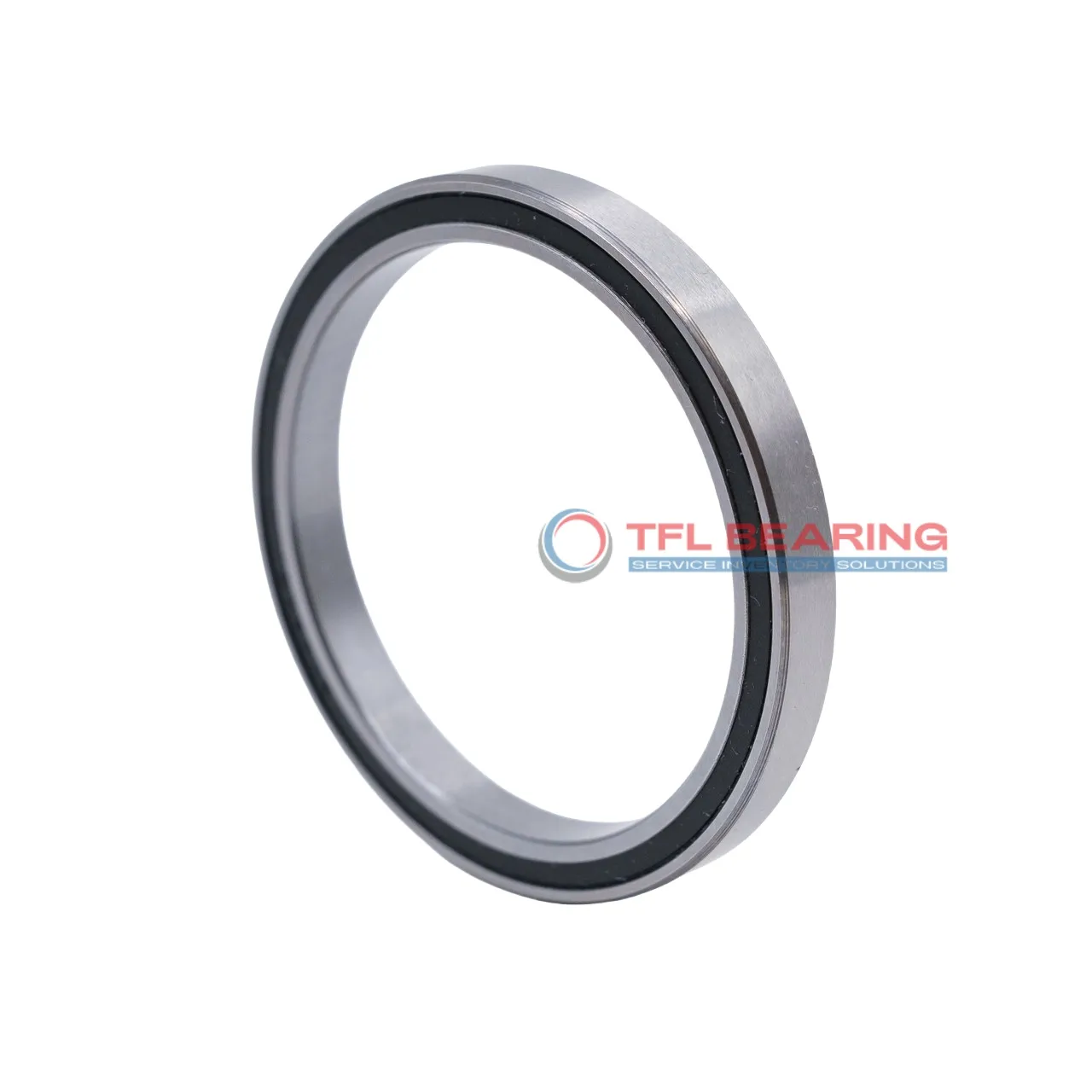

Constant Section (CS) Bearings JHA10CL0

Constant Section (CS) Bearings JHA10CL0

The JHA10CL0 is a slim, sealed ball bearing with a 1″ bore and 1.375″ outer diameter, designed for radial loads. Made from chrome steel with a nylon cage, it handles dynamic loads up to 188 lbf and fits tight spaces with its 0.25″ width.

Its sealed design keeps lubrication in and contaminants out, making it low-maintenance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various environments.

This model is interchangeable with KAYDON bearings, offering a reliable alternative. Ideal for compact applications like robotics or small machinery where space is limited.

Weighing just 0.035 lbs, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JHA10CL0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 1"
  • Bore Dia Tolerance -0.0004"– 0"
  • Outer Dia 1.375"
  • Outer Dia Tolerance -0.0005"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JHA 3/16" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 1.108"
  • Internal Diameter On Outer Ring (Small Side Face) 1.274"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 188 lbf
  • Static Radial Load 290 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 558 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.035 lbs
  • price（$） 37.64
Constant Section (CS) Bearings JHA10CL0 dimension drawing
Download DWG Download PDF

Features

Why Choose JHA10CL0 Bearing for Precision Tasks?

JHA10CL0 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability, while the nylon cage reduces friction and noise.
With a dynamic radial load capacity of 188 lbf, it handles precise radial loads effectively.
The ABEC-1 tolerance class guarantees reliable operation in applications requiring accuracy.

Application

Common Applications of JHA10CL0 Bearing
JHA10CL0 Bearing is widely used in industrial equipment, especially in compact machinery where space is limited, such as small conveyor systems and precision tools. Its thin section design ensures it fits seamlessly into tight spaces without compromising performance.

In the automotive sector, JHA10CL0 Bearing is often found in steering systems and small electric motors, where its sealed construction keeps contaminants out. The chrome steel rings provide durability, making it a reliable choice for long-term use.

For automation and robotics, JHA10CL0 Bearing supports smooth movement in robotic arms and 3D printers. The nylon cage reduces friction, ensuring quiet operation even during high-speed tasks.

In consumer electronics, JHA10CL0 Bearing is ideal for devices like printers and small fans, where its lightweight design and sealed features enhance reliability. The inch sizing makes it compatible with many North American products.
