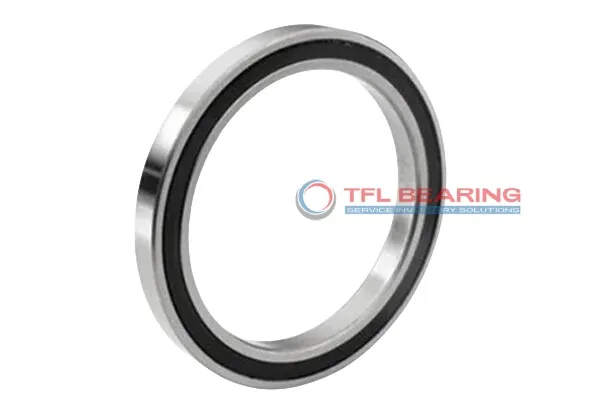

Constant Section (CS) Bearings JG110CP0

Constant Section (CS) Bearings JG110CP0

The JG110CP0 is a sealed radial ball bearing with an 11″ bore and 13″ outer diameter, featuring a slim 1″ width. Made from chrome steel with a brass cage, it handles radial loads up to 9648 lbf and is pre-lubricated for smooth operation.

Its sealed design keeps out contaminants, making it ideal for dusty or dirty environments. The bearing operates well in temperatures from -30°C to 110°C and meets RoHS standards.

With ABEC-1 tolerance and minimal radial clearance, it offers reliable performance without being overly precise. This model is interchangeable with KAYDON bearings, simplifying replacements.

Weighing 8.6 lbs, it’s suitable for applications like robotics or medical equipment where space is limited but durability is needed. The brass cage helps reduce friction for quieter operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JG110CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 11"
  • Outer Dia 13"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 11.554"
  • Internal Diameter On Outer Ring (Small Side Face) 12.602"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 9648 lbf
  • Static Radial Load 19700 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 13710 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 8.6 lbs
  • price（$） 329.53
Constant Section (CS) Bearings JG110CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of JG110CP0 Bearing

JG110CP0 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 9648 lbf, ensuring reliable performance in various applications.
The brass cage maintains ball alignment, reducing friction and enhancing durability.
With a sealed design, it protects against contaminants, making it suitable for harsh environments.

How Is JG110CP0 Bearing Engineered for Reliability?

JG110CP0 Bearing features a thin-section design, optimising space without compromising strength.
The ABEC-1 tolerance ensures consistent performance, while the sealed construction keeps lubrication intact.
Its chrome steel construction provides excellent wear resistance, extending the bearing’s service life.
Operating between -30°C to 110°C, it performs reliably in diverse temperature conditions.

Built for Reliability: JG110CP0 Bearing

JG110CP0 Bearing’s single-row construction simplifies installation while maintaining high load capacity.
The brass cage reduces vibration, ensuring smooth and quiet operation.
With a static radial load capacity of 19700 lbf, it handles heavy-duty applications with ease.
Its sealed design minimises maintenance, making it a cost-effective choice for long-term use.

Steel vs Ceramic Bearings: Strengths of JG110CP0 Bearing

JG110CP0 Bearing uses chrome steel for both rings and balls, balancing durability and affordability.
The brass cage enhances stability, making it suitable for precision tasks.
Its thin-section design saves space, ideal for compact machinery.
With a wide temperature range, it adapts to various industrial environments effortlessly.

Application

Key Fields for JG110CP0 Bearing
JG110CP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin-section design saves space without compromising strength. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

In aerospace applications, JG110CP0 Bearing provides reliable performance in control systems and actuation mechanisms. Its inch sizing makes it a straightforward replacement for many North American aircraft components.

For medical imaging devices, JG110CP0 Bearing’s brass cage and chrome steel rings offer smooth, quiet operation essential for sensitive equipment. The ABEC-1 tolerance ensures consistent accuracy in diagnostic machines.

Around the home, JG110CP0 Bearing can be found in high-end turntables and audio equipment, where its low friction maintains precise rotational control. The lubricated design reduces maintenance needs for hassle-free use.
