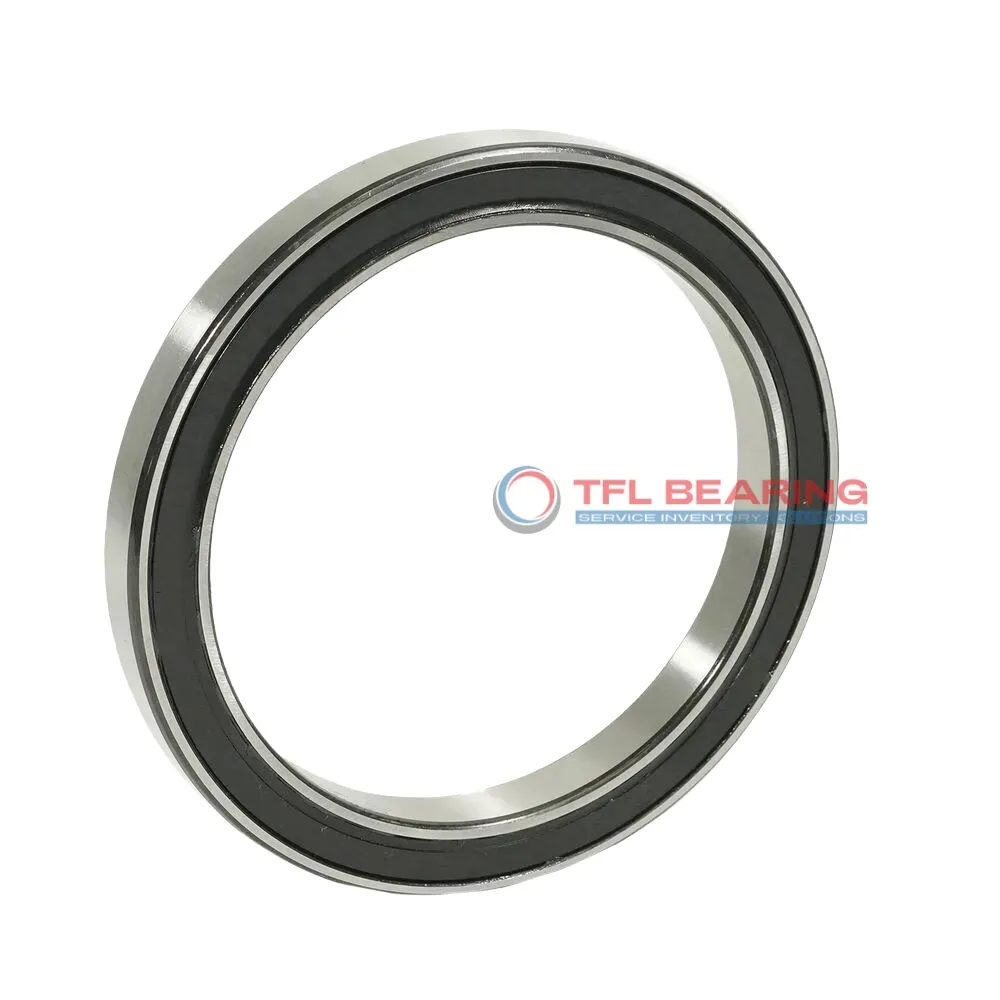

Constant Section (CS) Bearings JG080CP0

Constant Section (CS) Bearings JG080CP0

The JG080CP0 is a sealed, single-row ball bearing with an 8″ bore and 10″ outer diameter, designed for radial loads. Made from chrome steel with a brass cage, it offers a slim 1″ profile while handling dynamic loads up to 8265 lbf.

Its sealed construction keeps lubrication in and contaminants out, making it low-maintenance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial environments.

This model is interchangeable with KAYDON bearings, providing a reliable alternative. Ideal for applications requiring thin-section bearings, such as robotics or medical equipment where space is limited.

Weighing 6.5 lbs, it meets ABEC-1 tolerance standards and is RoHS compliant for safe use. The brass cage ensures quiet operation and long service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JG080CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 8"
  • Outer Dia 10"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 8.554"
  • Internal Diameter On Outer Ring (Small Side Face) 9.602"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 8265 lbf
  • Static Radial Load 14770 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 12266 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 6.5 lbs
  • price（$） 510
Constant Section (CS) Bearings JG080CP0 dimension drawing
Download DWG Download PDF

Features

Why Choose JG080CP0 Bearing for Precision Tasks?

JG080CP0 Bearing features a sealed construction, protecting it from dust and contaminants for consistent performance.
Its chrome steel rings and balls ensure durability, while the brass cage maintains alignment under radial loads.

With a dynamic radial load capacity of 8265 lbf, it handles demanding applications with ease.
The ABEC-1 tolerance class guarantees reliable precision in various industrial settings.

Designed for temperatures from -30°C to 110°C, JG080CP0 Bearing performs well in diverse environments.
Its compact 1″ width makes it ideal for space-constrained installations.

Application

Common Applications of JG080CP0 Bearing
JG080CP0 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery where its slim design saves space without compromising performance. The sealed construction helps keep contaminants out, ensuring longer service life.

In aerospace applications, JG080CP0 Bearing provides reliable radial load support in control systems and instrumentation panels. Its chrome steel rings and brass cage offer a good balance of strength and corrosion resistance.

For medical imaging devices, JG080CP0 Bearing’s consistent performance and low friction make it suitable for smooth, precise movements. The ABEC-1 tolerance ensures adequate precision for most diagnostic equipment.

You’ll also find JG080CP0 Bearing in packaging machinery, where its ability to handle moderate radial loads keeps production lines running efficiently. The inch sizing makes it a convenient choice for North American manufacturers.
