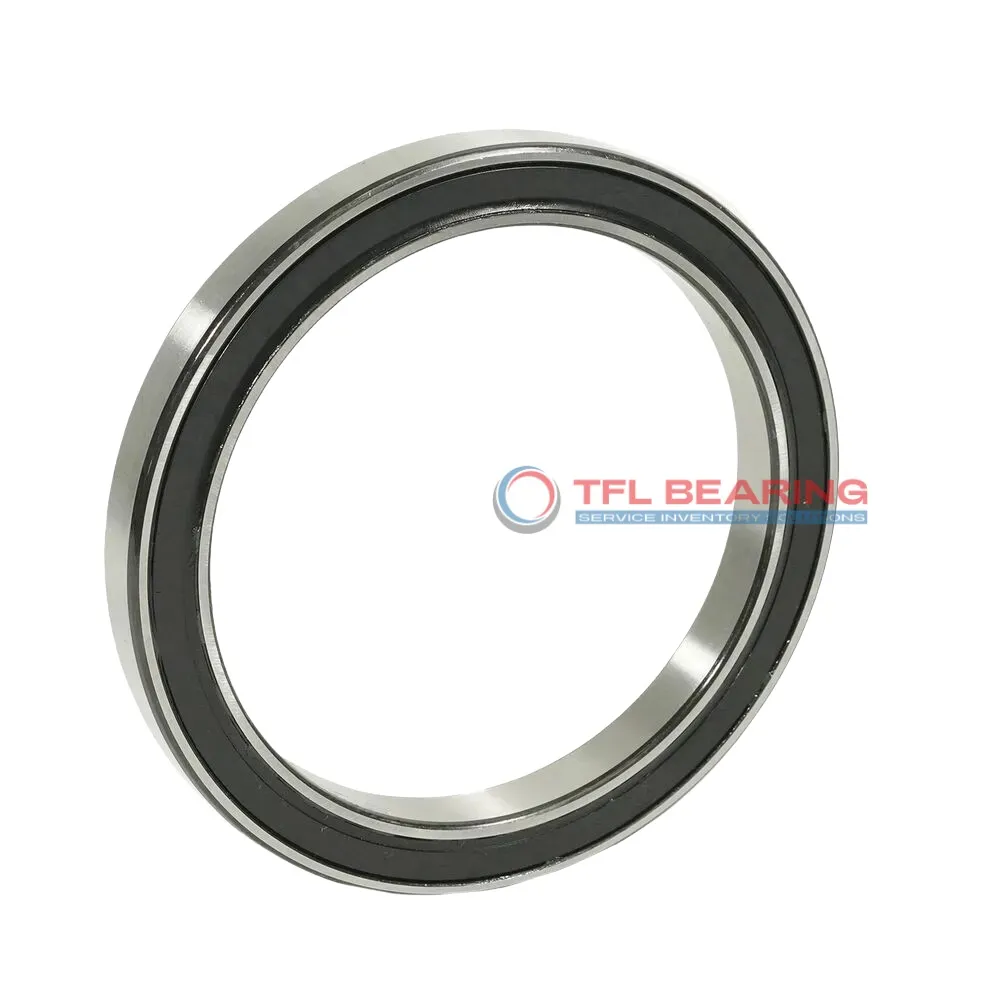

Constant Section (CS) Bearings JB065CP0

Constant Section (CS) Bearings JB065CP0

The JB065CP0 is a slim, sealed ball bearing with a 6.5″ bore and 7.125″ outer diameter, crafted from durable chrome steel. It handles radial loads up to 1082 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its brass cage and sealed design ensure long-lasting performance with minimal maintenance. The bearing is lubricated for easy use and complies with RoHS standards.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications requiring thin-section bearings, such as robotics or precision machinery.

Weighing just 0.47 lbs, it’s lightweight yet sturdy. Its ABEC-1 tolerance class ensures reliable performance for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JB065CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 6.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 7.125"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 6.699"
  • Internal Diameter On Outer Ring (Small Side Face) 6.925"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1082 lbf
  • Static Radial Load 2760 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 2168 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.47 lbs
  • price（$） 226.99
Constant Section (CS) Bearings JB065CP0 dimension drawing
Download DWG Download PDF

Features

How Does JB065CP0 Bearing Ensure Smooth Radial Load Handling?

JB065CP0 Bearing features a sealed design with chrome steel rings and balls, ideal for radial load applications.
Its dynamic radial load capacity of 1082 lbf ensures reliable performance in various conditions.
The brass cage maintains ball alignment, reducing friction and extending operational life.
With a temperature range of -30°C to 110°C, it performs well in diverse environments.

Application

Essential Roles of JB065CP0 Bearing
JB065CP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin-section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

Where Is JB065CP0 Bearing Used?
You’ll often find JB065CP0 Bearing in medical imaging devices, where its smooth rotation and low friction are vital for accurate scans. The brass cage adds durability, making it reliable for high-precision applications.

Built for Heavy-Duty Use: JB065CP0 Bearing
In packaging machinery, JB065CP0 Bearing handles radial loads effortlessly, thanks to its chrome steel construction. Its ABEC-1 tolerance ensures consistent performance even in high-speed production lines.

Automotive vs Aerospace: Applications of JB065CP0 Bearing
JB065CP0 Bearing fits well in automotive steering systems due to its compact size and sealed design. In aerospace, it’s used in instrumentation where reliability and lightweight matter.

Perfect Fit for Automation: JB065CP0 Bearing
JB065CP0 Bearing shines in 3D printers, providing smooth motion for print heads. Its inch sizing makes it easy to integrate into North American-designed equipment.
