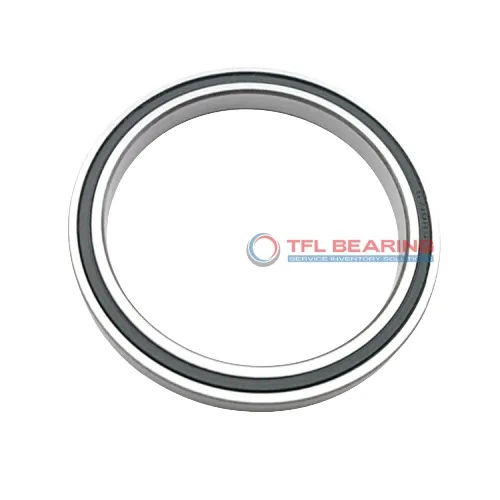

Constant Section (CS) Bearings JB040CP0

Constant Section (CS) Bearings JB040CP0

The JB040CP0 is a sealed radial ball bearing with a 4-inch bore and 4.625-inch outer diameter, designed for thin-section applications. Its compact width of 0.3125 inches makes it ideal for space-constrained setups.

Made from chrome steel with a brass cage, it handles radial loads up to 825 lbf and operates smoothly in temperatures from -30°C to 110°C. The sealed design keeps lubrication in and contaminants out.

This bearing is interchangeable with KAYDON models, offering a reliable replacement option. Its ABEC-1 tolerance ensures consistent performance for light to moderate loads.

Weighing just 0.3 lbs, it’s a lightweight choice for applications like robotics or precision machinery where slim profiles are needed. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JB040CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 4"
  • Bore Dia Tolerance -0.0008"– 0"
  • Outer Dia 4.625"
  • Outer Dia Tolerance -0.0006"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 4.199"
  • Internal Diameter On Outer Ring (Small Side Face) 4.425"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 825 lbf
  • Static Radial Load 1750 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1827 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.3 lbs
  • price（$） 93.83
Constant Section (CS) Bearings JB040CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of JB040CP0 Bearing

JB040CP0 Bearing is crafted with chrome steel rings and balls, offering reliable radial load capacity up to 825 lbf.
Its brass cage ensures smooth ball alignment, reducing friction and enhancing durability.
The sealed design protects against contaminants, making it suitable for various environments.
With a temperature range of -30°C to 110°C, it performs consistently in diverse conditions.

Application

Common Applications of JB040CP0 Bearing
JB040CP0 Bearing works well in industrial robots, especially where space is tight but smooth rotation is needed. Its thin section design fits neatly into compact machinery without sacrificing performance.

In automation setups, JB040CP0 Bearing keeps robotic arms moving smoothly, thanks to its sealed construction that keeps out dust. The brass cage adds durability, making it reliable for continuous operation.

For medical imaging devices, JB040CP0 Bearing offers quiet and precise movement, essential for accurate scans. The chrome steel rings ensure long-lasting performance even with frequent use.

Where Is JB040CP0 Bearing Used?
You’ll often find JB040CP0 Bearing in packaging machines, where its slim profile helps maintain efficiency. The ABEC-1 tolerance ensures consistent performance under radial loads.

Built for Heavy-Duty Use: JB040CP0 Bearing
JB040CP0 Bearing handles radial loads effortlessly in conveyor systems, making it a solid choice for logistics. Its sealed design protects against contaminants, extending its lifespan.

Light-Duty vs Heavy-Duty: Best Uses for JB040CP0 Bearing
In light-duty applications like printers, JB040CP0 Bearing provides smooth paper feed with minimal noise. For heavier tasks, it supports radial loads in industrial gearboxes reliably.
