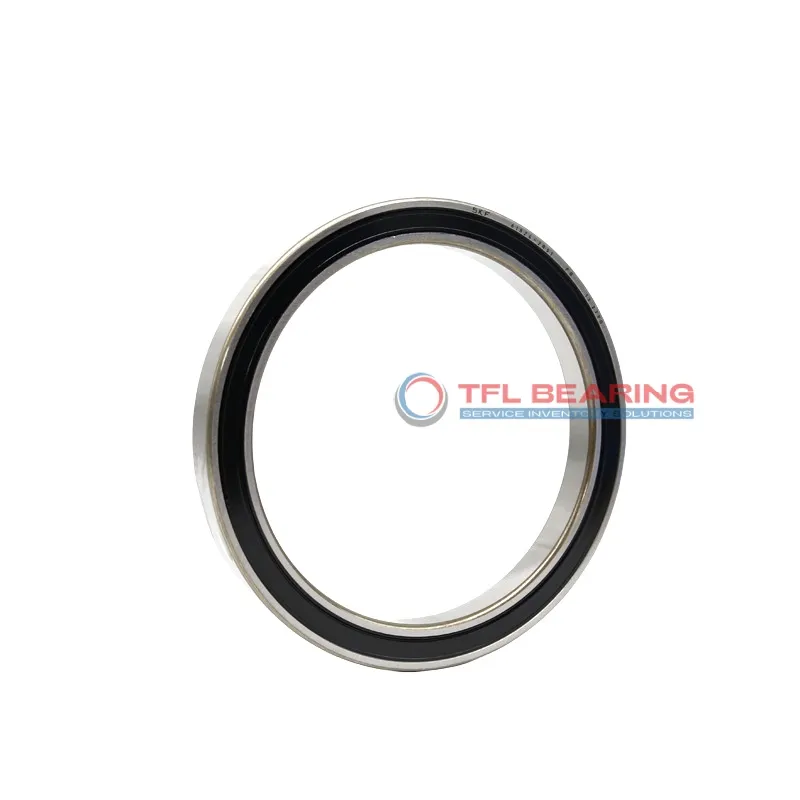

Constant Section (CS) Bearings JA025XP0

Constant Section (CS) Bearings JA025XP0

Why Choose JA025XP0 Bearing for Precision Tasks?

JA025XP0 Bearing features a four-point contact design, ensuring precise load distribution and smooth operation.
Its chrome steel construction provides durability, while the brass cage enhances stability under dynamic loads.

With a dynamic radial load capacity of 583 lbf, JA025XP0 Bearing handles demanding applications with ease.
The sealed design protects against contaminants, making it suitable for various environments.

JA025XP0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its compact 0.25″ width saves space without compromising performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JA025XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 2.5"
  • Bore Dia Tolerance -0.0006"– 0"
  • Outer Dia 3"
  • Outer Dia Tolerance -0.0005"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 2.648"
  • Internal Diameter On Outer Ring (Small Side Face) 2.856"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 583 lbf
  • Static Radial Load 830 lbf
  • Static Thrust Load 2090 lbf
  • Static Moment 1150 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 601 lbf
  • Dynamic Thrust Load 910 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.12 lbs
  • price（$） 56.25
Constant Section (CS) Bearings JA025XP0 dimension drawing
Download DWG Download PDF

Features

Industrial Uses of JA025XP0 Bearing
JA025XP0 Bearing is commonly used in robotics, especially in articulated arms where its thin section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

Where Is JA025XP0 Bearing Used?
You’ll find JA025XP0 Bearing in medical imaging devices, where its precise ABEC-1 tolerance helps maintain accuracy during scans. The brass cage reduces friction, making it ideal for smooth, quiet operation.

Built for Heavy-Duty Use: JA025XP0 Bearing
In conveyor systems, JA025XP0 Bearing handles radial and moment loads effortlessly, thanks to its four-point contact design. The chrome steel construction ensures durability even in high-temperature settings.

Automotive vs Aerospace: Applications of JA025XP0 Bearing
For automotive steering columns, JA025XP0 Bearing provides reliable performance with its dynamic thrust load capacity. In aerospace, its lightweight design makes it suitable for instrumentation panels.

Perfect Fit for Automation: JA025XP0 Bearing
JA025XP0 Bearing works well in 3D printers, where its thin profile and sealed design prevent dust buildup. The lubricated finish ensures smooth movement for precise printing operations.

Application

Industrial Uses of JA025XP0 Bearing
JA025XP0 Bearing is commonly used in robotics, especially in articulated arms where its thin section design saves space without compromising load capacity. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

Where Is JA025XP0 Bearing Used?
You’ll find JA025XP0 Bearing in medical imaging devices, where its precise ABEC-1 tolerance helps maintain accuracy during scans. The brass cage reduces friction, making it ideal for smooth, quiet operation.

Built for Heavy-Duty Use: JA025XP0 Bearing
In conveyor systems, JA025XP0 Bearing handles radial and moment loads effortlessly, thanks to its four-point contact design. The chrome steel construction ensures durability even in high-temperature settings.

Automotive vs Aerospace: Applications of JA025XP0 Bearing
For automotive steering columns, JA025XP0 Bearing provides reliable performance with its dynamic thrust load capacity. In aerospace, its lightweight design makes it suitable for instrumentation panels.

Perfect Fit for Automation: JA025XP0 Bearing
JA025XP0 Bearing works well in 3D printers, where its thin profile and sealed design prevent dust buildup. The lubricated finish ensures smooth movement for precise printing operations.
