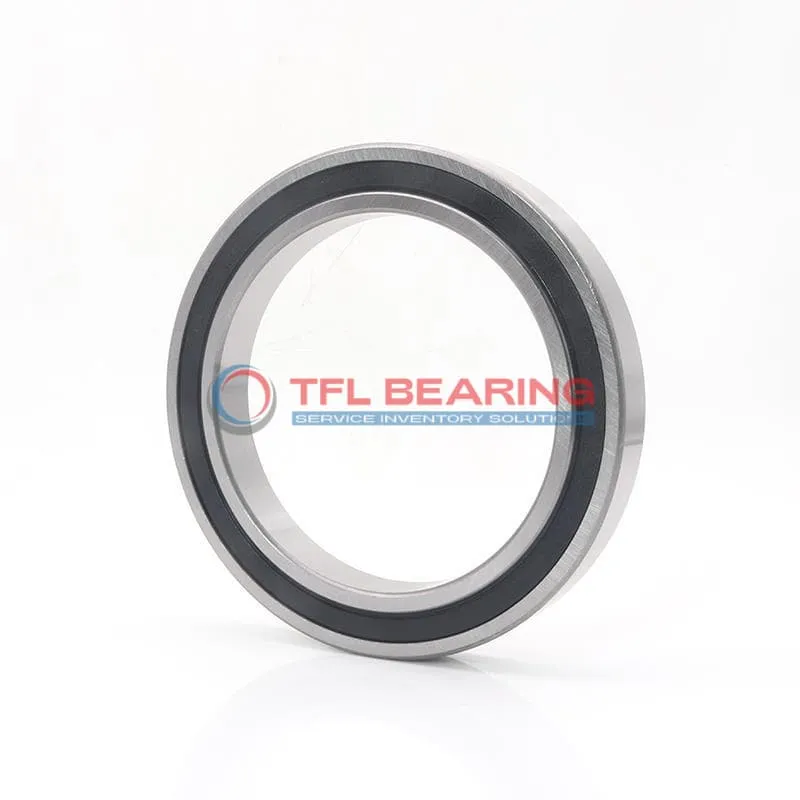

Constant Section (CS) Bearings J16008XP0

Brand: TFL Bearing Interchangeable: KAYDON J16008XP0 160 mm × 176 mm × 8 mm Metric Sealed
Part number: J16008XP0
Constant Section (CS) Bearings J16008XP0
In Stock
US$147.45 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia160 mm
Bore Dia Tolerance-0.025mm to 0
Outer Dia176 mm
Outer Dia Tolerance-0.025mm to 0
Width8 mm
Width Tolerance+.000 –.254mm
External Diameter On Inner Ring166.55 mm
Internal Diameter On Outer Ring (Small Side Face)169.42 mm
Performance
Dynamic Radial Load1,936 lbf
Static Radial Load3,673 lbf
Static Thrust Load9,184 lbf
Temperature Range-30°C to 110 °C
Moment Load Rating543 lbf
Dynamic Thrust Load3,055 lbf
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionFour Point Contact
ConstructionSingle Row
Seal TypeSealed
Thin Section Bearings TypeReali-Slim mm Metric Bearings
Series8 mm
Tolerance ClassABEC-1
Radial Clearance0.0000 – 0.0005"
Static Moment309 lbf
LubricationLubricated
Weight0.2 Kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
Dimension drawing · click to enlarge

Description

The J16008XP0 is a slim metric bearing with a compact design, measuring 160mm in bore diameter and 176mm in outer diameter, with a thin 8mm width. Made from chrome steel, it offers durability while keeping a lightweight profile at just 0.2kg.

This sealed bearing handles both radial and thrust loads, with a dynamic radial load capacity of 1936 lbf and static thrust load up to 9184 lbf. Its brass cage ensures smooth operation, suitable for speeds within ABEC-1 tolerance.

The four-point contact design provides stability, making it ideal for applications requiring precise movement, such as robotics or medical equipment. It operates efficiently in temperatures from -30°C to 110°C.

Interchangeable with KAYDON bearings, it’s a practical choice for replacements. Compliant with RoHS standards, it’s ready for use in various industrial settings.

Features

Performance Features of J16008XP0 Bearing

J16008XP0 Bearing is designed with chrome steel rings and balls, offering strong resistance to heavy loads.
Its dynamic radial load capacity reaches 1936 lbf, ensuring reliable performance in various applications.

The brass cage maintains ball alignment, reducing friction and extending service life.
With a width of just 8 mm, it is ideal for space-constrained installations.

J16008XP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its sealed design protects against contaminants, making it suitable for harsh environments.

Application

Industrial Uses of J16008XP0 Bearing
J16008XP0 Bearing is commonly used in robotics and automation systems, where its thin-section design saves space without compromising load capacity. The sealed construction helps keep contaminants out, ensuring smooth operation in dusty environments.

What Makes J16008XP0 Bearing a Preferred Choice?
With its brass cage and chrome steel components, J16008XP0 Bearing offers reliable performance in medical imaging devices. The precise tolerances make it ideal for applications where minimal vibration is crucial.

Built for Heavy-Duty Use: J16008XP0 Bearing
J16008XP0 Bearing handles both radial and thrust loads effectively, making it suitable for industrial gearboxes. Its compact width allows for easy integration into tight spaces within machinery.

Automotive vs Aerospace: Applications of J16008XP0 Bearing
In automotive steering systems, J16008XP0 Bearing provides smooth rotation under varying loads. For aerospace applications, its lightweight design and durability make it a practical choice for control mechanisms.

Perfect Fit for Automation: J16008XP0 Bearing
J16008XP0 Bearing works well in 3D printers and CNC machines, where precision movement is essential. The lubricated design ensures long service life even with continuous operation.
