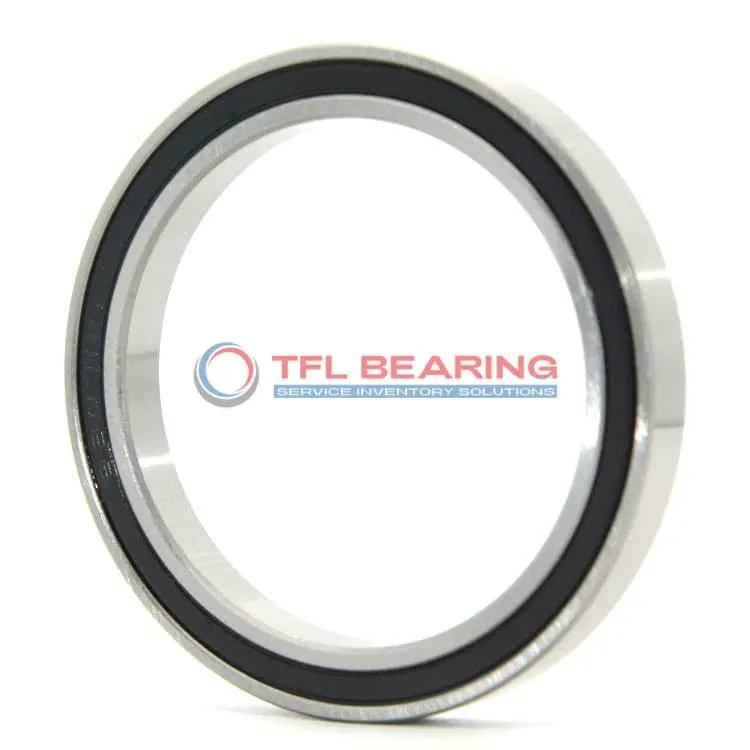

Constant Section (CS) Bearings J11008XP0

Constant Section (CS) Bearings J11008XP0

The J11008XP0 is a slim, sealed ball bearing with a 110mm bore and 126mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1559 lbf and thrust loads up to 6400 lbf, making it versatile for various applications.
Its brass cage ensures smooth operation, while the sealed design keeps contaminants out for longer life. The bearing works reliably in temperatures from -30°C to 110°C.
With a slim 8mm width, it fits neatly into compact spaces without sacrificing strength. Ideal for robotics or precision machinery where space is limited but performance is key.
Weighing just 0.15kg, it’s lightweight yet robust, and compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number J11008XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 126 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 8 mm
  • Width Tolerance +.000 –.127mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 8 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 116.55 mm
  • Internal Diameter On Outer Ring (Small Side Face) 119.42 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1559 lbf
  • Static Radial Load 2562 lbf
  • Static Thrust Load 6400 lbf
  • Static Moment 151 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 307 lbf
  • Dynamic Thrust Load 2403 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.15 Kg
  • price（$） 101.65
Constant Section (CS) Bearings J11008XP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of J11008XP0 Bearing

J11008XP0 Bearing is crafted with chrome steel rings and balls, offering strong resistance to radial and thrust loads.
Its dynamic radial load capacity reaches 1559 lbf, making it suitable for various industrial applications.

The brass cage ensures smooth operation by keeping the balls properly aligned.
With a width of just 8 mm, J11008XP0 Bearing is ideal for space-constrained installations.

J11008XP0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its sealed design helps protect against contaminants, ensuring longer service life.

Application

Essential Roles of J11008XP0 Bearing
J11008XP0 Bearing is commonly used in robotics, especially in articulated arms where its slim profile and four-point contact design provide smooth rotation. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

Where Is J11008XP0 Bearing Used?
In automation systems, J11008XP0 Bearing fits perfectly into rotary tables and indexing units, thanks to its precise metric dimensions. The brass cage reduces friction, making it ideal for high-accuracy applications.

Built for Heavy-Duty Use: J11008XP0 Bearing
J11008XP0 Bearing handles moment loads well in packaging machinery, where its chrome steel rings withstand constant stress. Its ABEC-1 tolerance ensures reliable performance without unnecessary complexity.

Medical vs Industrial: Where J11008XP0 Bearing Excels
J11008XP0 Bearing works equally well in medical scanners and industrial gearboxes, offering consistent thrust capacity. The lubricated design minimises maintenance, a plus in hard-to-access equipment.

How Does J11008XP0 Bearing Support High-Speed Operations?
J11008XP0 Bearing’s balanced construction allows stable rotation in CNC spindles up to moderate speeds. The thin section saves space while maintaining load ratings, useful in compact designs.
