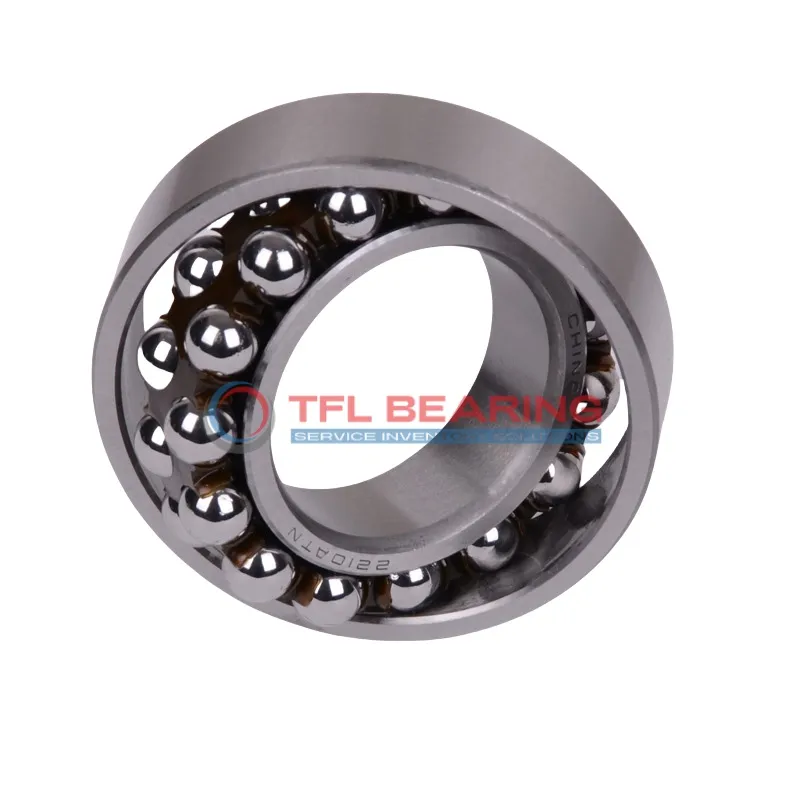

Self Aligning Ball Bearings 1307 EKTN9/C3

Self Aligning Ball Bearings 1307 EKTN9/C3

The 1307 EKTN9/C3 is a self-aligning ball bearing with a 35mm bore and 80mm outer diameter, designed for radial loads. Its double-row construction and chrome steel components ensure durability and smooth operation.

This bearing handles dynamic radial loads up to 5962 lbf and spins at speeds up to 11000 RPM. The nylon cage reduces friction and noise, making it quieter in operation.

Its open design allows for easy lubrication, and the C3 radial clearance accommodates slight misalignments. The bearing works well in temperatures from -30°C to 110°C.

Ideal for applications like conveyor systems or agricultural machinery where alignment flexibility is needed. Weighing 0.51kg, it’s a sturdy yet manageable size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1307 EKTN9/C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 51.55 mm
  • Internal Diameter On Outer Ring 67.5 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5962 lbf
  • Static Radial Load 1912 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.51 kg
  • Price（$） 38.7
Self Aligning Ball Bearings 1307 EKTN9/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 1307 EKTN9/C3 Bearing for Precision Tasks?

1307 EKTN9/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 5962 lbf, making it suitable for demanding applications.

The nylon cage reduces friction and noise, enhancing smooth operation.

With a maximum speed of 11,000 rpm, it balances performance and durability.

The C3 radial clearance allows for thermal expansion, maintaining reliability in varying temperatures.

Application

Industrial Uses of 1307 EKTN9/C3 Bearing
1307 EKTN9/C3 Bearing is commonly used in industrial machinery, especially in applications where misalignment compensation is needed, like conveyor systems and fans. Its double-row design helps distribute loads evenly, reducing wear over time.

What Makes 1307 EKTN9/C3 Bearing a Preferred Choice?
In automotive applications, 1307 EKTN9/C3 Bearing fits well in gearboxes and wheel hubs, thanks to its tapered bore for secure mounting. The radial load capacity ensures smooth performance even under stress.

Perfect Fit for Automation: 1307 EKTN9/C3 Bearing
For robotic arms and automated systems, 1307 EKTN9/C3 Bearing offers reliable movement with its self-aligning feature. The nylon cage reduces friction, making it suitable for high-speed operations.

Medical vs Industrial: Where 1307 EKTN9/C3 Bearing Excels
In medical devices like imaging equipment, 1307 EKTN9/C3 Bearing provides quiet and precise rotation. Its chrome steel construction ensures durability in both medical and industrial environments.
