Constant Section (CS) Bearings J09008XP0

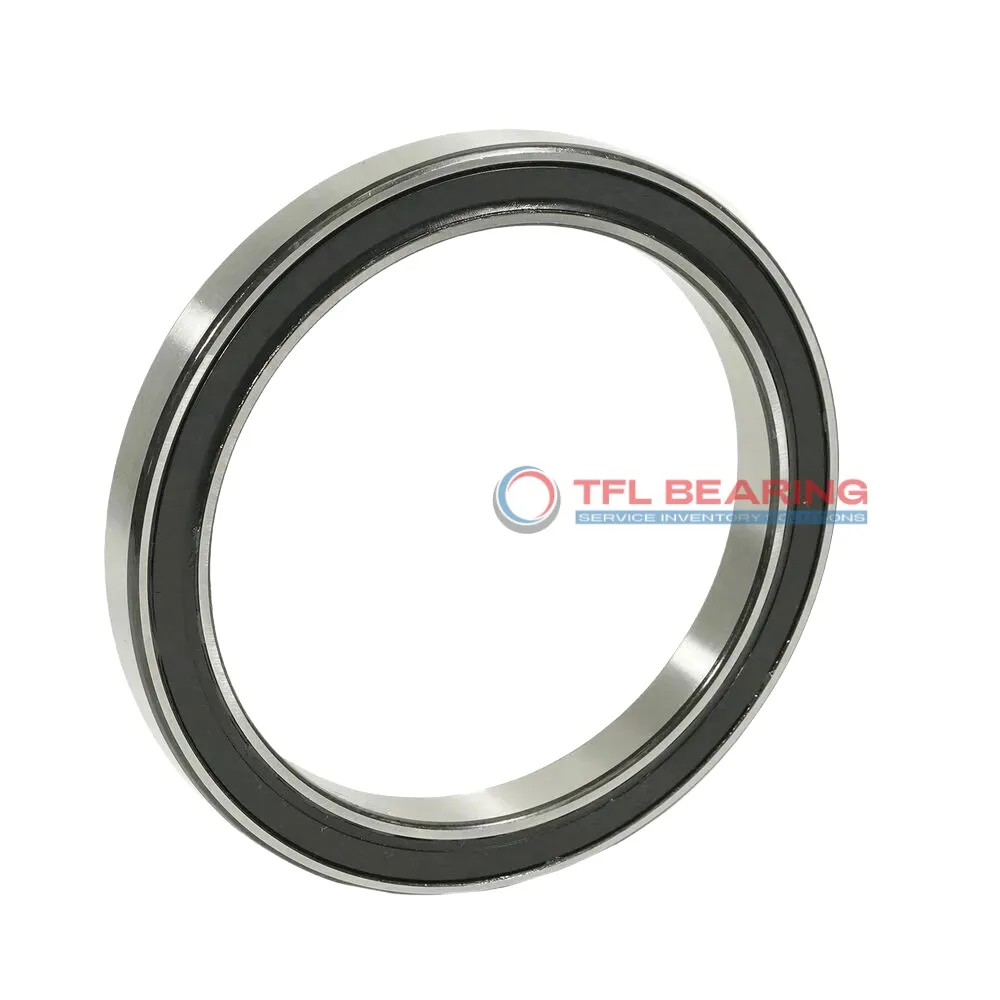

Constant Section (CS) Bearings J09008XP0

The J09008XP0 is a slim metric bearing with a 90mm bore and 106mm outer diameter, crafted from durable chrome steel. Its compact 8mm width makes it ideal for space-constrained applications.

This sealed bearing handles radial loads up to 1391 lbf and thrust loads up to 5289 lbf, with smooth operation in temperatures from -30°C to 110°C. The brass cage ensures reliable performance under various load conditions.

Its four-point contact design provides stability, while the ABEC-1 tolerance offers consistent precision. The bearing comes pre-lubricated for easy installation and maintenance.

Perfect for robotics or precision machinery where slim profiles are needed. Weighing just 0.13kg, it’s lightweight yet robust. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number J09008XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 106 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 8 mm
  • Width Tolerance +.000 –.127mm
  • Thin Section Bearings Type Reali-Slim mm Metric Bearings
  • Series 8 mm
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 96.55 mm
  • Internal Diameter On Outer Ring (Small Side Face) 99.42 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1391 lbf
  • Static Radial Load 2114 lbf
  • Static Thrust Load 5289 lbf
  • Static Moment 104 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 228 lbf
  • Dynamic Thrust Load 2114 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.13 Kg
  • price（$） 73.72
Constant Section (CS) Bearings J09008XP0 dimension drawing
Download DWG Download PDF

Features

Built for Reliability: J09008XP0 Bearing

J09008XP0 Bearing features a four-point contact design, ensuring stability under both radial and thrust loads.
Its chrome steel construction provides durability, while the brass cage maintains smooth operation.
With a dynamic radial load capacity of 1391 lbf, it handles demanding applications with ease.
The sealed design protects against contaminants, extending its service life in various environments.

Application

Essential Roles of J09008XP0 Bearing
J09008XP0 Bearing is commonly used in robotics, especially in articulated arms where its slim profile and four-point contact design provide smooth rotation. The sealed construction keeps contaminants out, ensuring longevity in dusty environments.

Where Is J09008XP0 Bearing Used?
You’ll often find J09008XP0 Bearing in medical imaging devices, where its precision and low friction are key. The brass cage adds durability, making it reliable for frequent use in diagnostic equipment.

Built for Heavy-Duty Use: J09008XP0 Bearing
J09008XP0 Bearing handles high static thrust loads, making it ideal for industrial turntables and indexing tables. Its chrome steel rings and balls offer consistent performance under heavy loads.

Automotive vs Aerospace: Applications of J09008XP0 Bearing
In automotive steering systems, J09008XP0 Bearing ensures precise control, while in aerospace, its lightweight design suits actuator mechanisms. The metric sizing fits seamlessly into both industries.

Perfect Fit for Automation: J09008XP0 Bearing
J09008XP0 Bearing works well in automated conveyor systems, where its thin section saves space without sacrificing load capacity. The ABEC-1 tolerance ensures reliable performance in repetitive tasks.
