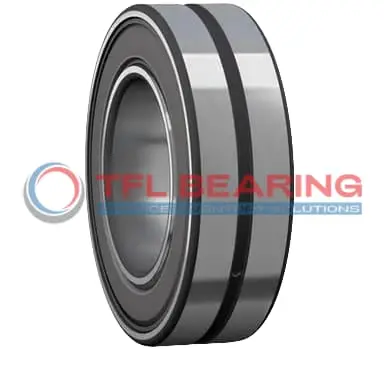

BS2-6020 CE Double Row Spherical Roller Bearing

BS2-6020 CE Double Row Spherical Roller Bearing

The BS2-6020 CE is a double-row spherical roller bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 11218 lbf and operates smoothly at speeds up to 6300 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or construction equipment where combined loads are common.

Weighing just 0.26kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-6020 CE
  • Brand TFL
  • Interchangeable SKF
  • Size 25 x 52 x 23 mm
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 30 mm
  • Shoulder/Recess Dia Of Outer Ring 46.6 mm
  • Width Of Lubrication Groove 4.4 mm
  • Diameter Of Lubrication Hole 2 mm
  • Chamfer Dimension min.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 11218 lbf
  • Static Radial Load 9892 lbf
  • Max Speed 6300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.26 kg
  • Price （US$） 206.5

Features

How Does BS2-6020 CE Bearing Handle Combined Loads?

BS2-6020 CE Bearing features a double-row spherical roller design, ideal for handling both radial and axial loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 11218 lbf.

The lubrication groove and holes in BS2-6020 CE Bearing facilitate smooth operation, even at high speeds up to 6300 rpm.
This bearing operates efficiently in temperatures ranging from -30° to 200°C, making it versatile for various environments.

Built for Reliability: BS2-6020 CE Bearing

BS2-6020 CE Bearing’s spherical roller design accommodates misalignment, ensuring consistent performance under stress.
The steel cage maintains roller alignment, reducing friction and extending the bearing’s lifespan.

With a static radial load capacity of 9892 lbf, BS2-6020 CE Bearing is built to withstand heavy-duty applications.
Its open design allows for easy lubrication, keeping maintenance straightforward and cost-effective.

Performance Features of BS2-6020 CE Bearing

BS2-6020 CE Bearing’s double-row construction enhances load distribution, improving stability under combined loads.
The precision-machined chrome steel rollers minimise wear, ensuring smooth and quiet operation.

Operating within a wide temperature range, BS2-6020 CE Bearing performs reliably in both hot and cold conditions.
Its CN radial clearance provides optimal performance, balancing flexibility and precision.

Application

Industrial Uses of BS2-6020 CE Bearing
BS2-6020 CE Bearing is commonly used in heavy machinery like conveyor systems and crushers, where its double-row spherical design handles misalignment with ease. The chrome steel construction ensures durability even in demanding industrial environments.

Where Is BS2-6020 CE Bearing Used?
You’ll often find BS2-6020 CE Bearing in automotive applications, particularly in gearboxes and axles, where its combined load capacity is a real advantage. Its metric sizing makes it a versatile fit for various vehicle models.

Built for Heavy-Duty Use: BS2-6020 CE Bearing
BS2-6020 CE Bearing excels in construction equipment, supporting high radial loads in rough conditions. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of BS2-6020 CE Bearing
In automotive settings, BS2-6020 CE Bearing is ideal for transmissions, while in aerospace, it’s used in auxiliary systems where reliability is key. Its temperature range suits both environments well.

Essential Roles of BS2-6020 CE Bearing
BS2-6020 CE Bearing plays a crucial part in mining equipment, where its spherical rollers manage heavy loads and slight misalignments. The steel cage adds extra strength for long-term use.
